The ARA-P12 is a top class active 2-way loudspeaker, equipped with an extremely powerful DSP with 96kHz and monitorable and controllable via an IP-based network and our multiplatform software (Mac/PC) ALMA™.

The configuration includes a powerful 12" neodymium bass-midrange driver with 3" voice coil and a 3" neodymium pressure chamber driver with titanium cone acting on a rotatable tweeter horn made of die-cast aluminum with a nom. Two different horn versions are available, both rotable, with a nominal dispersion angle of 70°x40° or 110°x50°.

The integrated bi-amp class D power amplifier with switching power supply including PFC provides an output of 1200 Watts/cont. (2400W/peak) and realizes a, for it’s class exceptionally high sound pressure level of 140dB . Convection cooling without a fan also enables the use in sensitive applications.

The powerful DSP with the highest audio quality offers comprehensive signal processing, which can be controlled via the rear OLED display or via an IP-based network and our multiplatform software (Mac/PC) ALMA™. In addition to internal processes such as X-over, FIR filtering and Peak and RMS limiters, the user has extensive processing options at his disposal, such as 10 individual + 10 group EQ filters, adjustable high-pass filter, phase inversion and delay up to 823ms (283m).

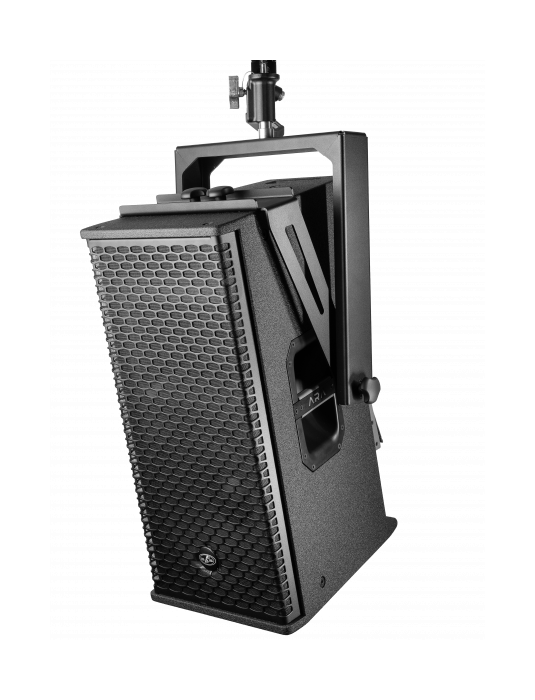

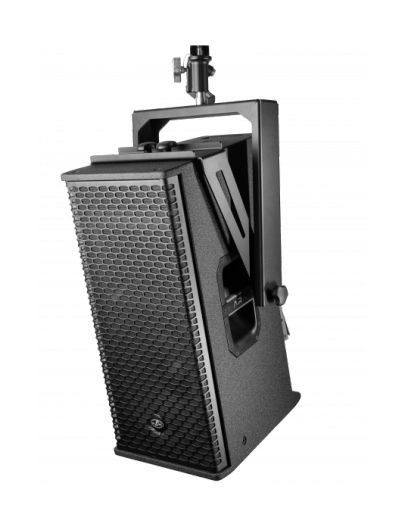

The concept and in particular the use of the same M78N compression driver as in the line arrays of the ARA series, ensure easy integration of the P12 as a support loudspeaker within a larger system. The cabinet is made of birch plywood and coated with our robust ISOflex™ PU coating. The P12 equipped with Neutrik PowerCon True1 mains connections including cover flaps and weather protection for the connection panel and complies with the IP43 standard. In addition to integrated M10 points for direct mounting and the integrated pole mount, a selection of mounting accessories is available for horizontal or vertical mounting.
