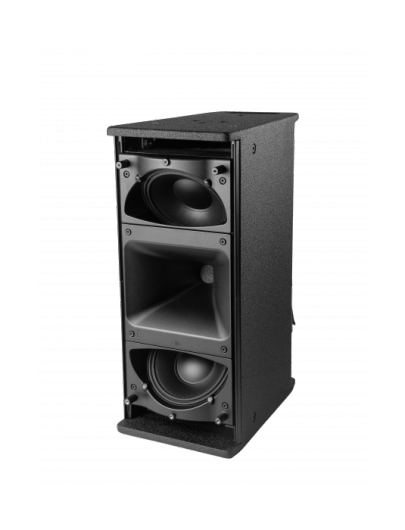

The new EVENT-28A is an active 2x8"/1.75" line array and sets new standards in its class in terms of reproduction and dispersion quality.

Equipped with a bi-amp class D power amplifier incl. wide-range switching power supply with PFC and 650 watts/cont. (1300 watts/peak), it achieves a SPL of up to 133dB, with a frequency response of 70Hz to 20kHz and a nom. dispersion of 100°x10°.

With its ultra-low weight of just 20kg, the EVENT-28A is particularly recommended for local rentals and budget-oriented fixed installations.

The integrated 24-bit DSP incl. DAS Control™ enables the highest audio quality incl. FIR filtering and the simplest and secure handling. The integrated FSS™ rigging hardware enables simple, powerless installation and flown systems with up to 20 units.

The EVENT-118A is the complementary active, flyable subwoofer, equipped with an 18" neodymium woofer in bass-reflex design. Equipped with a Class D power amplifier incl. wide-range switching power supply with PFC and 1000 watts/cont. (2000 watts/peak), it achieves a sound pressure level of up to 134 dB with a frequency response of 35-125 Hz. The integrated rigging hardware enables pin-to-pin setups with the EVENT-28A in stacked or flown mode.

The EVENT-28A incl. EVENT-118A will be demonstrated several times a day on our outdoor stage in the area of the Live Sound Arena in the outdoor area F12!

MARA is the latest addition to the revolutionary ARA series.

Designed for medium to large-scale events, MARA combines a cardioid and symmetrical design with an output of 4200 W RMS, achieving a maximum sound pressure level (SPL) of 148 dB. The specially designed components include two 10-inch woofers, two 8-inch midrange speakers and two 6-inch drivers in a cardioid configuration. High frequencies are covered by two M-78N compression drivers with 3-inch voice coils. The system is also available in two horizontal dispersion angles – 80º and 100º – to suit a wide range of acoustic requirements and event types.

The technology behind MARA includes a 6-channel Class D amplifier with a switch-mode power supply and Power Factor Correction (PFC), which guarantees stable and efficient performance under different voltage conditions. The cardioid design provides rear attenuation of up to -12 dB in the frequency range of 80 Hz to 200 Hz, enabling precise sound control and minimizing unwanted emissions on stage.

DAS Audio offers a comprehensive range of passive speaker systems, especially for permanently installed systems. From small systems for restaurants or conference rooms, to complex systems for announcements and background music, to stadiums, sports venues and weatherproof systems, even sea-weather resistant loudspeaker systems for cruise ships.

INTEGRAL is a series of DSP and matrix components as well as state-of-the-art Class-D power amplifiers that guarantee optimum acoustic performance and a high level of operational reliability thanks to the on-board dedicated DSP presets per loudspeaker model. Operation via our ALMA control software offers the integrator simple implementation and extensive functions.

Class D power amplifiers offer immense advantages in terms of reliability in fixed installations: the high efficiency and low waste heat place considerably less strain on the electronic components and the risk of failure due to dust contamination is extremely reduced thanks to the significantly lower cooling requirements. Another advantage of INTEGRAL power amplifiers: With two channels bridged, you can drive 70 or 100V lines directly without an additional transformer.

The control of the INTEGRAL systems via OSC, either via a tablet, smartphone or the optional WP-3 wall touch panel, also offers convenient and easy handling by the end user.

The ARA-P12 is a top class active 2-way loudspeaker, equipped with an extremely powerful DSP with 96kHz and monitorable and controllable via an IP-based network and our multiplatform software (Mac/PC) ALMA™.

The configuration includes a powerful 12" neodymium bass-midrange driver with 3" voice coil and a 3" neodymium pressure chamber driver with titanium cone acting on a rotatable tweeter horn made of die-cast aluminum with a nom. Two different horn versions are available, both rotable, with a nominal dispersion angle of 70°x40° or 110°x50°.

The integrated bi-amp class D power amplifier with switching power supply including PFC provides an output of 1200 Watts/cont. (2400W/peak) and realizes a, for it’s class exceptionally high sound pressure level of 140dB . Convection cooling without a fan also enables the use in sensitive applications.

The powerful DSP with the highest audio quality offers comprehensive signal processing, which can be controlled via the rear OLED display or via an IP-based network and our multiplatform software (Mac/PC) ALMA™. In addition to internal processes such as X-over, FIR filtering and Peak and RMS limiters, the user has extensive processing options at his disposal, such as 10 individual + 10 group EQ filters, adjustable high-pass filter, phase inversion and delay up to 823ms (283m).

The concept and in particular the use of the same M78N compression driver as in the line arrays of the ARA series, ensure easy integration of the P12 as a support loudspeaker within a larger system. The cabinet is made of birch plywood and coated with our robust ISOflex™ PU coating. The P12 equipped with Neutrik PowerCon True1 mains connections including cover flaps and weather protection for the connection panel and complies with the IP43 standard. In addition to integrated M10 points for direct mounting and the integrated pole mount, a selection of mounting accessories is available for horizontal or vertical mounting.
