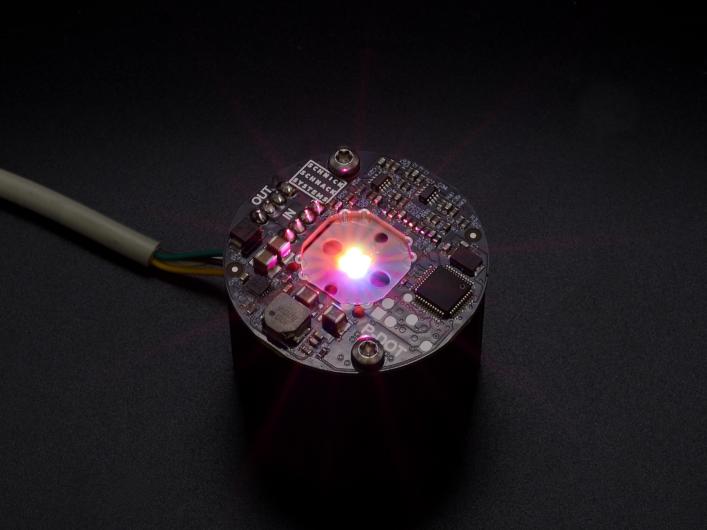

For special applications like enlightening acrylic rods, or creating hard shadows and several others, there is a need for powerful LEDs. The new LED P-Dot by Schnick-Schnack-Systems can be easily controlled for example with RGB-video signals. Its 4 LEDs, red, green, blue and white, have been picked with meticulous discrimination to achieve lighting results of highest quality.

Features:

• Advanced dimming and color-management algorithms
• Dimming ratio > 1:10.000 resulting in dimming starting below 0,01%
• More than 16 Bit internal dimming resolution per channel
• Advanced RGB to RGBW color space conversion based on the individually measured physical characteristics of each LED
• Typically <3sdcm color drift a the white point
• CRI Ra typically about 90 at warm white
• Ultra-blue LED for intense and saturated colors
• Available with 6500K or 3000K white points as standard, other color temperature are easily realized on request.
• No flicker in eyes or cameras because of advanced modulation >10kHz (at intensities >1%)
• Simple daisy chain wiring system allowing up to 12 fixtures per chain
• Build in heatsink, with two sliding channels for M3 nuts

Luminous flux: 180lm @6500K, 120lm @3000K, Red: 28lm, Green 200lm, Blue: 21lm
Beam Angle: 120°
weight: 90g
