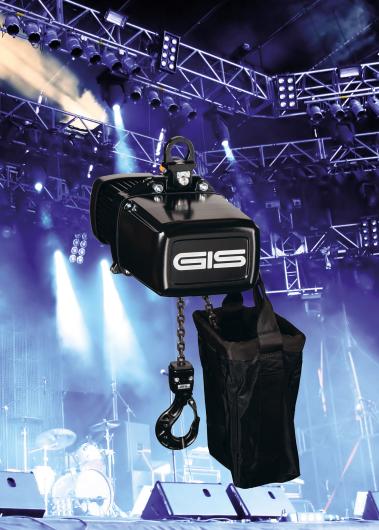

The GIS motor in C1 version is an electric chain hoist which is specifically developped, rated and designed for holding and moving loads above people. It is light and compact in design and thus perfectly suited for mobile use and responds to the requirements in accordance with EN14492-2, IGVW SQP2:2024 and EN17206. Due to the modular design of the GIS chain hoist, the path and load measurement can be implemented in a simple way. Encoders for path measurement can be mounted on the chain wheel or on the rotor shaft. Due to the high power reserve of the motors, the chain hoists have an excellent synchronisation during group movements. GIS motors in C1 version also cover high lifting speeds up to 32 m/min. (50 Hz). The maximum lifting capacity in single fall execution is 2000 kg at a chain safety factor of minimum 10:1.

All LP and LPL motors are equipped with a 3-stage self-contained gear. The helical gearing with geometric optimisation and the chain wheel with minimum 5 pockets ensure extremely quiet running. This allows the quiet handling of loads during events. Thanks to the sound absorption of the transmission the sound pressure level of the LP500 is only 60 dB

Thanks to the modular design, the LP and LPL motors can not only be assembled and disassembled very quickly, but can also be excellently equipped for country- and application-specific requirements. We would be happy to demonstrate this to you using a model of the LPL1000 C1, which is equipped with a path and load measuring system and also has low-noise theatre brakes and a limit stop for several positions.
