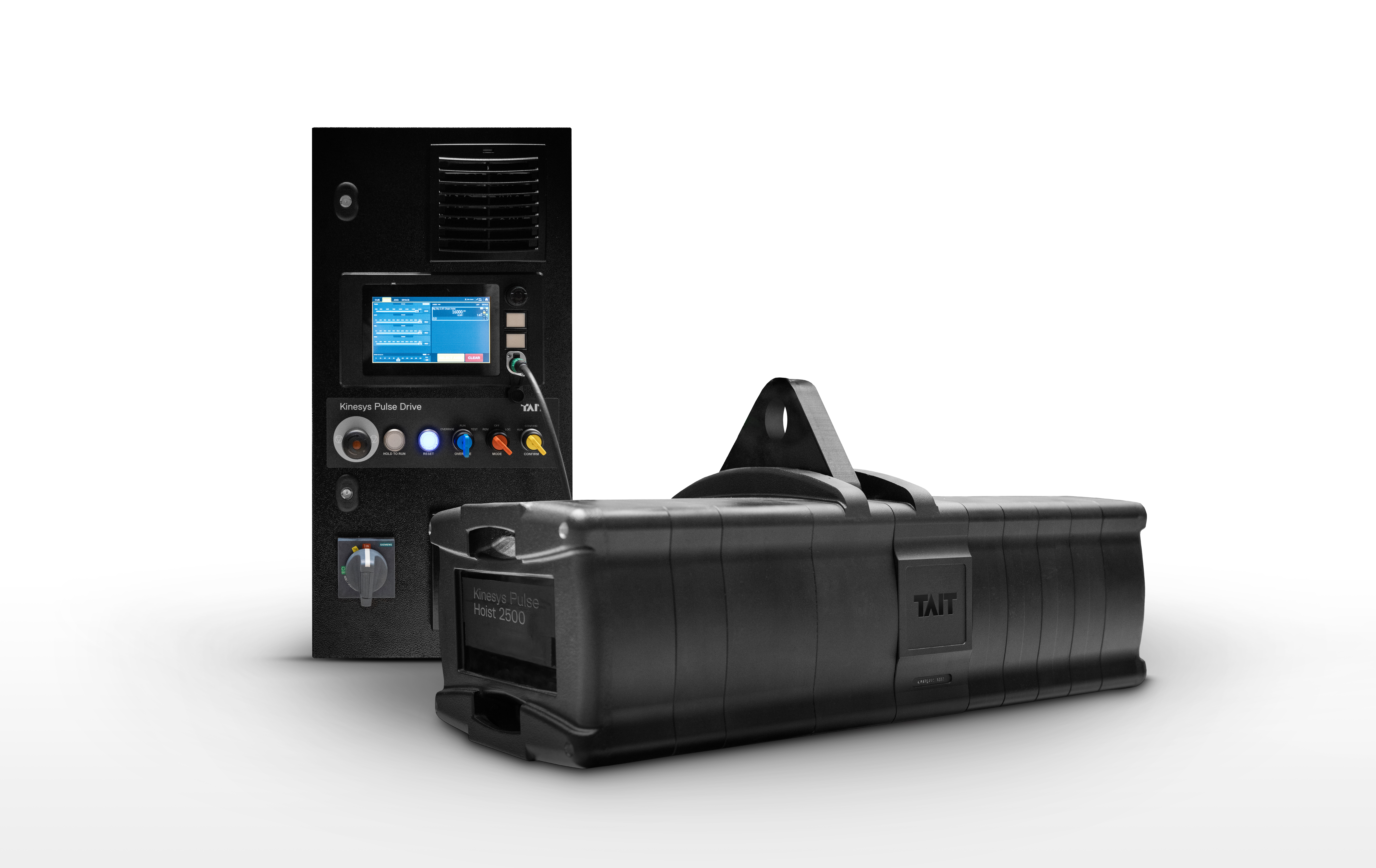

The Kinesys Pulse Hoist is a variable speed electric chain hoist with a lifting capacity of 2500 kg. The hoist is powered by the Kinesys Pulse Drive 7.5 kW and can be operated using the TAIT Navigator™ Automation Platform.
The maximum lift speed is 200 mm/s and the integrated load cell with overload and underload protection means that the hoist meets SIL 3 requirements.
The Pulse Hoist features dual silent brakes and ultra-smooth movement resulting from precision speed and position control.
In conjunction with Navigator™, key data such as load and temperature can be monitored. This allows users to ensure that the hoist is not over-exerted, that regulatory requirements are met, and that maintenance schedules are kept precisely.
Features:

• 2500 kg (5500 lbs) maximum load capacity
• 200 mm/s (0.65 ft/min) maximum lifting speed
• 0mm/s minimum speed
• Full load capacity at any speed down to and including zero
• 13x36 mm chain; 8:1 safety factor
• Dual silent brakes
• Brushless servo motor
• Integrated dual-channel SIL3 load cell
• Compatible with TAIT Navigator™ system
