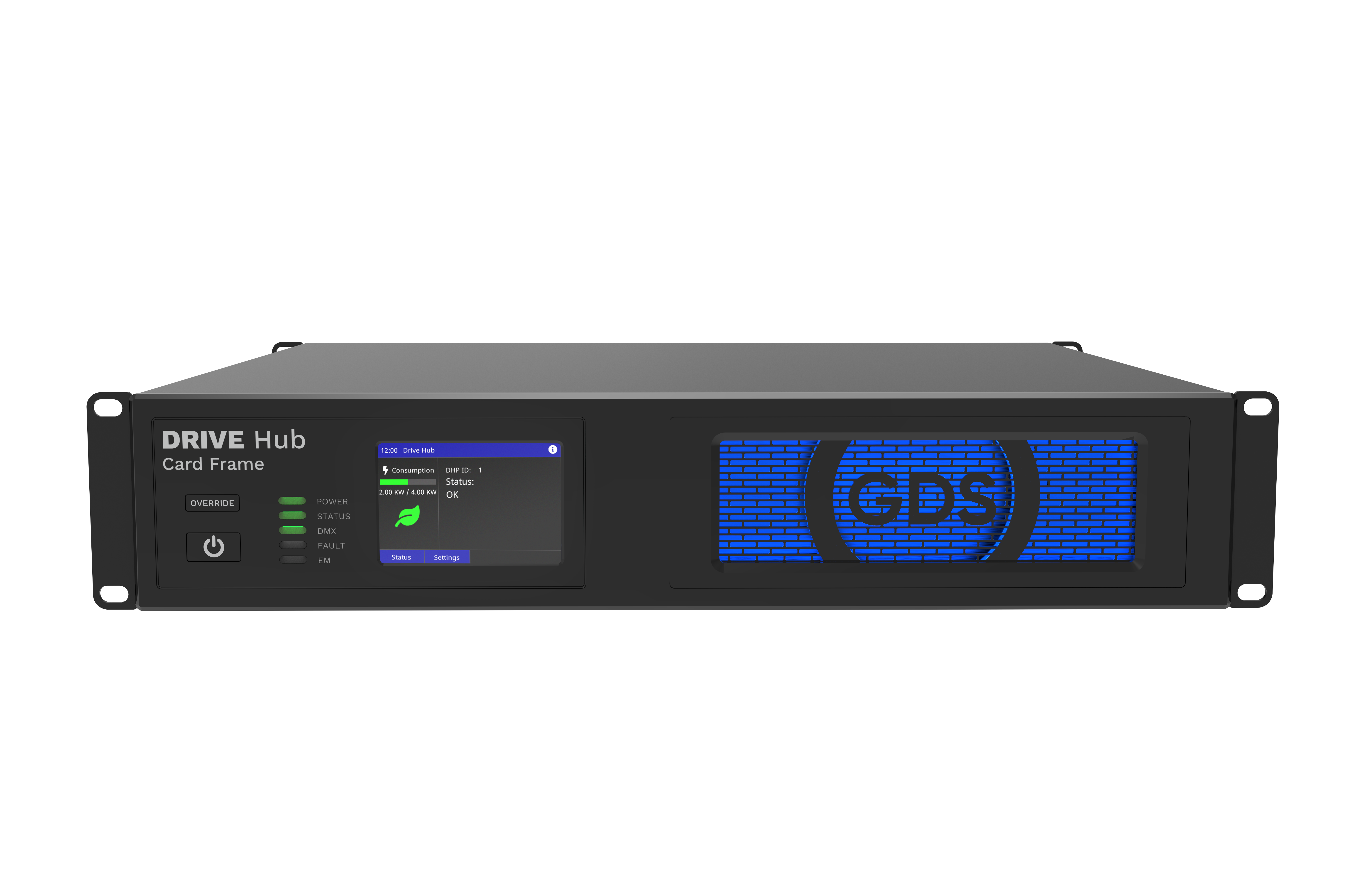

Fully customisable and modular centralised driver system

Drive Hub is a fully modular centralised driver system. A single 2U card frame can remove the need for local drivers for up to 96 light fixtures, meaning that they can all be serviced and monitored from an easily accessible central location.

Our Drive Hub system is configurable with a full range of processor and drive cards, and each frame is capable of running a mix of different cards to build a system that matches your unique lighting installation.

• Modular: Build a unique system that fits your needs


• Servicing and Reliability: Easily access components for maintenance


• Efficiency: Class-leading efficiency (>97%) PSUs


• Smooth Dimming: Trusted by the world's most prestigious venues


• DMX/RDM Control: Configure with the Drive Hub web interface


• Monitoring: Send automated reports using email or SNMP


• Breakout Boxes: Easy lighting installation with CAT5 cables


• IPM: Power and data on 1 cable


• IPM2: Power and 512 channels of data on 1 cable

Transform the largest venues with high definition colour

The GDS Sirius 120 is a high output, multi-emitter fixture which can reproduce a wide spectrum of saturated colours plus dynamic white light in a range of colour temperatures. To suit your installation, the Sirius 120 is available in yoke, recessed and pendant form factors.

• 5 Colour LED Engine
  The 5 light colours of the Sirius range (red, green, blue, warm white, and cool white) of the Sirius range enables full colour mixing and tuneable, high quality white light from a single source.



• Dynamic Power Regulation (DPR)


  Sirius luminaires will automatically manage the amount of power that each channel uses. This boosts the light output when using fewer channels at once, resulting in far brighter and more saturated colours.

  DPR also continuously monitors the LED temperature and manages the light output to prevent the luminaire from overheating.



• IPM2 - Power & Data on 1 Cable


  IPM2 is a revolutionary driver technology from GDS that can provide both power and 512 channels of DMX control data over legacy 2-core mains cabling.

  As well as multichannel control, IPM2 is capable of two way data transmission. This means that it can send the thermal data from DPR and other sensors back to Drive Hub.

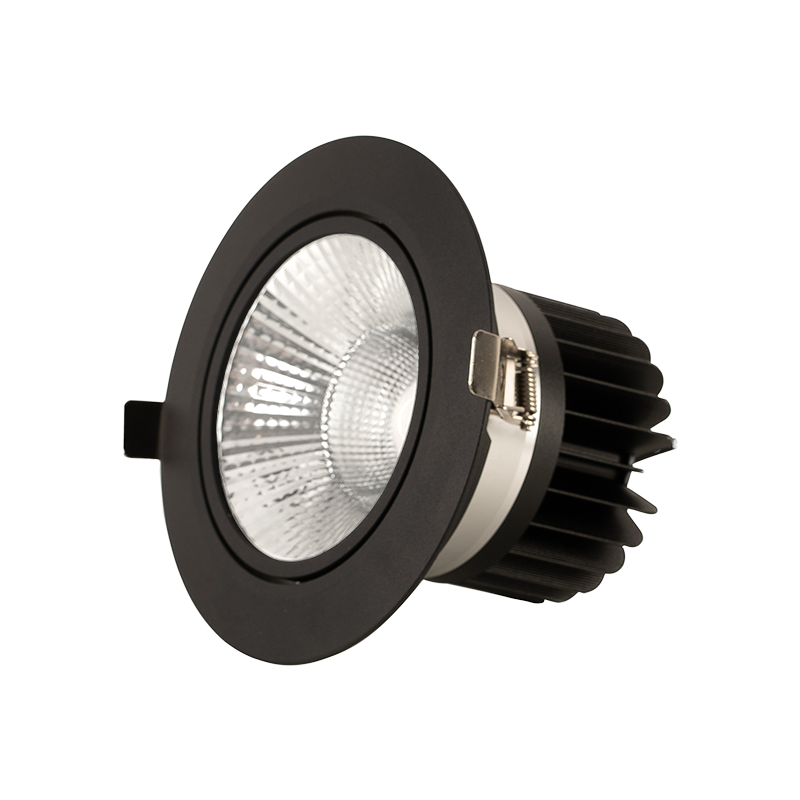

Efficient and discreet downlights

The Puppis is our family of high-performance recessed downlights for venue house lighting. Designed to be robust and reliable, the Puppis family comes in four sizes, making it perfectly suited to both short and long throw applications.The Puppis range is designed to be efficient and discreet without compromising on light quality and output.

Key Features

• Robust casing
• Uniform heat dissipation
• Available in 4 different size options
• Available as Downlight & Yoke Mounted
• Available in Custom RAL Colours
• 912 lm to 7752 lm system output
• 2700K, 3000K, 4000K CCT options
• >90 CRI or >97 CRI
• 24°, 40° beam angle options
• External driver
• DALI or non-dim control
• IP20
• Fully CE compliant
• 5 year warranty

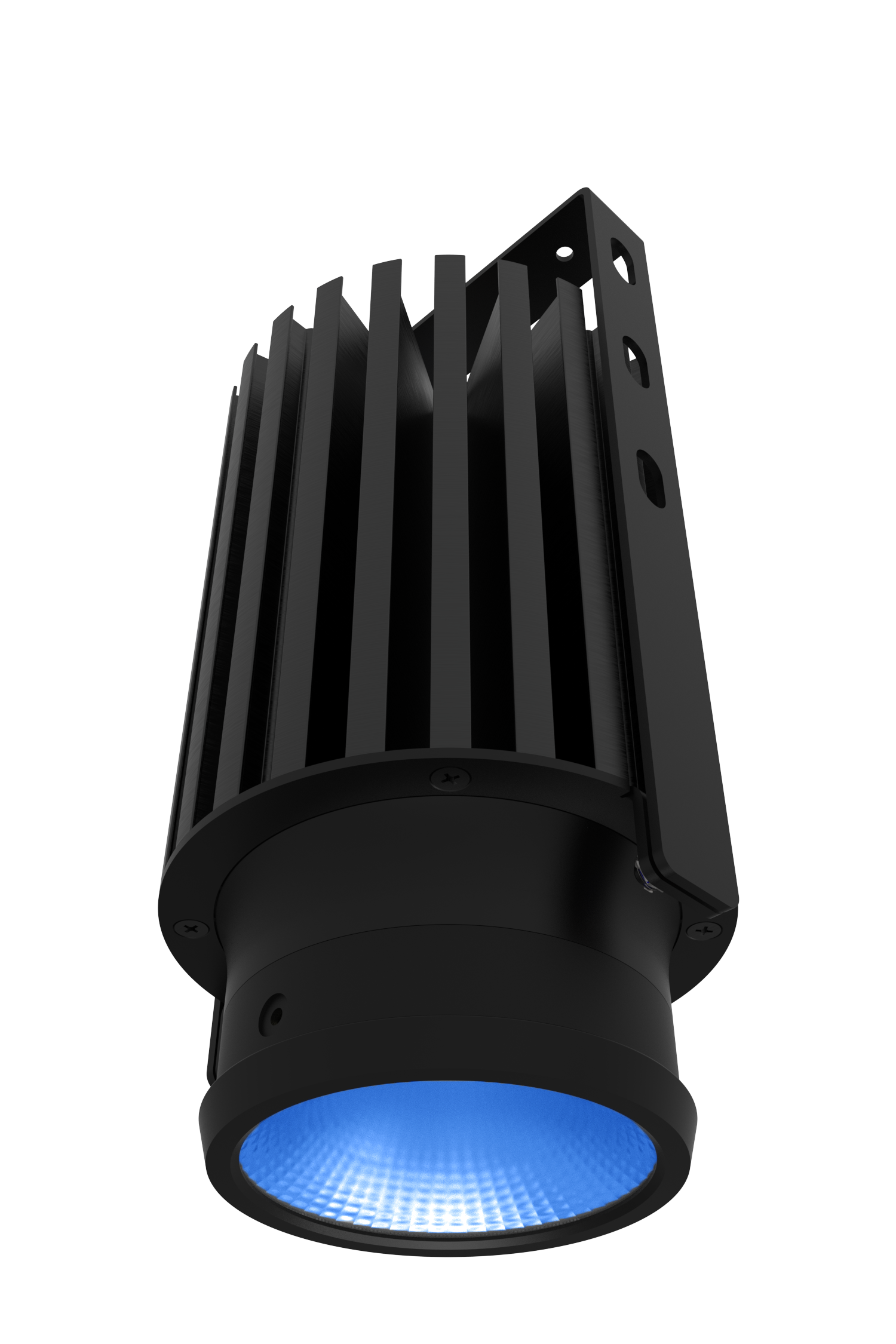

Starfield’s smooth, modern design brings constellations of colour to your space.

Precise, yet expressive, the Starfield has the accuracy to pick out individual seats in a venue coupled with the flexibility to transform the entire space. This unrivalled adaptability provides the end-user with the ability to effortlessly elevate an array of performances and events.

Key Features

• Combined with the starfield data distribution system, pixel and video mapping is naturally added
• Narrow beam spotlight with wider options
• Perfectly uniform colour mixing (no spotting)
• Recessed anti glare main light source
• Customised solid polymer optics
• Thin film optic beam shape options
• 2700K, 3000K, 4000K
• 97 CRI, full spectrum
• Variety of standard and custom finishes
• Fully CE compliant
• 50,000 hour lifetime (L80)
• 5 year warranty

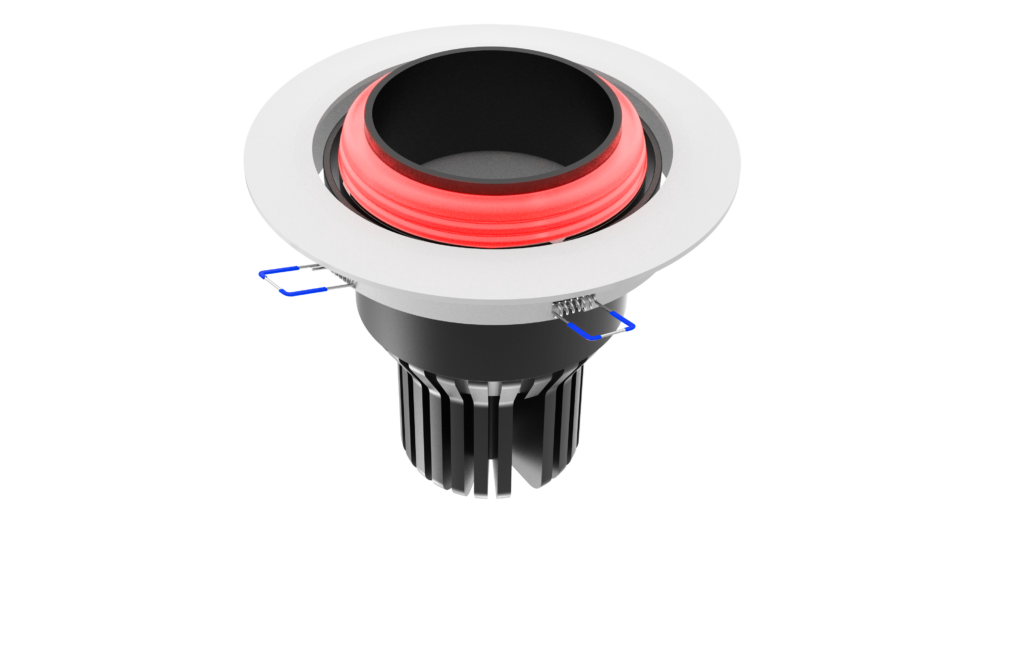

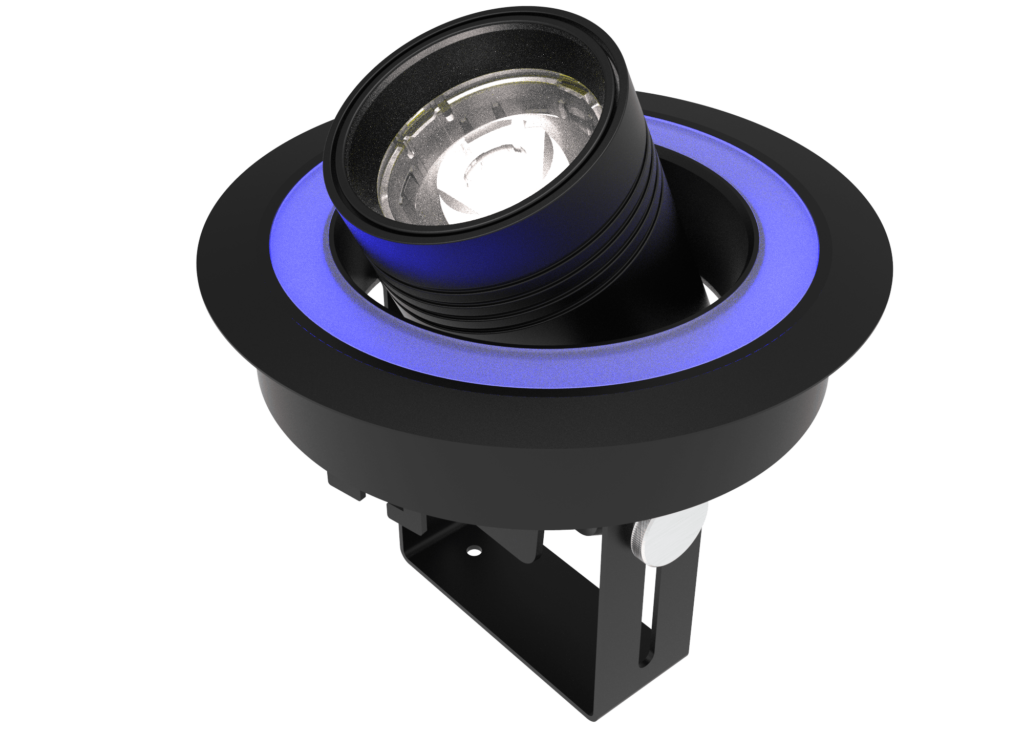

Design without compromise. A true game changer for architectural applications.

The Atlas is set to revolutionise the way we approach lighting. Exceptionally rendered white light, combined with beautifully saturated colour empowers designers, architects, and end-users to deliver fully immersive experiences across a variety of sectors. A sleek modern combination of classic and dynamic lighting bringing a unique aesthetic to any space.

Key Features

• Colour (RGBW) 360 uniform light source
• Ring diffuser optically engineered for maximum efficacy
• Accent ring optimised for uniform colour emission, (60% >30deg V axis, 40% >90deg H Axis)
• Deep main light source to emulate an AR111 antiglare
• 2700K, 3000K, 4000K
• 97 CRI, full spectrum
• Wide range of beam angles (15 > 60)
• Fade to Warm availability
• IPM / IPM2 compatible using Drive Hub
• Fully CE compliant
• 50,000 hour lifetime (L80)
• 5 year warranty
