TW AUDiO INTERNATIONAL GmbH

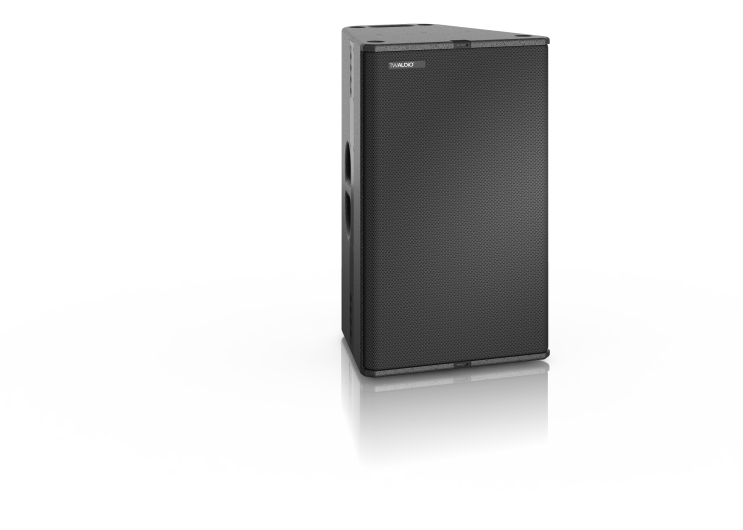

T24N

Beschreibung

  • Configuration:
    LF: 2 × 12”
    HF: 1 × 1.4“ exit with 3” diaphragm
  • Frequency response: 65 – 18000 Hz
  • Program/peak power handling: 1400/2400 W (bi-amp LF), 220/400 W (bi-amp HF)
    1400 / 2400 W (passive)
  • Impedance: 4 Ω (bi-amp LF), 8 Ω (bi-amp HF)
    4 Ω (passive)
  • Dispersion angle (h x v): 60° × 40° or 90° ×  50° HF horn, exchangeable and rotatable
  • Sensitivity 1 W / 1 m: 107 dB (bi-amp LF), 112 dB (bi-amp HF)
    110 dB (passive)
  • SPLmax / 1 m: 143 dB
  • Connector NL4 1± HF / 2± LF (bi-amp)
    NL4 1± (passive)
  • Dimensions (H × W × D): 706 × 440 × 440 mm
  • Weight: 33 kg

Key Facts

  • Point source loudspeaker with two 12“ long excursion chassis and a 1.4” compression driver with 3” diaphragm
  • 90 × 50 degree or 60 × 40 degree constant directivity HF horn, interchangeable
  • 143db SPLmax peak at only 33 kg / 73 lbs weight
  • Integrated rigging tracks on both sides with two positions each for using double-studs and a wide range of accessories

The two specially developed 12“ neodymium chassis in combination with the new cabinet design make this horn-loaded top unit suitable for full range down to below 70 Hz. The new 1.4” high-frequency driver with 3” titanium diaphragm reproduces silky highs accurately and with low distortion, even at the highest levels. The standard 60 × 40 degree horn can now be replaced by a 90 × 50 degree horn without the need for any tools.

The T24N is impressive: with excellent speech intelligibility and musicality, as a single box, standing on a tripod or hanging from a truss, in pairs next to each other, one below the other or in clusters with several elements up to a 360-degree application. All this at just “one-man-friendly” 33 kg.
