Score-Series, D´Appolito Multipurpose Loudspeakers

The Voice-Acoustic Score family features a fully phase optimized passive crossover, paired with a true D‘Appolito design for better speech intelligibility and longer sound transmission range.

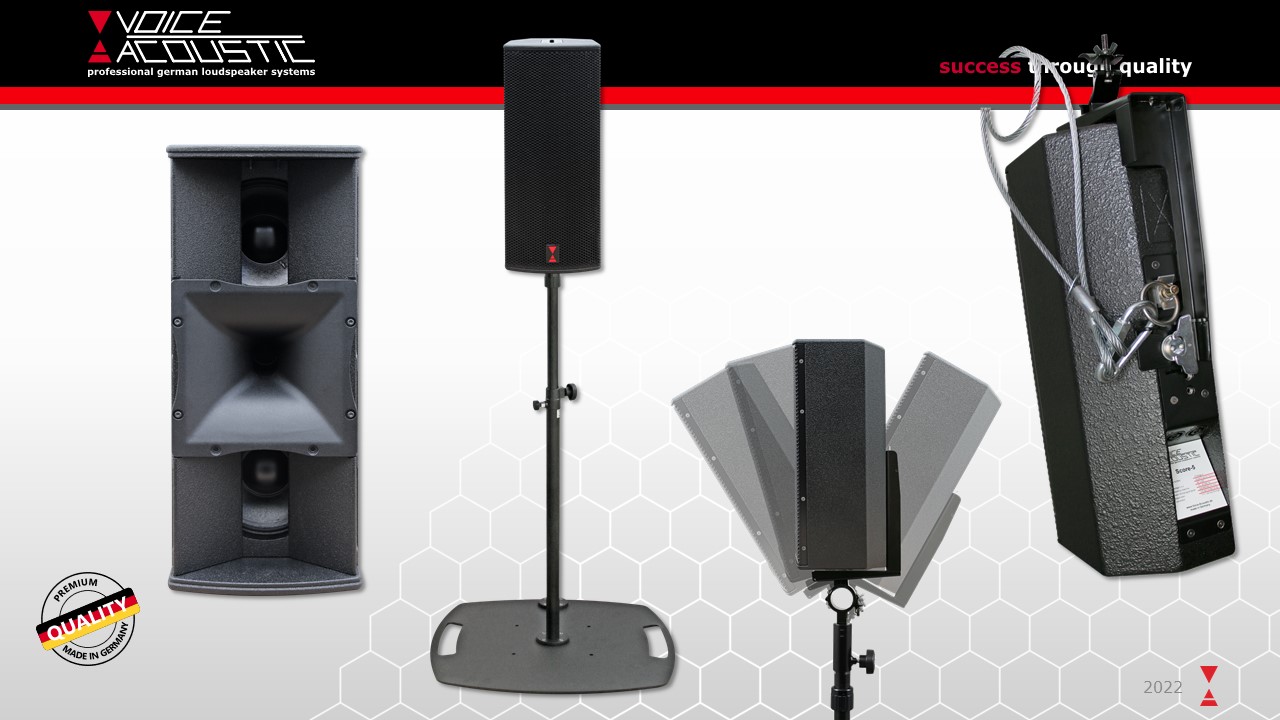

Score-5

• The Score-5 is a compact and powerful multifunctional loudspeaker for mobile applications and installation equipped with 2x5"/1" drivers. The high-quality and fully phase optimized passive crossover with full equalisation allows for use with any amplifier.

Score-8

• The Voice-Acoustic Score-8 is a passive 2-way system equipped with two 8" drivers transducer in D'Appolito arrangement and a 1.4" compression driver coupled to a rotatable CD horn with either 60° x 40° or 90° x 40° dispersion. With its sleek appearance, the Score-8 looks great in all mobile applications and fixed installations. It sets new standards for compact high-performance loudspeakers.

The high sound quality and neutral balance of the CXN stage monitors guarantee first-class transparency, assertiveness and feedback resistance. Performers or musicians receive precise feedback with clean intonation. A powerful, warm and precise fundamental sound and distortion-free high frequencies create a sense of well-being on stage for tireless performance. The CXN stage monitors responds very well to EQ interventions, allowing a sound engineer to easily emphasise voices and instruments in the individual monitor mix.

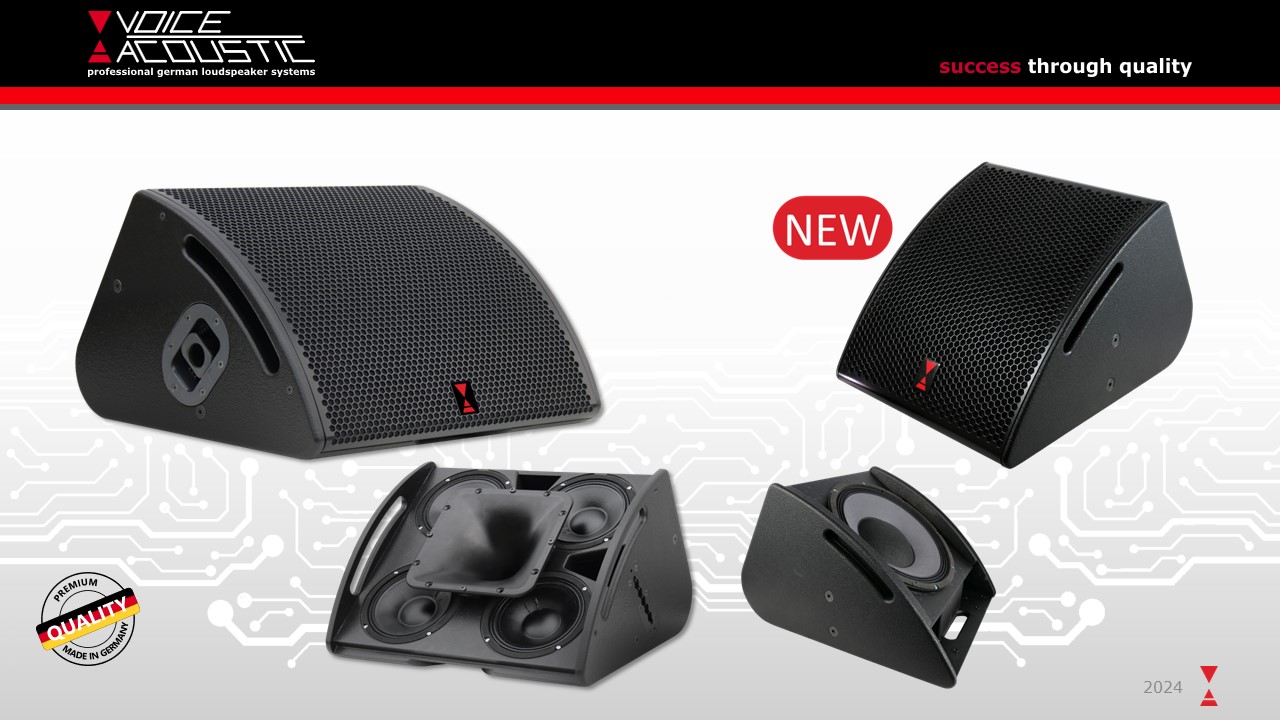

CXN-12, NEW

• Passive 2-way floor monitor, 12"/1.4" neodymium coax
• Smallest and lightest floor monitor in the 12" size class
• Rounded low-profile housing for elegant and unobtrusive stage use
• High-gain before feedback
• Stable and step-proof 2mm steel grille
• Can be carried with just one hand
• Recessed and downward tilted connector panel
• Click-in flyware for tool-free flight mechanics and securing point

CXN-16

• 4 x 8"/1 x 1,4" high performance monitor
• Rounded low-profile housing for elegant and unobtrusive use
• Directional radiation through quad-eight technology
• Better radiation than conventional coaxial monitor through big horn
• Low power compression through high heat radiating voice coil surfaces 4 x 2,5" and 1 x 3"
• Tilting pole socket +/- 18°, tilt for a stand or mounting pole
• Click-in flyware, tool-free flight mechanics
• System width compatible with Paveosub-118
• Hardwearing through 2 mm steel grille with welded reinforcing struts

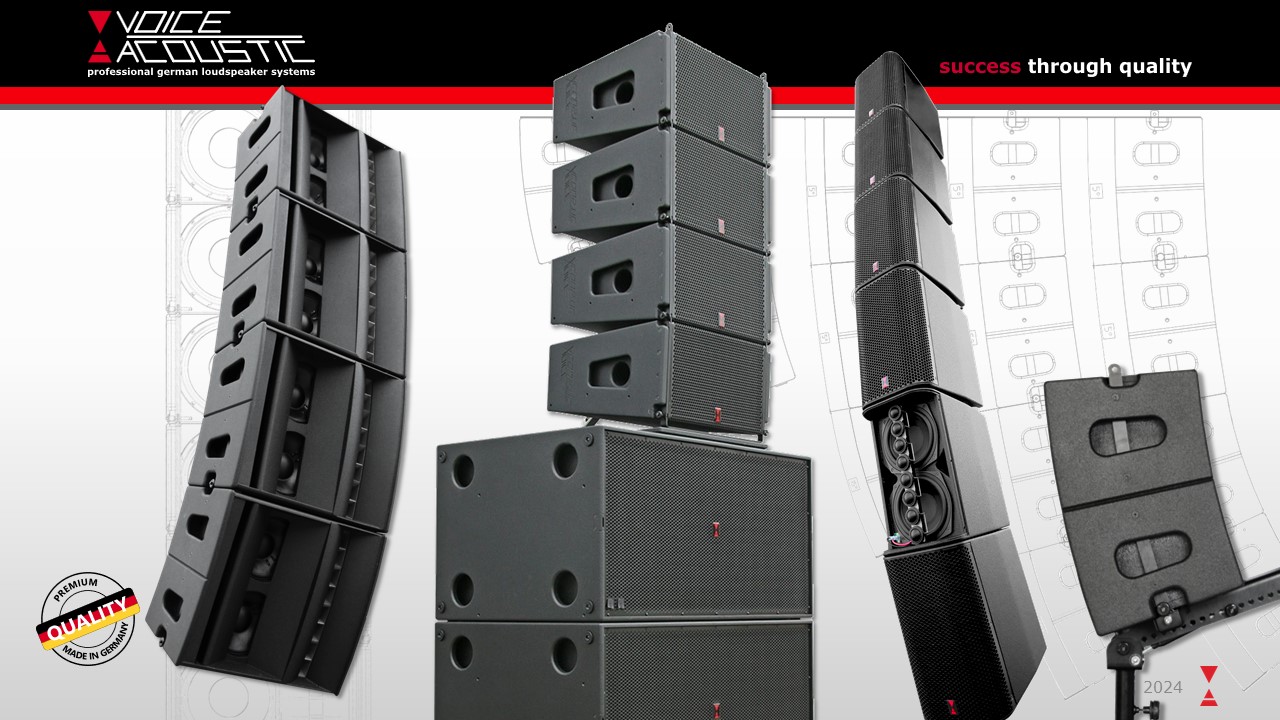

Ikarray-Series, Line-Array Loudspeakers

The Voice-Acoustic Ikarray line-array family is the perfect choice for medium to long throw applications where smooth coverage and linear frequency response are required.

Ikarray-6, NEW

• With just 8.9 kg, the Ikarray-6 is very light and, with its elegantly rounded housing, is also ideal for installations in architecturally demanding environments. A unique feature of the Ikarray-6 is the newly developed, innovative rigging system, which is invisibly attached to the rear of the speaker and allows the angle to be easily adjusted from 0-10° in 1° increments without any mechanical parts on the front or side panels.

Ikarray-8

• The Ikarray-8 is a novel concept plug&play line-array with incredible power densitity: 2 x 8" and 4 x 1" drivers are stacked vertically in a compact housing. Few elements of this system are needed to achieve acoustically effective length and great range. It closes the gap between conventional loudspeakers and line-arrays.

Ikarray-12

• The Ikarray-12 is a 2-way bi-amping full-range line array with high-quality 12"/1.4" neodymium components. This lightweight, compact unit with many intelligent detail solutions is suited for everything from small events up to large venues with many thousand listeners. A static calculation for the use of up to 18 elements in an array is available.

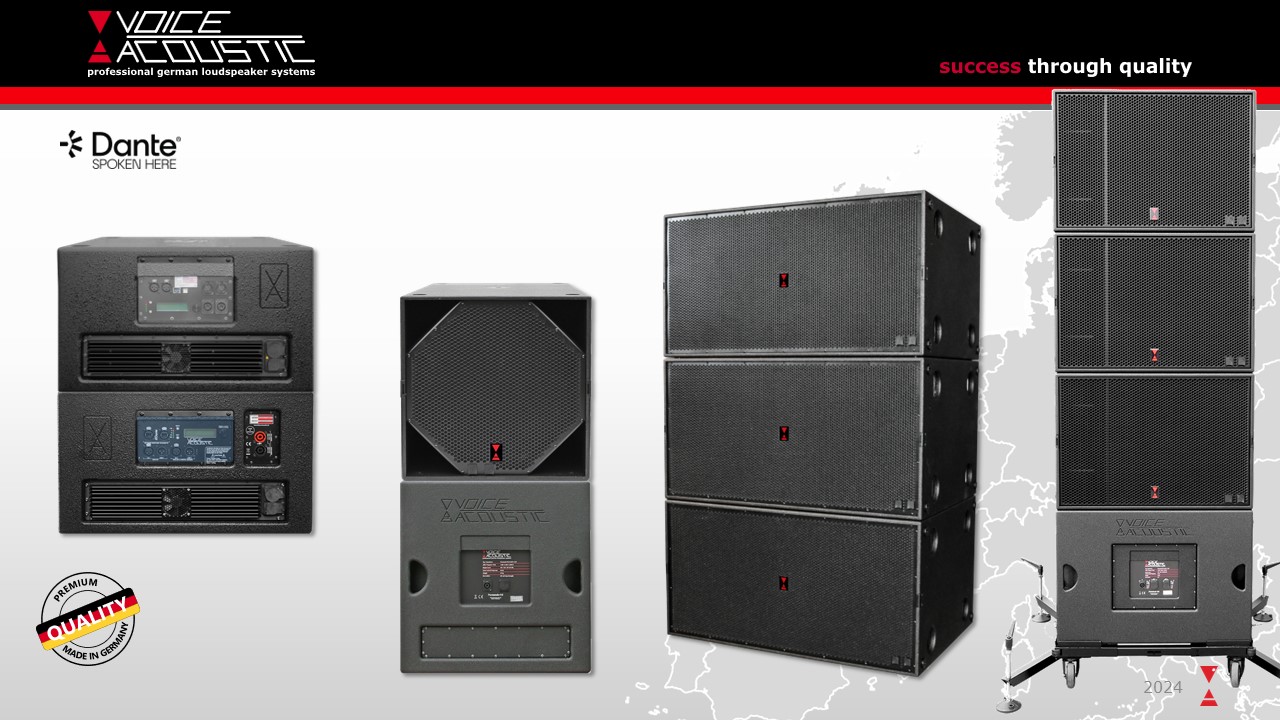

The Voice-Acoustic Paveosub family consists of extremely powerful and very compact bass reflex subwoofers designed for deep, powerful and at the same time very precise bass reproduction.

All Voice-Acoustic Paveosub subwoofers are also available as self-powered DDA versions (3-Channel / 4 kW amplifier module with and DSP speaker management system with Analog, AES & Dante Inputs).

Paveosub-112 / Paveosub-112sp DDA

• The Paveosub-112 is a very compact bass reflex subwoofer with a high quality 12” (4” VC) neodymium chassis. The flattest 12" subwoofer in the world (30cm) can be used where high sound pressure and deep sound are required.

Paveosub-115 / Paveosub-115sp DDA

• The Paveosub-115 is a very compact, low profile (36cm) bass reflex subwoofer. Equipped with a newly developed 15” (4” VC) neodymium transducer for deep, powerful and very precise bass response.

Paveosub-118 / Paveosub-118sp DDA

• Equipped with a 18” (4” VC) neodymium driver, the Paveosub-118 is a lightweight, heavily vented bass reflex subwoofer for undistorted bass performance.

Paveosub-218 / Paveosub-218sp DDA

• The Paveosub-218 is a heavily vented bass reflex subwoofer with two 18” (4” VC) neodymium transducers, designed for highest quality mobile and installation application.

Paveosub-12, NEW

- The Paveosub-121 is a lightweight and very compact 21" subwoofer in the format of conventional 18" subs. The 21" (4.5" VC) neodymium chassis of the latest generation has an innovative tetra-coil drive system. With an overall height of just 54cm, the Paveosub-121 is the flattest 21" sub on the market.

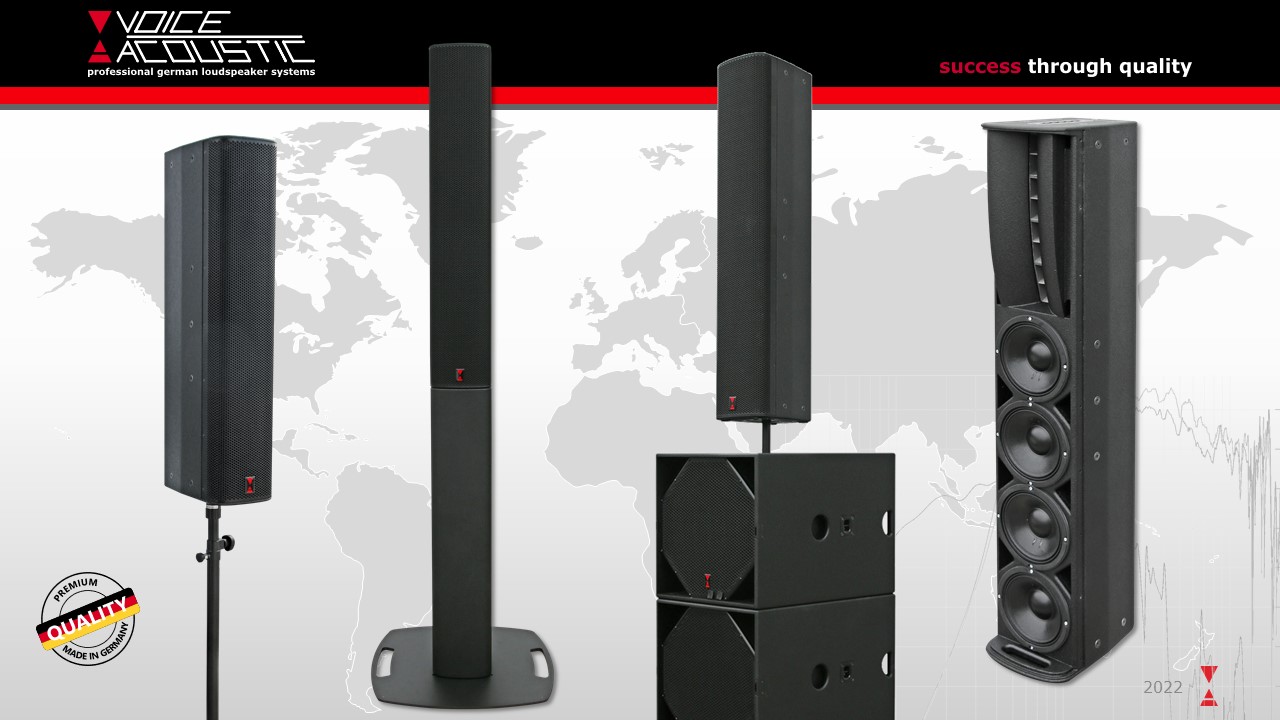

New: VENIA-Series, High Power Column Line-Array Loudspeakers

The Voice-Acoustic VENIA family is the next generation of high power column line array loudspeakers, combining a discreet and elegant appearance with impressive long throw and unexpectedly high performance.

VENIA-6

• The Voice-Acoustic VENIA-6 is a passive 2-way column line array loudspeaker, equipped with 4 x 6.5" drivers and 3 x 1" compression drivers. The high-frequency drivers are coupled to a line array waveguide and produce a dispersion angle of 100° horizontally and 0°/-20° vertically via a large horn.


VENIA-6sp DDA

• The Voice-Acoustic VENIA-6sp DDA is a passive selfpowered 2-way column line array loudspeaker, equipped with 4 x 6.5" drivers, 3 x 1" compression drivers and internal 3.2 kW power amplifier module and the DSP loudspeaker management system with extensive features. The DSP has high computing power and all the standard controller functions.

VENIA-8

• The Voice-Acoustic VENIA-8 is a 2-way bi-amplified column line array loudspeaker, equipped with 4 x 8" drivers and 4 x 1" compression drivers. The high-frequency drivers are coupled to a line array waveguide and produce a dispersion angle of 100° horizontally and 0°/-20° vertically via a large horn.

VENIA-8sp DDA

• The Voice-Acoustic VENIA-8sp DDA is a 2-way bi-amplified selfpowered column line array loudspeaker, equipped with 4 x 8" drivers and 4 x 1" compression drivers and internal 3.2 kW power amplifier module and the DSP loudspeaker management system with extensive features. The DSP has high computing power and all the standard controller functions.
