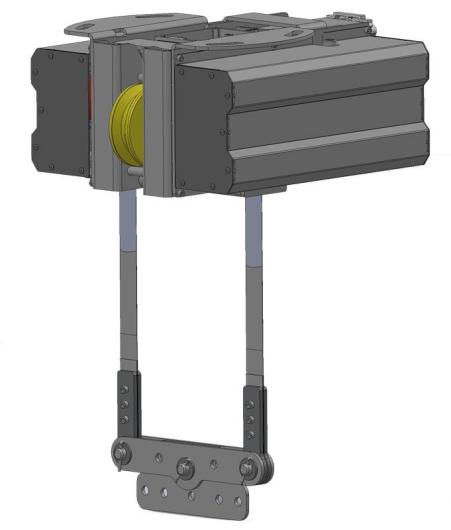

The Cluster Hoist Band is equipped with a double load bearing line made of 30 x 0,4 mm steel band.

In total it lifts loads up to 200 kg over a maximum travel distance of 12 m at a speed of up to 6 m/min. The double load bearing line ensures that the attached line arrays cannot tilt.

Thanks to flexibel mounting options, it is suitable for truss installation, mounting on existing steel structures or to a ceiling.

Due to the dynamic self-locking gearbox, the dynamic forces even in the event of a power failure are considerably low and the load is brought to a safe stop gently and reliably in all scenarios.

The Cluster Hoist Band with speed 6m/min is equipped as standard with a dynamic self-locking gear and a safety catch integrated in the dynamic irreversible worm gear. As the hoist operates without brakes, less maintenance is required.

The control possibilities reach from a 24 V, thrid party control to a full synchronous ASM GEN.ESIS SIL3 control.
