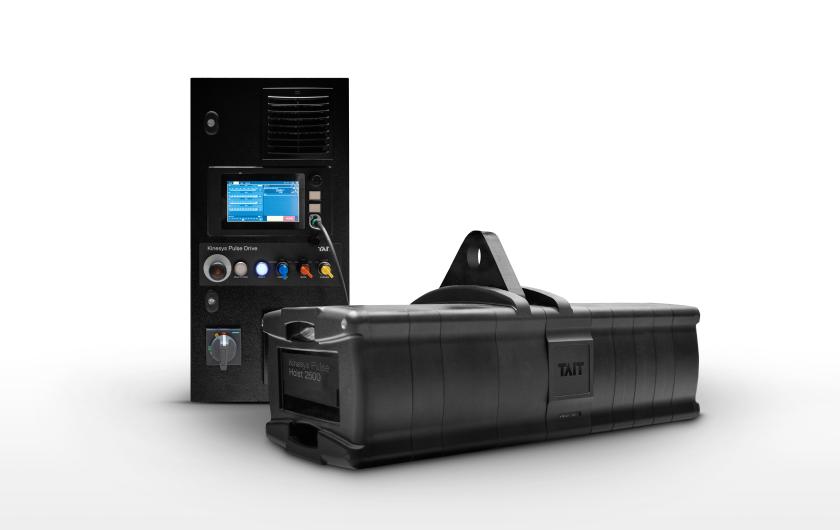

Kinesys Pulse Hoist 2500 and 7.5kW Pulse Drive

Kinesys Libra is a range of products designed to offer simple and accurate load measurements for use in any number of rigging and load bearing applications.

There are three main elements to a system: the load cell, the hub/power supply and the viewing and programming software. The Libra system also offers full connectivity with other Kinesys products allowing load measuring to be a part of any system.

Kinesys Libra Cell is a load measuring shackle which, when combined with the other elements of the Libra system, produces accurate, real time load information. LibraCELL is designed for indoor use and is not waterproof.

The load cell itself features the Libra shackle pin, which is designed to work exclusively with the world-wide recognised Crosby safety bow shackle. This innovative design means there is no loss of headroom as the load cell is built right into the shackle, a direct replacement for the famous ‘red pin’. The Libra shackle maintains a safety factor of 5:1 up to the full rated load stamped on the side of the bow.

Built into the load cell is a highly visible LED display allowing users to view the live load as well as input a tare value and switch between kg and lbs, all via an easy to use menu system.

Kinesys Libra View working in conjunction with Kinesys Libra Cells, Kinesys Libra Basic and Kinesys Libra Pro controllers, the Libra View software enables users to get a live readout of weights placed on Libra Cells, as well as offering logging and archiving facilities. These are available in kg or lbs.

The Libra View software allows all activity to be logged and exported to a Comma Separated Value (.csv) file which can be opened by any text or spreadsheet application. It is also possible to automate this process to archive logs.

When used in conjunction with a Kinesys Libra PRO controller, relays can be triggered when an underload or overload is detected by the Kinesys Libra Cells. These relays can be programmed to trigger sounders or visual warnings as well as triggering an emergency stop.

The Kinesys Apex system is the complete solution to high-end chain hoist control applications. It includes all the features you would expect like compliance with EN61508-SIL3 and DIN56950, sub millimetre precision and true zero speed hover. It also contains some you might not expect like silent brakes, intelligent duty cycle management and real-time data logging.

The Kinesys Apex Hoist range offers 500kg (1200lb), 1250kg (2750lb), and 500kg Servo options. The hoists have maximum speeds of 500mm/s (100ft/min), 200mm/s (40ft/min), and 610mm/s (120ft/min) respectively in compact packages while still maintaining the highest safety standards suitable for movement over people in show situations.

Kinesys DigiHoist is a fixed speed digital control system for chain hoists with safety group functionality which has been created to be a flexible, configurable, next generation control solution.

DigiHoist incorporates all the safety functionality required to work in group hoist mode and is in compliance with many strict EU standards. Load monitoring, group stop, positioning and self healing emergency stop are standard DigiHoist features, all working within a user friendly digital platform.

THE ULTIMATE ENTERTAINMENT CONSOLE IS HERE

The TAIT epiQ ™ console is purpose-built for iQ powered by Navigator and unifies the control of all live event operations in one cohesive experience giving the user the confidence and power to maximize the creative potential of any live event.

The TAIT epiQ console features:

• Purpose-built for iQ
• Intuitive touchscreen interface
• Fully integrated design (Accessories available but not required)
• Integrated linear timecode and show control interfaces
• Delivered with world-class design support and training
• Inspired by 20 years of live event automation customer feedback

The epiQ Mini is the smallest console in the epiQ series, offering the intuitive iQ interface and
access to the TAIT Navigator Automation Platform in a compact form-factor. The epiQ Mini is
ideal for smaller venues or sub-sections of larger venues. It is designed to work in complete
harmony with other epiQ consoles in multi-user environments.
It represents the perfect upgrade path for users of the Kinesys Vector software that are looking
for the next generation of features, usability and support.

Kinesys Libra is a range of products designed to offer simple and accurate load measurements for use in any number of rigging and load bearing applications.

There are three main elements to a system: the load cell, the hub/power supply and the viewing and programming software. The Libra system also offers full connectivity with other Kinesys products allowing load measuring to be a part of any system.

Kinesys Libra Cell is a load measuring shackle which, when combined with the other elements of the Libra system, produces accurate, real time load information. LibraCELL is designed for indoor use and is not waterproof.

The load cell itself features the Libra shackle pin, which is designed to work exclusively with the world-wide recognised Crosby safety bow shackle. This innovative design means there is no loss of headroom as the load cell is built right into the shackle, a direct replacement for the famous ‘red pin’. The Libra shackle maintains a safety factor of 5:1 up to the full rated load stamped on the side of the bow.

Built into the load cell is a highly visible LED display allowing users to view the live load as well as input a tare value and switch between kg and lbs, all via an easy to use menu system.

Kinesys Libra View working in conjunction with Kinesys Libra Cells, Kinesys Libra Basic and Kinesys Libra Pro controllers, the Libra View software enables users to get a live readout of weights placed on Libra Cells, as well as offering logging and archiving facilities. These are available in kg or lbs.

The Libra View software allows all activity to be logged and exported to a Comma Separated Value (.csv) file which can be opened by any text or spreadsheet application. It is also possible to automate this process to archive logs.

When used in conjunction with a Kinesys Libra PRO controller, relays can be triggered when an underload or overload is detected by the Kinesys Libra Cells. These relays can be programmed to trigger sounders or visual warnings as well as triggering an emergency stop.

The Kinesys Apex system is the complete solution to high-end chain hoist control applications. It includes all the features you would expect like compliance with EN61508-SIL3 and DIN56950, sub millimetre precision and true zero speed hover. It also contains some you might not expect like silent brakes, intelligent duty cycle management and real-time data logging.

The Kinesys Apex Hoist range offers 500kg (1200lb), 1250kg (2750lb), and 500kg Servo options. The hoists have maximum speeds of 500mm/s (100ft/min), 200mm/s (40ft/min), and 610mm/s (120ft/min) respectively in compact packages while still maintaining the highest safety standards suitable for movement over people in show situations.

Kinesys DigiHoist is a fixed speed digital control system for chain hoists with safety group functionality which has been created to be a flexible, configurable, next generation control solution.

DigiHoist incorporates all the safety functionality required to work in group hoist mode and is in compliance with many strict EU standards. Load monitoring, group stop, positioning and self healing emergency stop are standard DigiHoist features, all working within a user friendly digital platform.
