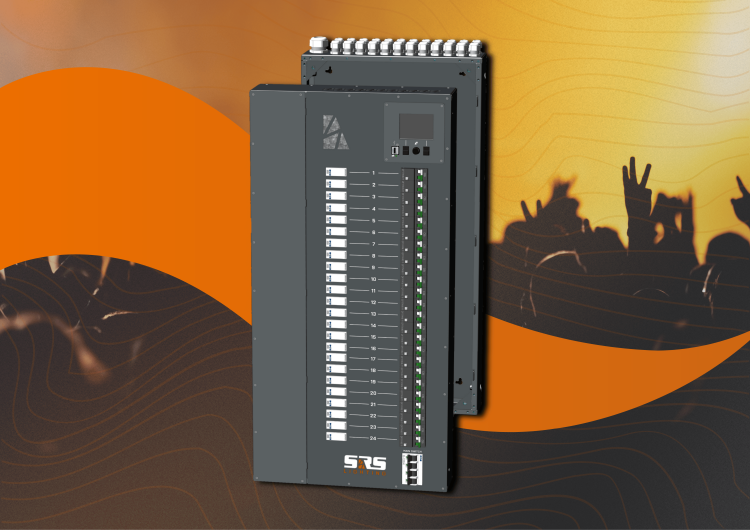

This device was inspired by the ongoing change in the industry, where dimming lights are being replaced with intelligent lights, fully controlled by DMX. SPNet, a switiching unit for lighting fixtures. This unit was made to easily replace older dimmers while also utilizing various communication protocols for uses outside lighting industry.

Every channel of the switching unit can be controlled remotely with a 25A high inrush contactor. The device also has a built-in merger, which means that you can connect two DMX lines and an Ethernet one for multiple protocols.

SPNet is the most feature-rich, in terms of individual channel monitoring & control. Most importantly though, we've added numerous communication protocols, such as DMX, Art-Net, sACN, as well as multiple open-source protocols.

Connectors & Channels:

In: 3x125A Out: 24xRCBO16A

• RCBO– 1P+N hydraulic magnetic breakers with residual current protection, stable in -40°C to +85°C
• DATA– Per channel current & voltage monitoring and RCBO trip indication via remote access and LCD screen (optional LED indication)
• SWITCH– Per channel relay on/off swithing via local and remote control

Communication:

In: 2xDMX, 1xEthernet

• DMX, RDM, Art-Net, sACN, multiple open-source protocols
• Optional user-configurable isolated inputs and Solid State Relay outputs
• Secured by UPS supercapacitor and POE
