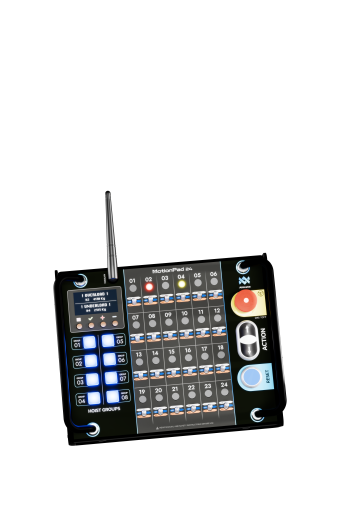

MotionPad

12 TO 128 CHANNELS

Boasting safety features, flexible controls and a quality finish, our digital controller range suits the most demanding installations.
Various formats of wired and/or wireless remote can be used to match your working habits.

MAIN FEATURES :

1. Smart Hoist Selection

Each channel has an ADJUST position to quickly operate one hoist without having to deselect and re-select all the others.
Each selector has RGB LED that indicates the status of the channel : On, Off, Adjust, Going Up & Going Down.

2. Phase Reversal Switch

Something has not been wired correctly and one of your hoist is going in the opposite direction ?
By using these switches, you can easily reverse the phase of each channel without modifying your current selection.

3. Local or Remote Control

A switch allows you to select between the 2 control modes and the remote comes with a 15 meters cable as standard, offering the same hoist selection capabilities.
Don’t like to be tied ?
An optional wireless module is available !

OTHERS FEATURES :

· Individual or group control of 12 DC hoists with a capacity ranging from 250 to 1000 kg.
· Controllers can be linked with our digital link system for up to 128 simultaneous channels.
· Thermal-magnectic circuit breakers to protect hoists from surges and short-circuit.
· Group stop if a breaker of the controller or linked system trips, with key for funtion bypass.
· Reset button proceeds to internal checks and makes sure the operator has been made aware an emergency stop happened before the system can be operated again.
· 32A power input, with power out to daisy chain several controllers for power supply.
· Automatic phase alignment of the power input.
· CEE, Harting and Socapex outputs to suit every configuration.

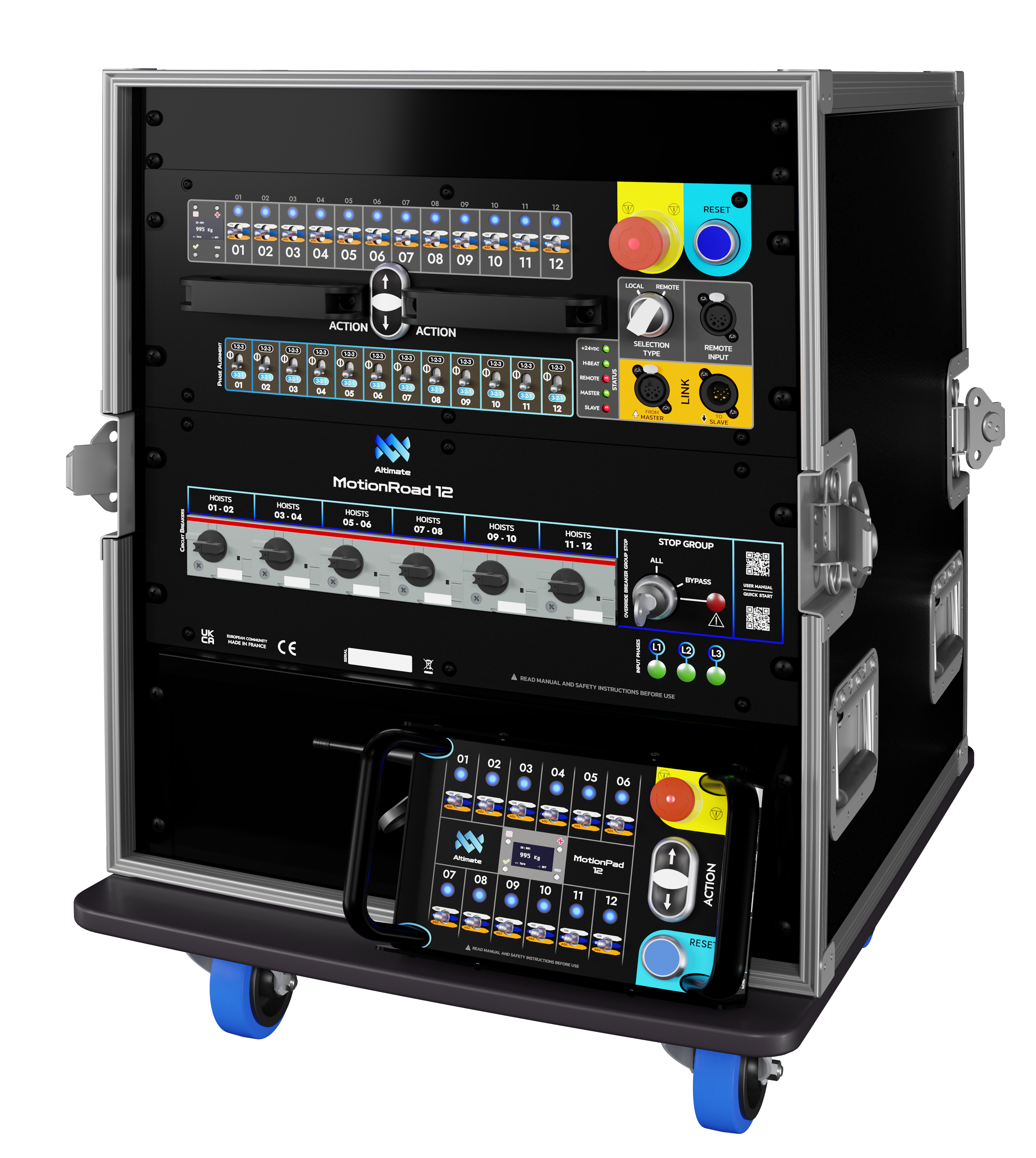

· 13U flight case on wheels with a drawer to store the remote and cable.
· AUX 230V power output for any device such as laptop, phone...

12 TO 128 CHANNELS

Boasting safety features, flexible controls and a quality finish, our digital controller range suits the most demanding installations.
Various formats of wired and/or wireless remote can be used to match your working habits.

MAIN FEATURES :

1. Smart hoist selection

Each channel has an ADJUST position to quickly operate a single hoist without having to deselect and re-select all the hoist from you current selection.
Each selector has a RGB LED that indicates the status of the
channel : On, Off, Adjust, Going Up & Going Down.

2. Hybrid contactors

This new generation of contactor is specially designed for electric motors, providing increased safety and longer lifespan.
It is easy to adjust to your hoists’ power requirement, and brings a modular design that makes maintenance easier and quicker.

3 Local or remote control

A switch allows you to select between the 2 control modes and the remote comes with a 15 meters cable as standard, offering the same hoist selection capabilites.
Don’t like to be tied up ? An optional wireless module is available !

OTHERS FEATURES :

· Individual or group control of electric hoist with a capacity ranging from 250 to 2000 kg.
· Limited power supply ? Set a limit on how many hoists can be operated at the same time.
· E-stop button allowing an immediate group stop if a dangerous situation occurs.
· Phase indicator and global status LEDs to check your power supply input and operation.

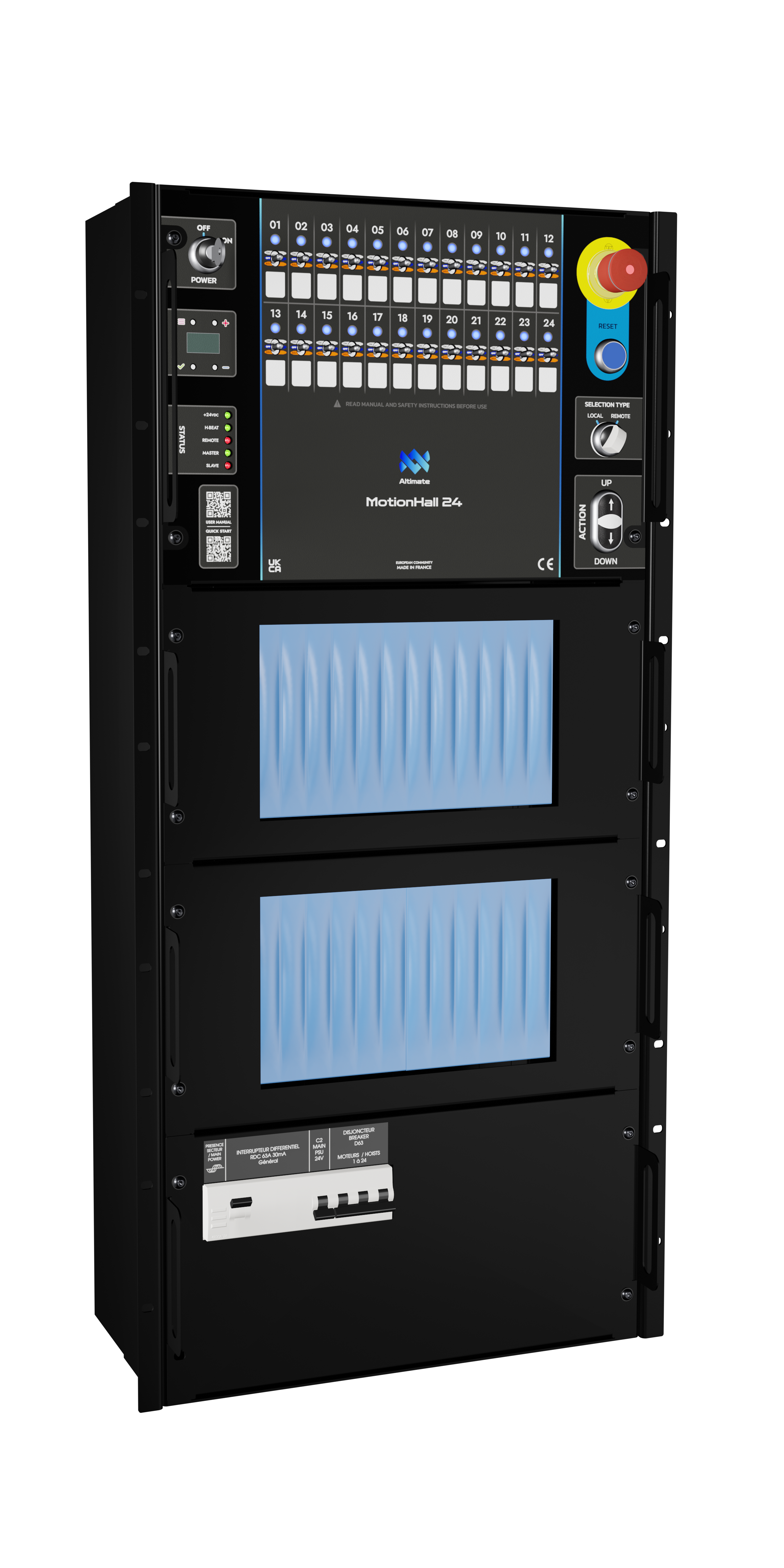

· Robust metal enclosure with black epoxy coating.
· Brackets can be fixed at the rear for wall-mounting or at the front for rack mounting.
· Cable exits at the top or bottom to suit the configuration of your installation.
· Power imput : hard-wired 3P+N+E 63A | Power rating 380~415V / 3 Ph / 47~63 Hz
· Output : hard-wired 3P+E 16A
