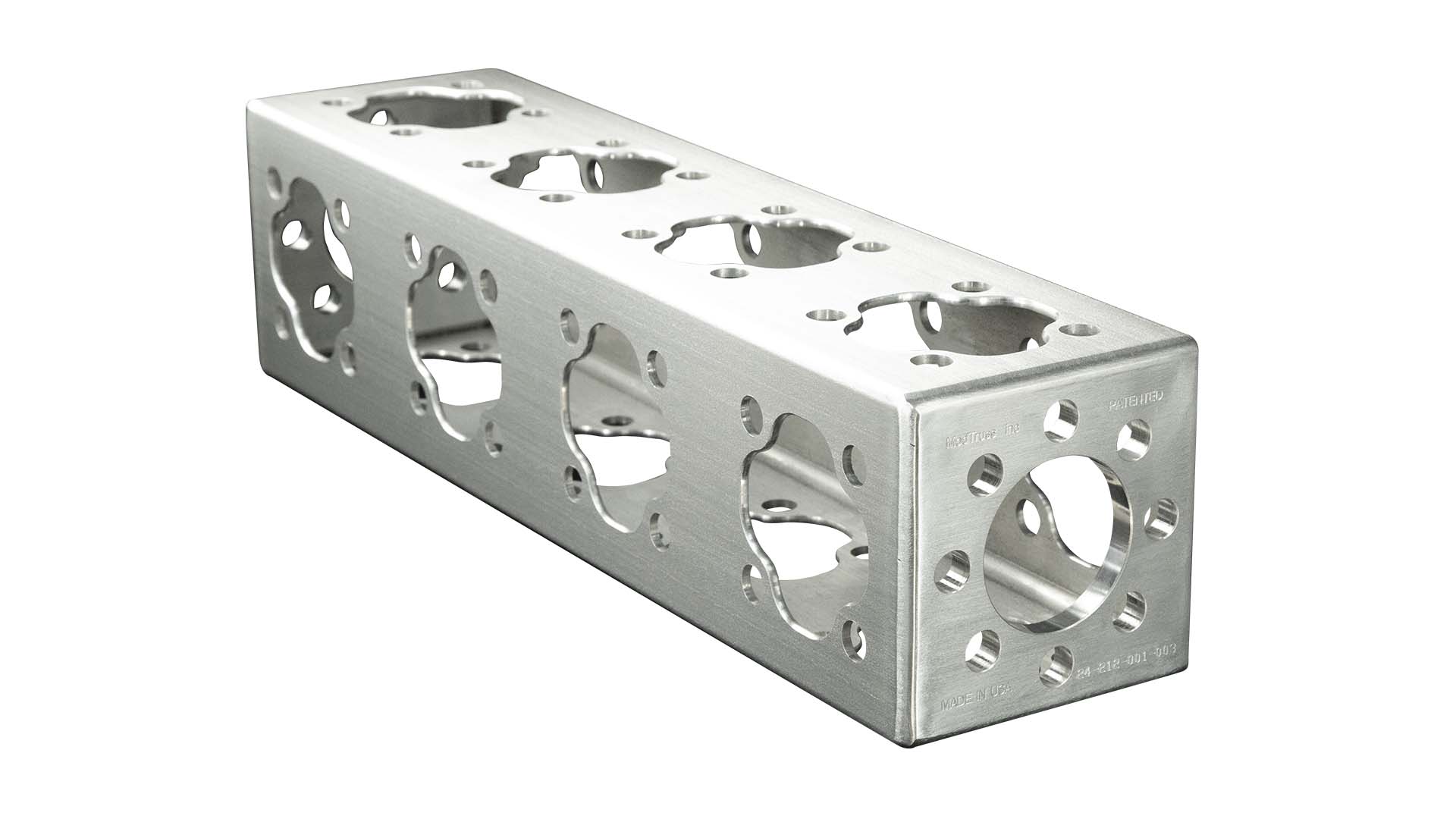

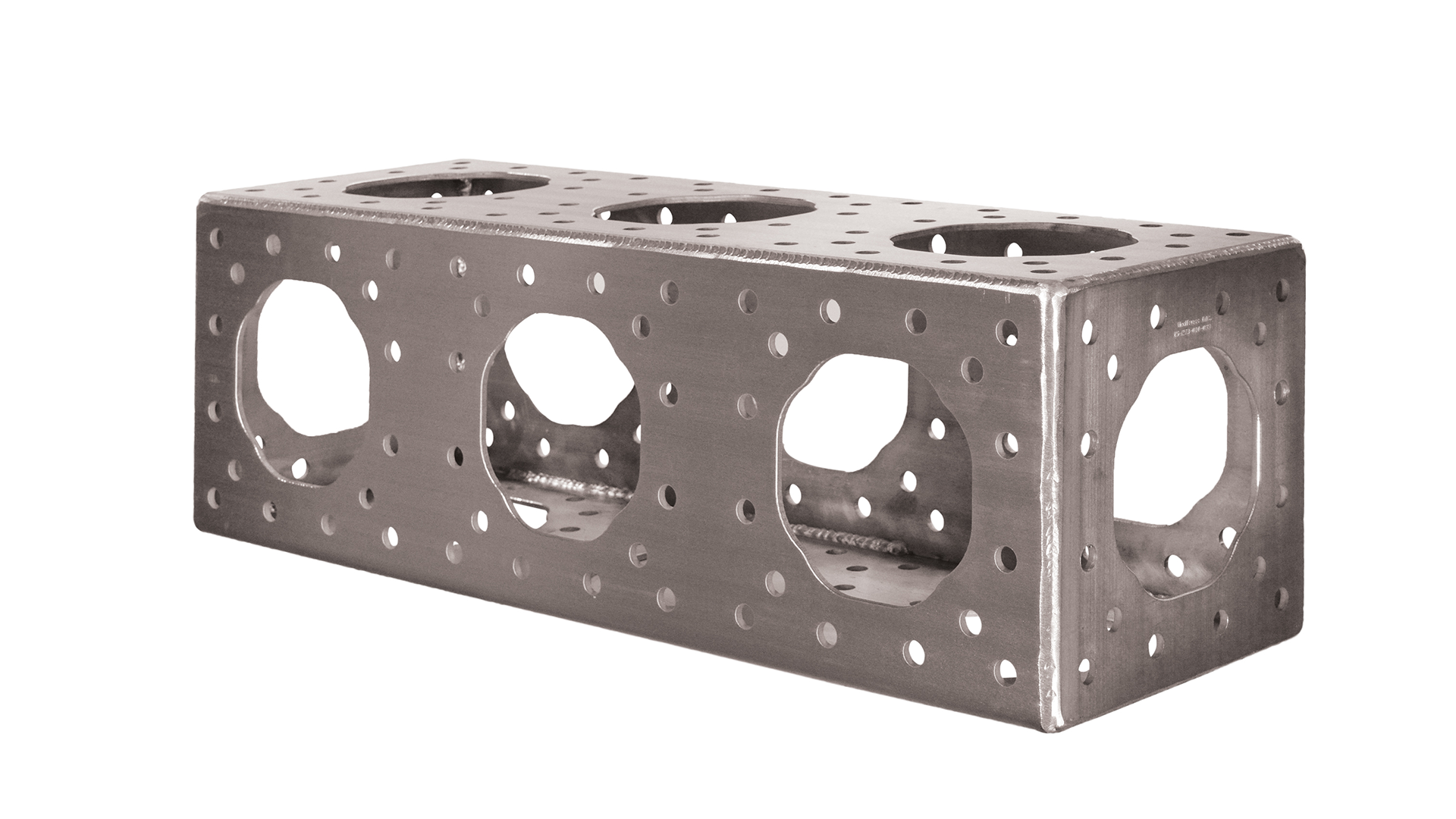

Truss Profiles

AVAILABLE IN BOTH ALUMINUM AND STEEL

Each truss series of the ModTruss line is stocked in 1-foot increments up to 10 feet in length. Each
series also has a 6” block for added flexibility in lengths. Unlike other trussing products, all 3 series of
ModTruss are compatible with and connect with one another.

Connectivity on all 6 sides: A bolt hole every 3’’ on all 6 sides which means you are no longer limited to only end-end connections.
NO CORNER BLOCKS ARE NEEDED

Reinforcement Of Truss Connections: The ability to reinforce truss connections increases load capacities allowing for longer spans
while reducing deflection.

Lamination: Lamination can double load capacities and beyond while using the same series of truss. Lamination can be achieved by placing truss on top of truss or side by side.

Compatibility: The 12” ModTruss series is Compatible with 12” Plated Entertainment Truss.

Cladding Made Easy: The flat surface of ModTruss, coupled with the numerous bolt holes, allows for a variety of cladding options.
