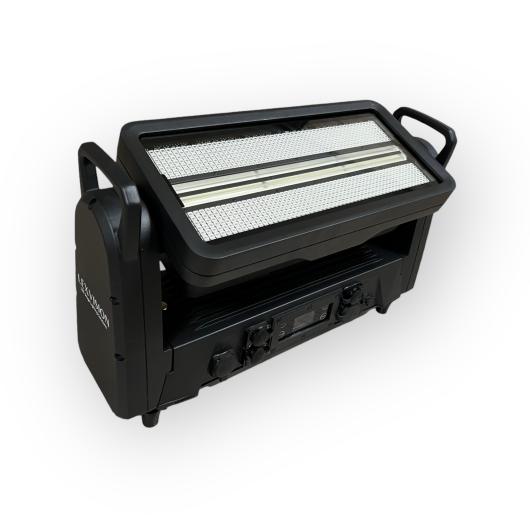

Lexvision LV Tilt Strobe - IP
Lexvision LV Tilt Strobe - IP
Description
LV-Tilt-Strobe IP – IP65 Hybrid Strobe with RGB & Tilt
The multifunctional strobe – for festivals, touring & outdoor stages
The LV-Tilt-Strobe IP merges high-output cool white strobes with RGB blades and motorized tilt movement, making it a true all-in-one solution: strobe, blinder, FX wash, and visual highlight. With full IP65 protection, it’s made for outdoor stages, night after night.
Already in use on numerous international tours, the LV-Tilt-Strobe IP delivers power, flexibility, and reliability where it counts most.
Tech Specs – Fact Sheet
Light Source
-
392 x 1.5W Cool White LEDs
-
784 x 1W RGB LEDs
-
Total power: 1400W
Optics
-
SMD LED Chips with 117° beam angle
-
RGB blades for wash/FX effects
-
Motorized Tilt movement
Control System
-
8–97 DMX channels
-
Control modes: DMX, RDM, ArtNet, Master-Slave, Auto
-
Seetronic 5-pin XLR IN/OUT
-
RJ45 connector
-
(Optional: 3-pin DMX)
Display & Interface
-
1.50" TFT LCD display
-
4-button navigation panel
Cooling & Protection
-
Active, temperature-regulated cooling
-
Over-temperature protection
-
IP65 rating (dust & water resistant)
Power Supply
-
1400W power supply
-
AC 100–240V, 50/60Hz
-
Seetronic IP65 Power IN/OUT
Installation
-
2x Omega clamp hanging points
-
1x Safety attachment point
Dimensions & Weight
-
Dimensions: 160(D) x 494(W) x 316(H) mm
-
Net weight: 11 kg
