Facts:

• 7* 10W RGBW LED Engine
• 8 degree Beam angle
• filters (Frost & other beam angles)
• W-DMX by AB Solutions
• Battery Power up to 25h
• Seetronic connectors

LV-Tilt-Strobe IP – IP65 Hybrid Strobe with RGB & Tilt

The multifunctional strobe – for festivals, touring & outdoor stages

The LV-Tilt-Strobe IP merges high-output cool white strobes with RGB blades and motorized tilt movement, making it a true all-in-one solution: strobe, blinder, FX wash, and visual highlight. With full IP65 protection, it’s made for outdoor stages, night after night.

Already in use on numerous international tours, the LV-Tilt-Strobe IP delivers power, flexibility, and reliability where it counts most.

Tech Specs – Fact Sheet

Light Source

• 392 x 1.5W Cool White LEDs

• 784 x 1W RGB LEDs

• Total power: 1400W

Optics

• SMD LED Chips with 117° beam angle

• RGB blades for wash/FX effects

• Motorized Tilt movement

Control System

• 8–97 DMX channels

• Control modes: DMX, RDM, ArtNet, Master-Slave, Auto

• Seetronic 5-pin XLR IN/OUT

• RJ45 connector

• (Optional: 3-pin DMX)

Display & Interface

• 1.50" TFT LCD display

• 4-button navigation panel

Cooling & Protection

• Active, temperature-regulated cooling

• Over-temperature protection

• IP65 rating (dust & water resistant)

Power Supply

• 1400W power supply

• AC 100–240V, 50/60Hz

• Seetronic IP65 Power IN/OUT

Installation

• 2x Omega clamp hanging points

• 1x Safety attachment point

Dimensions & Weight

• Dimensions: 160(D) x 494(W) x 316(H) mm

• Net weight: 11 kg

LV180 Beam IP65 – Compact Outdoor Beam Moving Head

2025 Release – Sharp beams in a weatherproof housing.

The LV180 Beam completes Lexvision’s beam lineup with a lightweight, compact IP65 unit. Featuring a razor-sharp 1.8° beam angle, frost filter, and IP65 protection, it’s the perfect fit for mid-sized festival stages, open-air clubs, and compact touring rigs.

Small in size, big in impact – the LV180 Beam is built for outdoor performance without compromise.

Tech Specs – Fact Sheet

Light Source

• 180W High-Performance White LED Chip

Optics

• Glass lens with fixed 1.8° beam angle

• Frost filter for smooth wash transitions

Control System

• 20–23 DMX channels

• Control modes: DMX, RDM, ArtNet, Master-Slave, Auto

• 3 & 5-pin XLR IN/OUT

• Multiple internal presets

Display & Interface

• 2.00" TFT LCD display

• 4-button navigation

Cooling & Protection

• Active, temperature-regulated cooling

• Over-temperature protection

• IP65 rating (dust & water resistant)

Power Supply

• 250W power supply

• AC 100–240V, 50/60Hz

• Seetronic Power IN/OUT

Installation

• 2x Omega clamp mounting points

• 1x Safety attachment point

Dimensions & Weight

• Dimensions: 585(H) x 378(W) x 248(D) mm

• Net weight: 16.5 kg

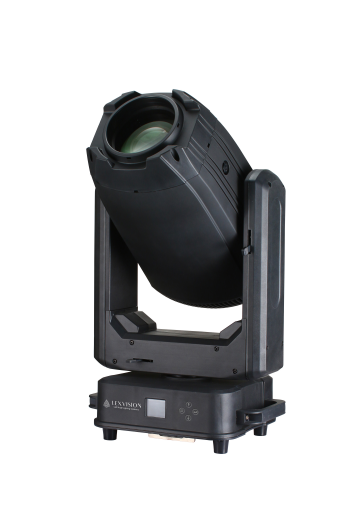

LV600 IP – High-End Outdoor Moving Head with 600W Power

2025 Release – Designed for the biggest stages.

The LV600 IP is Lexvision’s flagship moving head: a high-end, full-featured outdoor unit built to deliver unmatched performance in professional touring, arena shows, and large-scale productions. Equipped with a powerful 600W LED engine, full IP65 protection, motorized framing system, CMY/CTO, animation wheel, and a wide 3–42° zoom range – it’s packed with innovation and designed to impress.

Made for the road. Engineered for impact.

Tech Specs – Fact Sheet

Light Source

• 600W High-Performance White LED Chip

Optics

• Glass lens with motorized 3–42° zoom

• Frost filter

• CMY color mixing

• CTO correction filter

• Color wheel

• Animation wheel

• Motorized Framing System (Shutters)

Control System

• 38–60 DMX channels

• Control modes: DMX, RDM, ArtNet, Master-Slave, Auto

• 3 & 5-pin XLR IN/OUT

• Multiple internal programs

Display & Interface

• 2.00" TFT LCD display

• 4-button navigation

Cooling & Protection

• Active, temperature-regulated cooling

• Over-temperature protection

• IP65 rated (dust & water resistant)

Power Supply

• 850W power supply

• AC 100–240V, 50/60Hz

• Seetronic Power IN/OUT

Installation

• 2x Omega clamp mounting points

• 1x Safety attachment point

Dimensions & Weight

• Dimensions: 678(H) x 362(W) x 260(D) mm

• Net weight: 29 kg

Facts:

• 7* 10W RGBW LED Engine
• 8 degree Beam angle
• filters (Frost & other beam angles)
• W-DMX by AB Solutions
• Battery Power up to 25h
• Seetronic connectors

LV-Tilt-Strobe IP – IP65 Hybrid Strobe with RGB & Tilt

The multifunctional strobe – for festivals, touring & outdoor stages

The LV-Tilt-Strobe IP merges high-output cool white strobes with RGB blades and motorized tilt movement, making it a true all-in-one solution: strobe, blinder, FX wash, and visual highlight. With full IP65 protection, it’s made for outdoor stages, night after night.

Already in use on numerous international tours, the LV-Tilt-Strobe IP delivers power, flexibility, and reliability where it counts most.

Tech Specs – Fact Sheet

Light Source

• 392 x 1.5W Cool White LEDs

• 784 x 1W RGB LEDs

• Total power: 1400W

Optics

• SMD LED Chips with 117° beam angle

• RGB blades for wash/FX effects

• Motorized Tilt movement

Control System

• 8–97 DMX channels

• Control modes: DMX, RDM, ArtNet, Master-Slave, Auto

• Seetronic 5-pin XLR IN/OUT

• RJ45 connector

• (Optional: 3-pin DMX)

Display & Interface

• 1.50" TFT LCD display

• 4-button navigation panel

Cooling & Protection

• Active, temperature-regulated cooling

• Over-temperature protection

• IP65 rating (dust & water resistant)

Power Supply

• 1400W power supply

• AC 100–240V, 50/60Hz

• Seetronic IP65 Power IN/OUT

Installation

• 2x Omega clamp hanging points

• 1x Safety attachment point

Dimensions & Weight

• Dimensions: 160(D) x 494(W) x 316(H) mm

• Net weight: 11 kg

LV180 Beam IP65 – Compact Outdoor Beam Moving Head

2025 Release – Sharp beams in a weatherproof housing.

The LV180 Beam completes Lexvision’s beam lineup with a lightweight, compact IP65 unit. Featuring a razor-sharp 1.8° beam angle, frost filter, and IP65 protection, it’s the perfect fit for mid-sized festival stages, open-air clubs, and compact touring rigs.

Small in size, big in impact – the LV180 Beam is built for outdoor performance without compromise.

Tech Specs – Fact Sheet

Light Source

• 180W High-Performance White LED Chip

Optics

• Glass lens with fixed 1.8° beam angle

• Frost filter for smooth wash transitions

Control System

• 20–23 DMX channels

• Control modes: DMX, RDM, ArtNet, Master-Slave, Auto

• 3 & 5-pin XLR IN/OUT

• Multiple internal presets

Display & Interface

• 2.00" TFT LCD display

• 4-button navigation

Cooling & Protection

• Active, temperature-regulated cooling

• Over-temperature protection

• IP65 rating (dust & water resistant)

Power Supply

• 250W power supply

• AC 100–240V, 50/60Hz

• Seetronic Power IN/OUT

Installation

• 2x Omega clamp mounting points

• 1x Safety attachment point

Dimensions & Weight

• Dimensions: 585(H) x 378(W) x 248(D) mm

• Net weight: 16.5 kg
