- TÜV certification

- 3-year guarantee

- LEDTEK Rental Pool

- static calculations

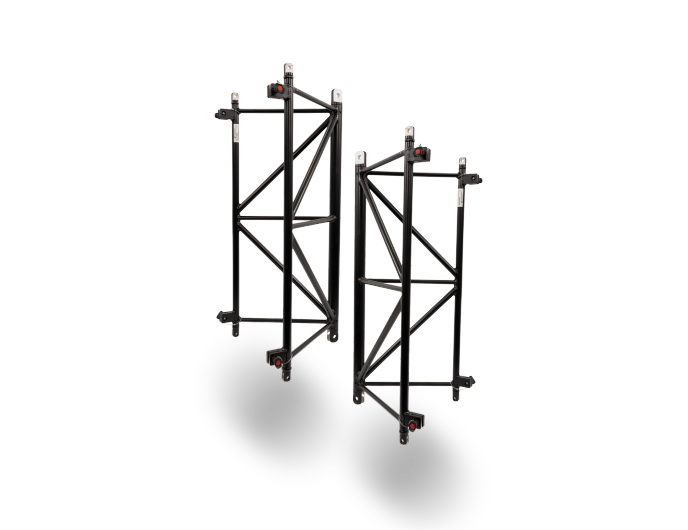

The LEDTEK Tri-Frame was developed specifically for the PRO-series. Its features make it an Allround-talent. The TÜV-certified stabilisation and stiffening option is compatible with the P4+WH PRO as well as the P2+BL PRO. Hence, it is not restricted to either indoor or outdoor use.

In cooperation with A.T.C. and EXPO Engineering the Tri-Frame was developed to cover the use of an LED wall under the influence of wind. Its strengths are particularly evident in the fact that it makes large outdoor LED set-ups possible in a much more time- and material-efficient manner than other methods of construction. With the simple plug-in system of the Tri-Frames, work can be done quickly and there is no need for tedious piping. For example, the Tri-Frame makes outdoor structures of up to 12 m span width possible at wind speeds of up to 30 m/s, which only have to be supported horizontally twice.

Furthermore, the Tri-Frame is a main component with a number of possibilities of the LED assembly. Thus, indoor structures of up to 8 m and outdoor structures of up to 7 m can be realised with the Tri-Frame studding. It can also be used in combination with Layher scaffolding for assembling. Particularly narrow LED walls are possible thanks to the Tri-Frame base plate, and the LED trolley also works with the three-point truss as a stabilising element.

The Tri-Frame is 480 mm wide and 1050 mm high. It holds exactly one large or two small LEDTEK modules.
