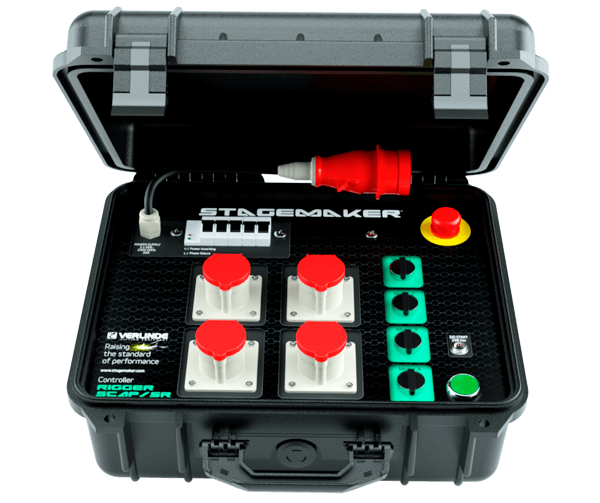

Direct control controller in suite case for 4 or 8 channels

Rigger Rack 19”Direct control hoist
This range of 4/8/12 channels 19” controller rack is designed for our A Stagemaker Range.

• Phase detection and automatic correction of the phases for all the range RIGGER.
• Standard built-in cabling for possible remote (wired or wireless) for all the range RIGGER rack 19”.
• Standard built in Master/slave functionality.
• Power supply : 400/ 415 V 3PH+N – 50/60Hz.
• Power-in plug 32 A 5p CE.
• Multi connector output one for each 4 motors.
• 24/48 Vdc control voltage.
• Short circuit protections : power & control circuit.
• Thermal protection per group of 4 motors.
• Max. power per channel : 1,8 kW / 400 V 3 PH.

Options available :

• Wired remote control : remote for 4, 8 and 12 channels controller (25 m of cable).
• Radio remote control : 32 channels radio receiver 19’’ and remote emitter for controller type R4SRA, R8SRA or R12SRA.
• Load measuring : XLR connector and 2 m cable for connection to Set point, for integration of Stagemaker Load Cell system. 19’’ rack central radio receiver for load cell.
• Flight cases : large choice of Flight case 19’’ available in Premium or Eco version, you can see here.

Theater Rack 19”Low voltage hoist
This family of 4/8/12 channels controller is designed for our B Stagemaker range.

• Phase detection and automatic correction of the phases for all the range THEATER.
• Standard built-in cabling for possible remote option (wired or wireless) for all the range THEATER.
• Standard built in Master/slave functionality.
• Power supply : 400/415 V 3PH ~N – 50/60Hz.
• Power supply : 400/415 V 3PH ~N – 50/60Hz.
• Power-in plug 32 A 5p CE.
• 6 poles connectors output per hoist (type HE6).
• 24/48 Vdc control voltage.
• Short circuit protections for power and control circuit.
• Thermal protection per group of 4 motors.
• Max. power per channel : 1,8 kW / 400 V 3PH.

Options available :

• Wired remote control : remote for 4, 8 and 12 channels controller (25 m of cable).
• Radio remote control : 32 channels radio receiver 19’’ and remote emitter for controller type R4SRB, R8SRB or R12SB.
• Altimetry measure and automation : additional module for individual or group hoist positionning managment. To be integrate with B type hoist with built-in encoder.
• Load measuring : XLR connector and 2 m cable for connection to Set point, for integration of Stagemaker Load Cell system.
• Flight cases : large choice of Flight case 19’’ available in Premium or Eco version you can see here.

Version A : motor 3 phases with direct control

• 3 phase hoists (400 V/415 V/3 Ph/50 Hz) with direct voltage control (ACF board)
• IP66 protection as standard
• BGV-D8+ version as standard
• Complies with standards : CE, DIN
• Easy changeover for using motor in climbing hoist configuration or industrial suspension
• Hoist delivered with G100 black electro galvanized chain (except SR25)
• “CHAINFlux MKII” specially designed chain guide
• “PerfectPush” : new load wheel with 5 pockets and 5 intermediate guide teeth
• Class F hoisting motor
• Adjustable torque limiter
• 2 brakes
• 1 brake as option
• Self adjusting, maintenance free, DC disk brake
• Available power supply : 400-415 V/3 Ph/50 Hz
• Available power supply : 400-415 V/3 Ph/60 Hz
• Available power supply : 230 V/3 Ph/50 Hz
• Black painted hoist body (RAL 7021)
• Rotating upper and lower hooks
• Upper hook fixed and lower hook rotating (industrial suspension configuration)
• Suspension bracket instead of upper hook (SL5 & 10)
• Retractable, rubber clad ergonomic handgrips (except SR1 in option and not available on SR25)
• Lifting hook has an ergonomic, rubber clad, gripping surface
• High capacity, reversible chain bag
• Standards connection cable : CE plug P17 type, 4 poles 16A (red : power supply/control)

Options :

• BGV-D8 version
• 1 brake
• Available power supply : 400-415 V/3 Ph/60 Hz
• Available power supply : 230 V/3 Ph/50 Hz
• Upper hook fixed and lower hook rotating (industrial suspension configuration)
• Suspension bracket instead of upper hook (SL5 & 10)

Version B : motor 3 phases with low voltage control

• 3 phase hoists (400 V/415 V/3 Ph/50 Hz) with low voltage control (48V)
• IP66 protection as standard
• BGV-D8+ version as standard
• Complies with standards : CE, DIN
• Easy changeover for using motor in climbing hoist configuration or industrial suspension
• Hoist delivered with G100 black electro galvanized chain (except SR25)
• “CHAINFlux MKII” specially designed chain guide
• “Limitflux” : magnetic limit switch (SL5 and SL10 1 fall)
• Electric limit switch on SR1,SL10 (2 falls) and 25
• “PerfectPush” : new load wheel with 5 pockets and 5 intermediate guide teeth
• Class F hoisting motor
• Adjustable torque limiter
• 2 brakes
• 1 brake as option
• Self adjusting, maintenance free, DC disk brake
• Available power supply : 400-415 V/3 Ph/50 Hz
• Black painted hoist body (RAL 7021)
• Rotating upper and lower hooks
• Retractable, rubber clad ergonomic handgrips (except SR1 in option and not available on SR25)
• Lifting hook has an ergonomic, rubber clad, gripping surface
• High capacity, reversible chain bag
• Standards connection cable : CE plug P17 type, 4 poles 16A (red : power supply and yellow : control)

Options :

• BGV-D8 version
• Gear limit switches 2 steps
• Gear limit switches 4 steps
• 1 brake
• Available power supply : 400-415 V/3 Ph/60 Hz
• Available power supply : 230 V/3 Ph/50 Hz
• Upper hook fixed and lower hook rotating (industrial suspension configuration)
• Suspension bracket instead of upper hook (SL5 & 10)

Characteristics

• Configuration type “trunk”.
• Top hinge cover
• Panel all Birch shot 9 mm finish hexa black ultra resistant.
• 2 fasteners recessed Butterfly (PENN).
• 2 stop cover (PENN).
• 8 recessed spring-loaded handles (PENN).
• 4 casters 2 locking on turntables D100.
• 4 cup stacking.
• Tipage pads on the sides.
• 2 visualization windows.
• Sticker STAGEMAKER® Marking.
• Sticker production plate.

Inside disposition

• Mobile Cribs Sheet for easy version or double brake (ajustables).
• 2 Trays chain at the center.

Rigger Rack 19”Direct control hoist
This range of 4/8/12 channels 19” controller rack is designed for our A Stagemaker Range.

• Phase detection and automatic correction of the phases for all the range RIGGER.
• Standard built-in cabling for possible remote (wired or wireless) for all the range RIGGER rack 19”.
• Standard built in Master/slave functionality.
• Power supply : 400/ 415 V 3PH+N – 50/60Hz.
• Power-in plug 32 A 5p CE.
• Multi connector output one for each 4 motors.
• 24/48 Vdc control voltage.
• Short circuit protections : power & control circuit.
• Thermal protection per group of 4 motors.
• Max. power per channel : 1,8 kW / 400 V 3 PH.

Options available :

• Wired remote control : remote for 4, 8 and 12 channels controller (25 m of cable).
• Radio remote control : 32 channels radio receiver 19’’ and remote emitter for controller type R4SRA, R8SRA or R12SRA.
• Load measuring : XLR connector and 2 m cable for connection to Set point, for integration of Stagemaker Load Cell system. 19’’ rack central radio receiver for load cell.
• Flight cases : large choice of Flight case 19’’ available in Premium or Eco version, you can see here.

Theater Rack 19”Low voltage hoist
This family of 4/8/12 channels controller is designed for our B Stagemaker range.

• Phase detection and automatic correction of the phases for all the range THEATER.
• Standard built-in cabling for possible remote option (wired or wireless) for all the range THEATER.
• Standard built in Master/slave functionality.
• Power supply : 400/415 V 3PH ~N – 50/60Hz.
• Power supply : 400/415 V 3PH ~N – 50/60Hz.
• Power-in plug 32 A 5p CE.
• 6 poles connectors output per hoist (type HE6).
• 24/48 Vdc control voltage.
• Short circuit protections for power and control circuit.
• Thermal protection per group of 4 motors.
• Max. power per channel : 1,8 kW / 400 V 3PH.

Options available :

• Wired remote control : remote for 4, 8 and 12 channels controller (25 m of cable).
• Radio remote control : 32 channels radio receiver 19’’ and remote emitter for controller type R4SRB, R8SRB or R12SB.
• Altimetry measure and automation : additional module for individual or group hoist positionning managment. To be integrate with B type hoist with built-in encoder.
• Load measuring : XLR connector and 2 m cable for connection to Set point, for integration of Stagemaker Load Cell system.
• Flight cases : large choice of Flight case 19’’ available in Premium or Eco version you can see here.

Version A : motor 3 phases with direct control

• 3 phase hoists (400 V/415 V/3 Ph/50 Hz) with direct voltage control (ACF board)
• IP66 protection as standard
• BGV-D8+ version as standard
• Complies with standards : CE, DIN
• Easy changeover for using motor in climbing hoist configuration or industrial suspension
• Hoist delivered with G100 black electro galvanized chain (except SR25)
• “CHAINFlux MKII” specially designed chain guide
• “PerfectPush” : new load wheel with 5 pockets and 5 intermediate guide teeth
• Class F hoisting motor
• Adjustable torque limiter
• 2 brakes
• 1 brake as option
• Self adjusting, maintenance free, DC disk brake
• Available power supply : 400-415 V/3 Ph/50 Hz
• Available power supply : 400-415 V/3 Ph/60 Hz
• Available power supply : 230 V/3 Ph/50 Hz
• Black painted hoist body (RAL 7021)
• Rotating upper and lower hooks
• Upper hook fixed and lower hook rotating (industrial suspension configuration)
• Suspension bracket instead of upper hook (SL5 & 10)
• Retractable, rubber clad ergonomic handgrips (except SR1 in option and not available on SR25)
• Lifting hook has an ergonomic, rubber clad, gripping surface
• High capacity, reversible chain bag
• Standards connection cable : CE plug P17 type, 4 poles 16A (red : power supply/control)

Options :

• BGV-D8 version
• 1 brake
• Available power supply : 400-415 V/3 Ph/60 Hz
• Available power supply : 230 V/3 Ph/50 Hz
• Upper hook fixed and lower hook rotating (industrial suspension configuration)
• Suspension bracket instead of upper hook (SL5 & 10)

Version B : motor 3 phases with low voltage control

• 3 phase hoists (400 V/415 V/3 Ph/50 Hz) with low voltage control (48V)
• IP66 protection as standard
• BGV-D8+ version as standard
• Complies with standards : CE, DIN
• Easy changeover for using motor in climbing hoist configuration or industrial suspension
• Hoist delivered with G100 black electro galvanized chain (except SR25)
• “CHAINFlux MKII” specially designed chain guide
• “Limitflux” : magnetic limit switch (SL5 and SL10 1 fall)
• Electric limit switch on SR1,SL10 (2 falls) and 25
• “PerfectPush” : new load wheel with 5 pockets and 5 intermediate guide teeth
• Class F hoisting motor
• Adjustable torque limiter
• 2 brakes
• 1 brake as option
• Self adjusting, maintenance free, DC disk brake
• Available power supply : 400-415 V/3 Ph/50 Hz
• Black painted hoist body (RAL 7021)
• Rotating upper and lower hooks
• Retractable, rubber clad ergonomic handgrips (except SR1 in option and not available on SR25)
• Lifting hook has an ergonomic, rubber clad, gripping surface
• High capacity, reversible chain bag
• Standards connection cable : CE plug P17 type, 4 poles 16A (red : power supply and yellow : control)

Options :

• BGV-D8 version
• Gear limit switches 2 steps
• Gear limit switches 4 steps
• 1 brake
• Available power supply : 400-415 V/3 Ph/60 Hz
• Available power supply : 230 V/3 Ph/50 Hz
• Upper hook fixed and lower hook rotating (industrial suspension configuration)
• Suspension bracket instead of upper hook (SL5 & 10)
