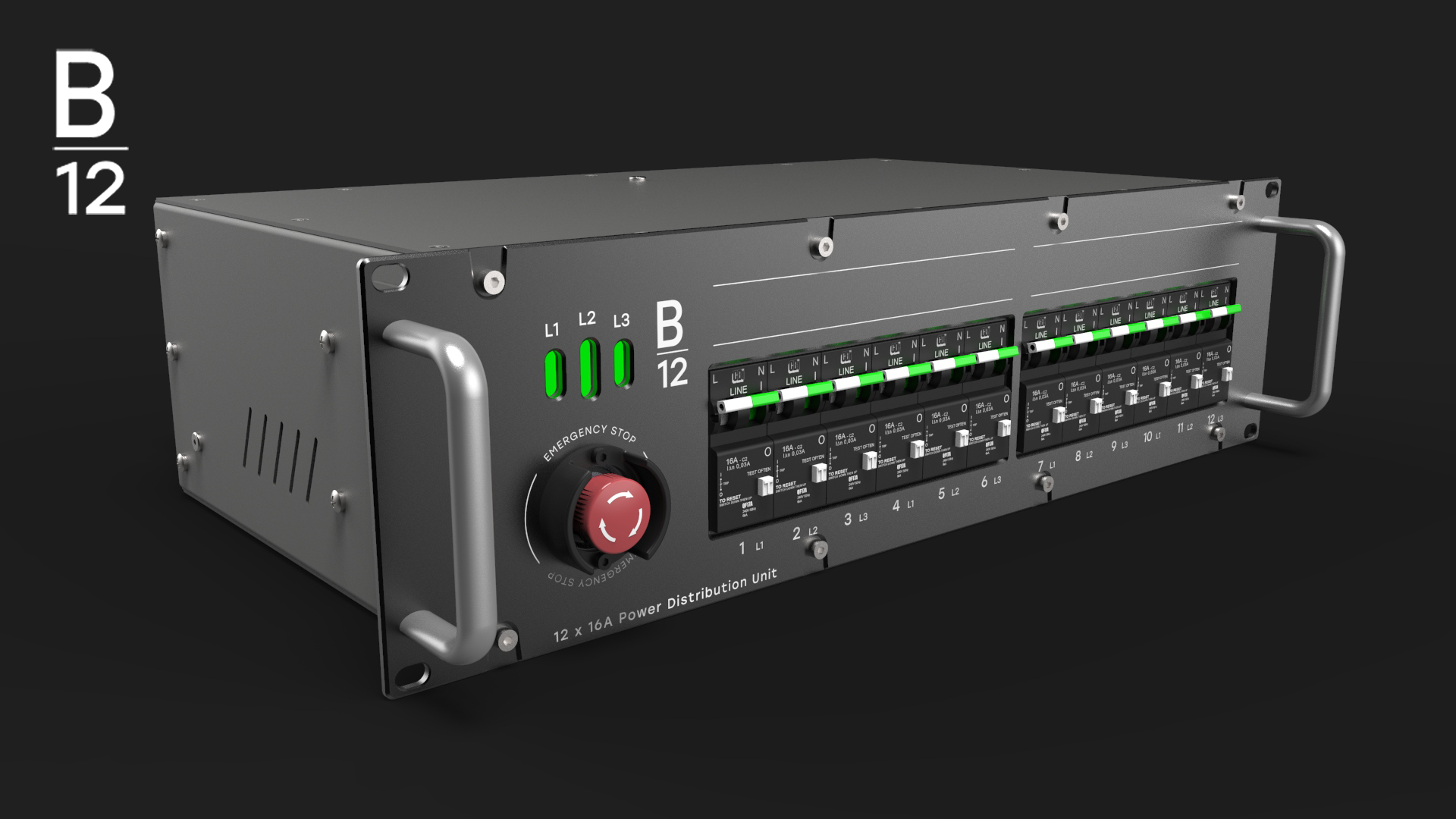

The B12 is a twelve-channel power distribution unit suited for a wide range of applications and purposes that need reliable power delivered without interruption. Included in a very compact form factor are superior 2-pole hydraulic-magnetic breakers, individual earth protection per channel, loss of neutral protection, emergency stop, a fixed power cable and a single-phase convenience socket that can be adapted for different markets depending on your needs. Built on the same proven technologies as the C-series the B12 gives you the same high build quality and the same superior protection for you and your gear at a very competitive price. The B12 integrates with other B-series products such as the bigger B24 and the B-quad 3-phase distribution unit to form a compact, reliable, and truly flexible system to meet the needs of the event and show production markets that don’t have the need for individual current measurement and remote monitoring.

It’s time to B properly protected!

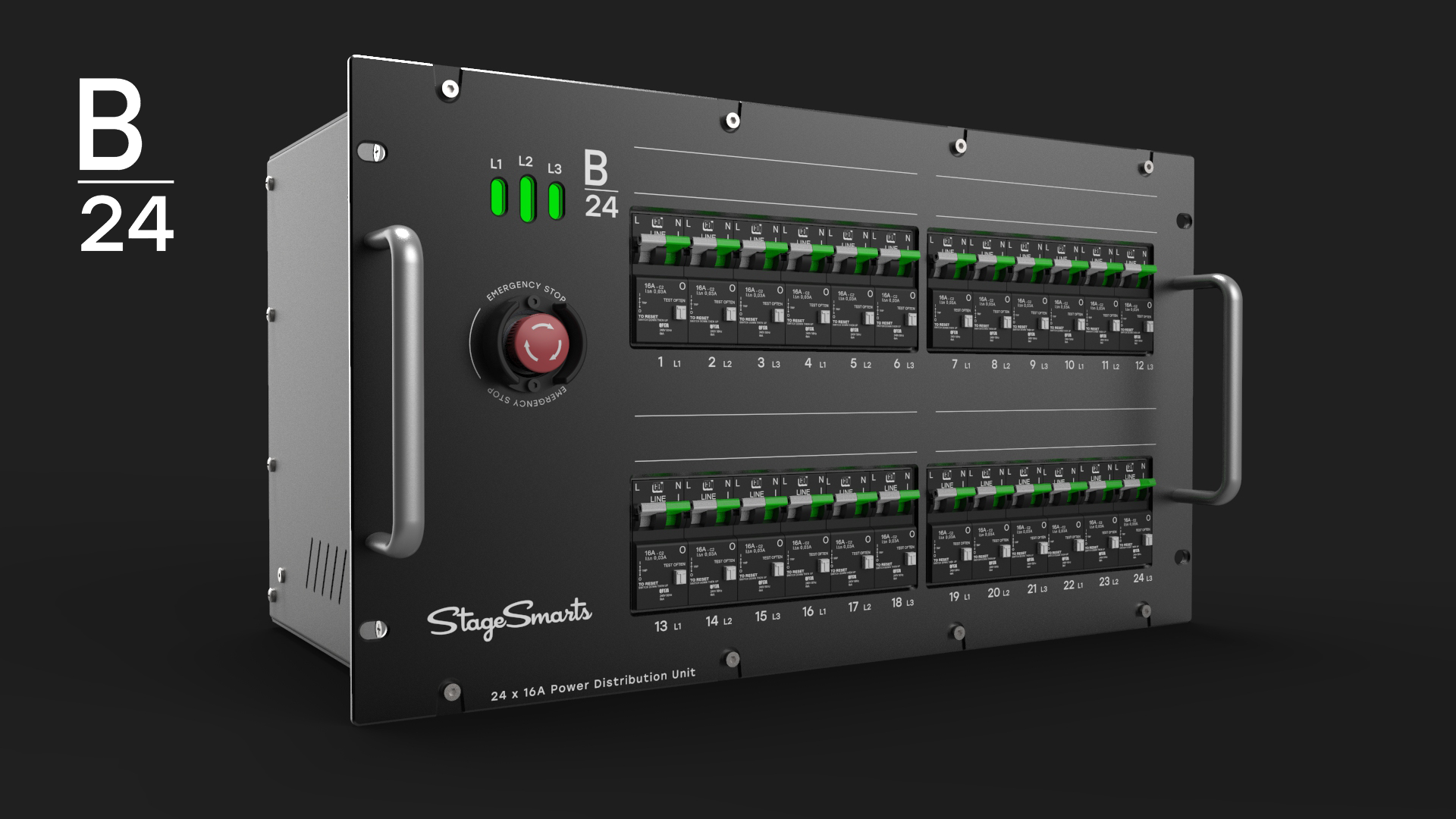

The B24 is a twenty-four-channel power distribution unit suited for a wide range of applications and purposes that need reliable power delivered without interruption. At only six rack units it is a very compact power distro that includes superior 2-pole hydraulic-magnetic breakers, individual earth protection per channel, loss of neutral protection, emergency stop, a fixed power cable and a single-phase convenience socket that can be adapted for different markets depending on your market and needs. Built on the same proven technologies as the C-series the B24 gives you the same high build quality and the same superior protection for you and your gear to a very competitive price. The B24 integrates with other B-series products such as the smaller B12 and the B-quad 3-phase distribution unit to form a compact, reliable, and truly flexible system to meet the needs of the event and show production markets that don’t have the need for individual current measurement and remote monitoring.

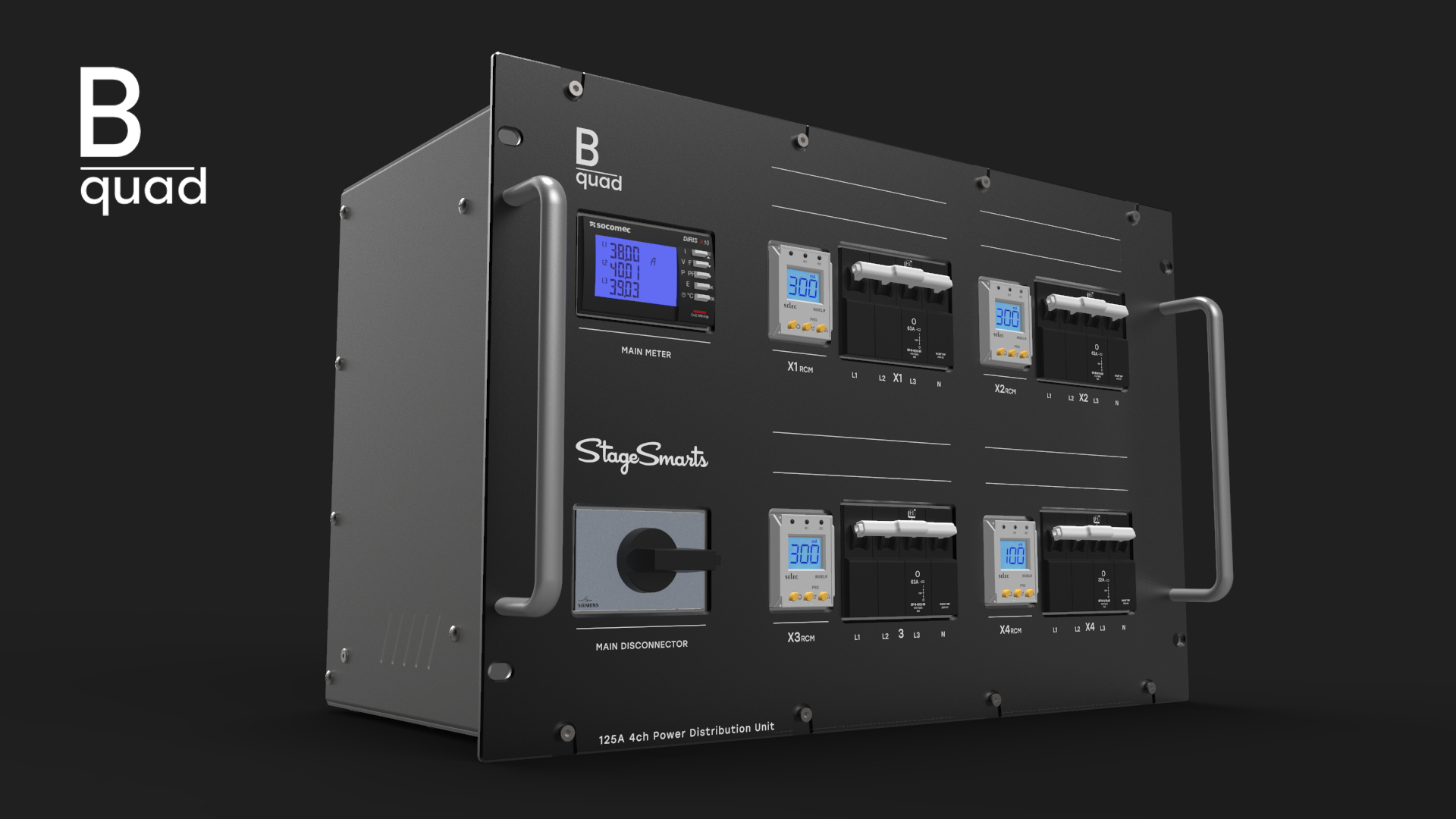

The B-quad serves as the heart in any B-series power distribution solution together with the B12 and the B24 units. It provides power and metering for up to four separate B-series units but can of course be used in any situation where a reliable and flexible 3-phase power distribution unit is needed. The B-quad is a fully customizable, four output, 3-phase power distribution that’s fitted with the same high-grade hydraulic-magnetic circuit breakers as the acclaimed C-series, providing you with market-leading thermal stability, precise specifications, and superior handling of intermittent peak currents.

The B-quad can be customized to fit your specific needs on order, enabling you to choose between 125A or 63A power-inlet connections. An optional Diris A10 multimeter can be fitted enabling reliable measurements of total current consumption, voltages and more. Each of the four outputs can be fitted with 16, 32 or 63A circuit breakers and corresponding CEE output connectors. Furthermore, each separate output can have an individual programmable residual current measurement meter fitted, enabling you to fine-tune the output residual current protection to fit your needs in any given situation without tampering with the safety of people and equipment.

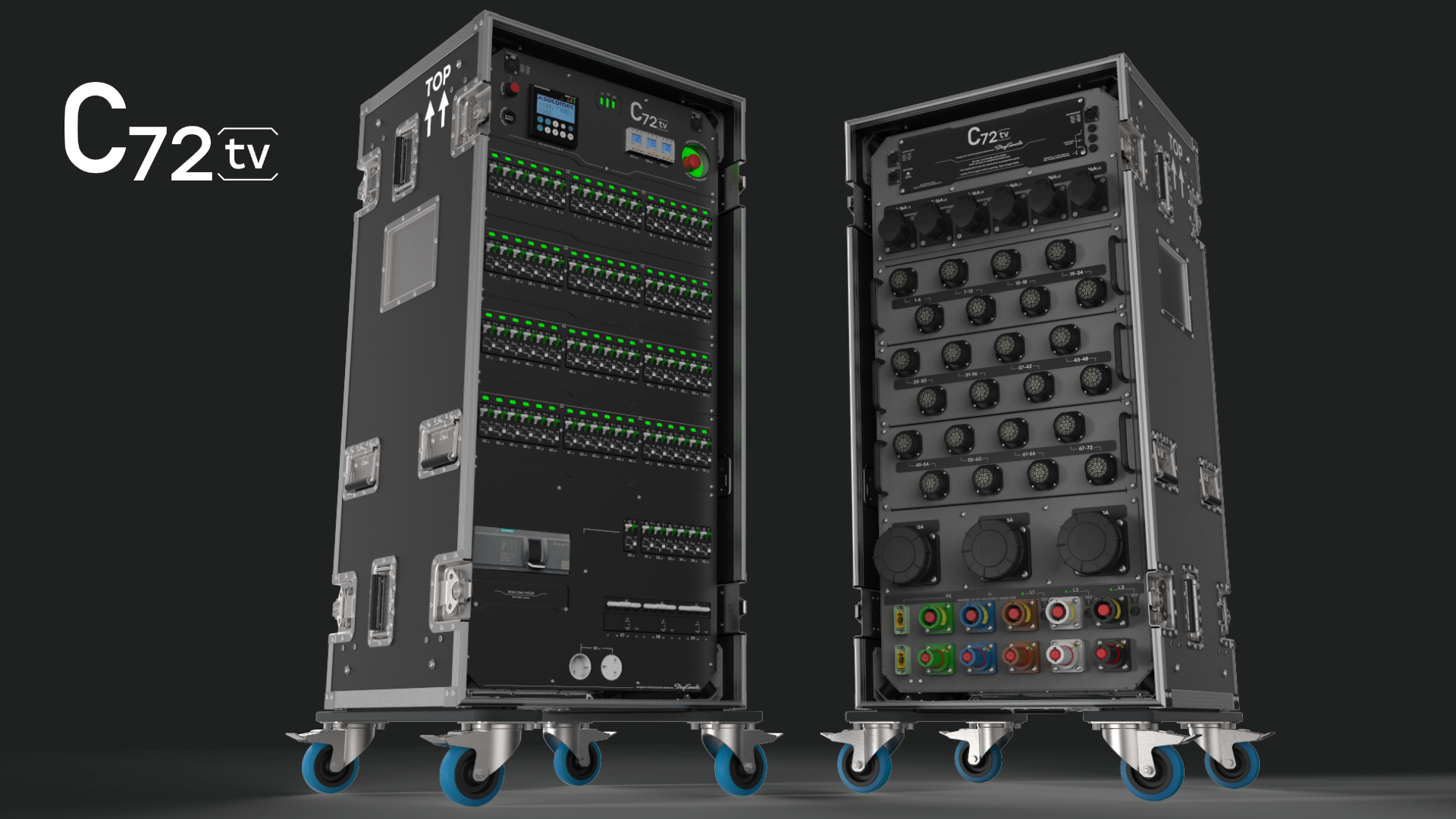

The C72tv is a 400A large-scale power distribution unit designed to meet all the requirements of delivering safe and reliable power to the modern-day entertainment industry. Seventy-two channels equipped with industrial-grade hydraulic-magnetic breakers and very precise individual residual current detection on each output. Thermal stability, better tolerance against earth-leakage and better handling of intermittent peak currents will enable you to connect even more complex loads on each channel.

The C72tv enables you to adapt your outputs to any situation with its quick-change modular output boxes. Change between different connector options in minutes depending on what’s needed for the client or fix a broken connector instantly during a show. Extending the unit's usability, even more, are the seven auxiliary 1-phase outputs and up to three 3-phase outputs that can be customized to your needs. Same high-grade breakers as in the rest of the unit but with separate adjustable residual current devices for the 3-phase outputs.

Comprehensive input analysis of all voltages and currents feeding the unit and our proprietary load sensors on each channel gives you all the relevant data on what’s going on in your system. Indications on the front panel of overloads, lost loads or normal operation for each individual channel are easily viewed even from a distance together with the indicators for overall system status. The C72tv gives you full remote access to all monitored data in real-time over any standard network and on any device running a web browser, no special software or network is needed.

The internal web server gives you the ability to name each unit, colour-code and name all channels, set up extended supervision on critical channels and monitor the total current for each connected multicore-cable. The status of the main-breaker, the E-stop, neutral protection and the unit’s internal temperature can also be monitored in the online interface. All settings are automatically stored internally and travel with the unit, data can be imported and exported in standard excel-format. The onboard CPUs battery backup ensures that the C72tv will give you relevant information about what’s going on even during a total power failure to help you find and correct any problem rapidly. The whole unit is protected in its custom flight case and floats freely in an integrated shockproof suspension system

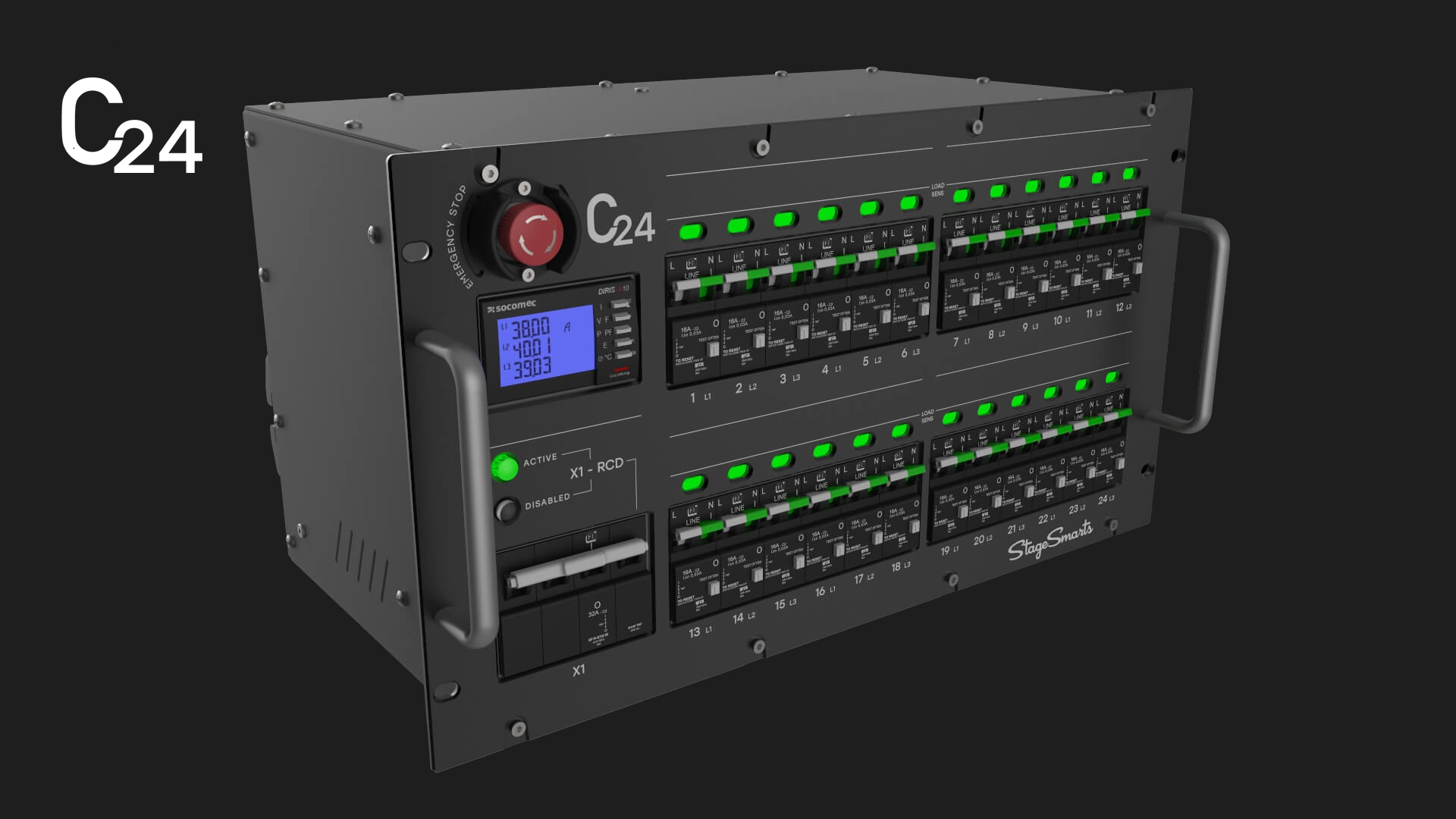

The C24 is a twenty-four-channel power distribution unit designed for the needs of the entertainment industry. Perfectly suited to power LED screens, intelligent lighting, audio systems and all of the complex loads that can be a real challenge to handle without interruptions.

Included in a very compact form factor are superior 2-pole hydraulic-magnetic breakers, individual earth protection per channel, loss of neutral protection, emergency stop and a disconnectable power cable. Channel 21-23 are duplicated with True1 connectors and channel 24 are duplicated with a convenience socket that can be customized for different markets.

The 32A 3-phase output on the C24 has a 4-pole breaker with a separate adjustable residual current relay. Current and time can easily be optimized for any load condition and the RCD relay can be totally disabled with a 2-step operation. The status of the RCD is clearly visible on the front panel to avoid any uncertainties. The RCD disable function can be locked in any mode of operation.

The C24 has a unique real-time load monitoring system that clearly displays what’s going on for each individual channel. The LED indicator signals green under normal load conditions and signals red when an overload occurs. The load sensor can register loads as small as approximately 5 watts.

The optional webserver and processing card give the C24 the ability to be remotely monitored on any device with a web browser on any standard network. Main meter measurement, breaker status, neutral error status, the temperature can all be streamed in real-time along with the current for all individual channels. Units, cables and channels can be named and colour-coded, notifications can warn you if something is out of expected operation.

The C24 can seamlessly combine with other StageSmarts products and integrate perfectly into bigger systems.
