LRS series

1.Various panel sizes: 500x500/750/1000x40mm;500/750/1000x250x40mm , All sizes can be mixed splicing

2.Flexible Splicing: Mal-posed splicing/90° Rotated splicing/ Right angle/Concave & Convex

3.Wireless connect between modules and cabinet.

4.Hidden wiring design, clean backside.

5.Front and Rear maintenance.

6.Fast locks (Optional)

7.Intelligent modules (Optional)

8.Dual backups (Optional)

9.GOB Technology (Optional)

10.High brightness for SEMI-OUTDOOR (Optional)

11.Customizable back cover

12.Wall mounting/ Back-strip/Hanging/Stacking Installation.

COB display series

Pixel pitch：0.9375

Panel size(WxHxD)/(mm)：600*337.5*29.6

Module size(WxH)/(mm)：150*168.75

Panel Material：Die Casting Aluminum

Panel installation：Fix

Maintenance：Full Front

Brightness：600cd/㎡

Certification：CE\CB

Highlights：

1.Comfortable Viewing Experience：EBL+ technology，bring 15000:1 high contrast ratio

2.Energy Saving Design

3.3-in-1 Integrated Design: Power supply\HUB\system card

4.Ultra Light & Thin Design

5.High Protection and High Stability

Orientation: outdoor commercial display with small pitch

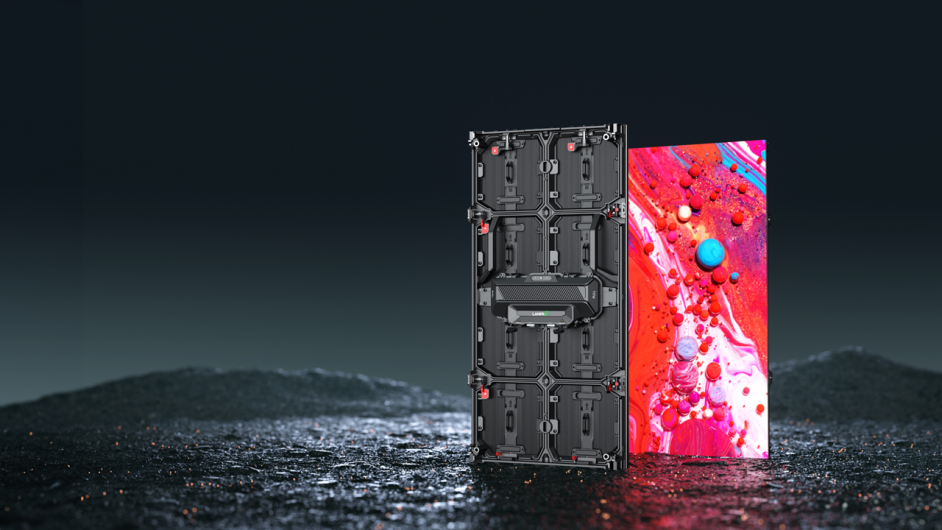

Cabinet size: 500 x 750 x 94 mm ;500 x 1000 x 94 mm

Pitch range: P2.6 2.9 3.9

Module size: 250 x 250 mm

Cabinet material: die-cast aluminum

Installation method: front and rear installation

Maintenance method: front and rear maintenance

Maintenance tool: curved tool (3.9), patented push pin tool (2.6 2.9)

Brightness: ≥ 5000 cd

Refresh rate: 3840 Hz

Correction storage: module storage

Highlights:

• The right angle solution only supports 500 x 750 cabinet.
• Standard patented module lock to achieve front and rear maintenance for small-pitch display screen.
• Support splicing with WX to realize plane + arc shape creative solutions and outdoor glasses-free 3D solutions.

Pixel Pitch（mm: P1.5\1.8\1. 9/2.3/2.6/2.9/3.9

Module Resolution /(mm): 250X250

Cabinet Dimensions (WxHxD)/(mm): 500*500*66

Cabinet weight (kg/panel)：7.3/pcs

Material：Die casting aluminum

Refresh Rate（Hz）：1920-3840

Gray（bit）：14

Brightness（nits）：700-1000

IP rating (Front/Rear)：IP40/IP20

Power consumption (maximum/average) W/m2：372/124
