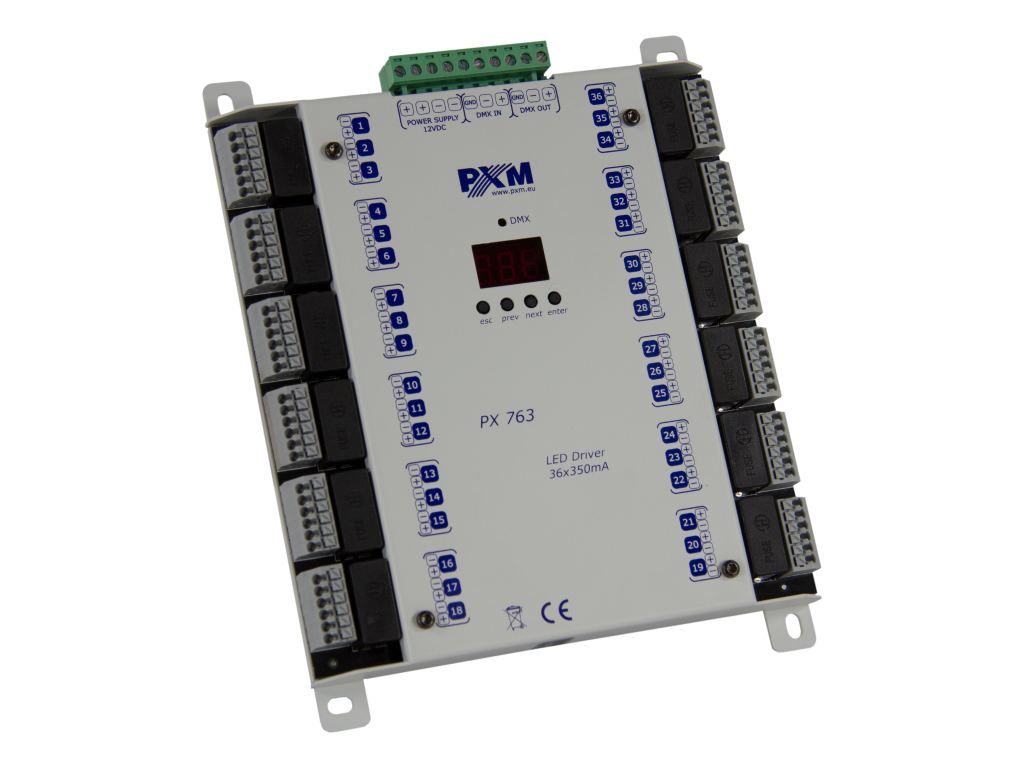

The PX763 is a 36-channel current driver created with a view to RGB and RGBW matrix systems, which is perfectly suitable for controlling lighting of large surfaces consisting of a lot of module elements. Facades may be such an example, LED screens or illuminated floors.

Using the built-in DMX signal receiver, it is possible to control all 36 channels with the DMX512 protocol. Supply voltage of 12V DC and high current capacity of outputs (max. 350mA) enable to connect a big number of LEDs – and in consequence, the effect of even illumination of the whole surface is obtained. Owing to the application of resolution 12bit for 274Hz and 10bit for 1kHz, controlling brightness of individual channels is completely smooth. The additional advantage is implementation of modern technology „flicker free” i.e. a possibility to select frequency of 1kHz. Applying it, the PX763 driver can be successfully used in installations created for the needs of the television industry. Moreover, the RDM protocol was implemented in the PX763. The device includes: channel addressing, 18 built-in programmes and one scene, which can be programmed. The programmes can be restored if the DMX signal disappears or in the effect mode. The little flat housing with the dimensions of 200 x 161 x 23mm is adjusted to wall mounting. Screw joints enable fast and easy installation.

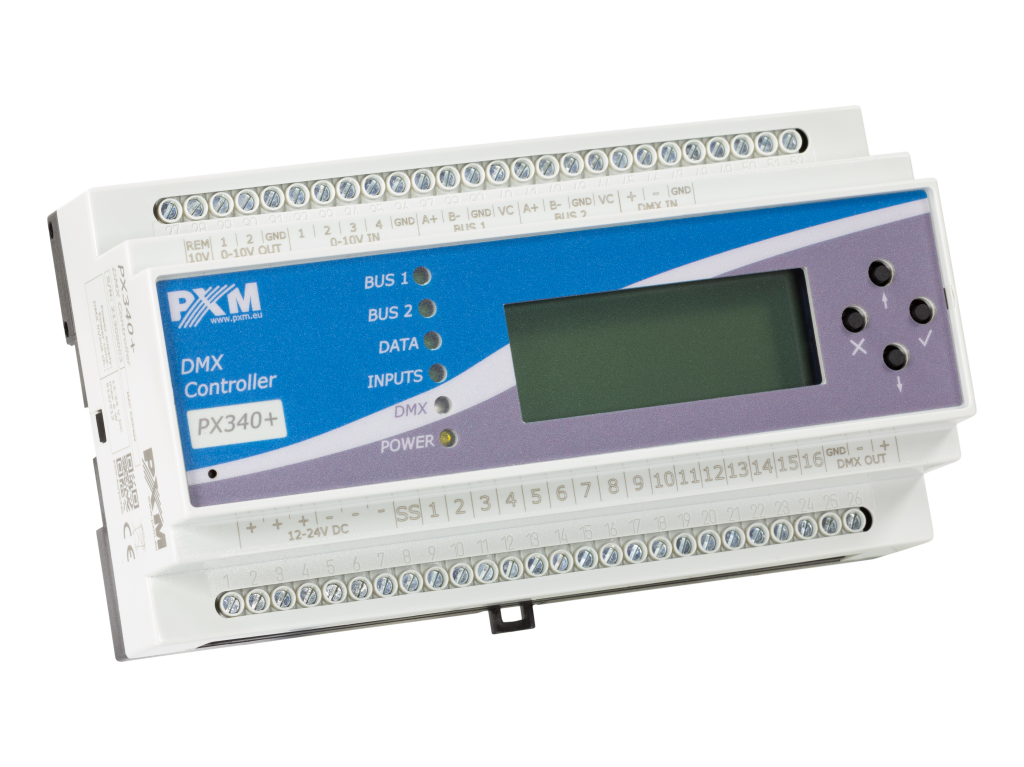

The PX340+ DMX Controller is an advanced architectural lighting controller that allows for controlling even the most complex lighting systems. With programmable functions, the device enables the control of lighting, multimedia, and other devices that are operated based on the DMX protocol. After the configuration, the controller operates independently.

The controller has 1 DMX output line (512 channels), 1 DMX input line, and it allows for triggering multiple configuration items at the same time. Events can be triggered by an astronomical clock, a real time clock, programmed timers, analogue or digital inputs, mobile device applications or via the Modbus protocol. An advanced PC application PxDesigner (Windows®, Mac®) allows for programming the device. The application has a built-in library of devices that can be distributed on a graphic project, which facilitates the creation of complex light shows, including ones that are synchronized with sound. The controller comes with an application for mobile devices (Android™) which enables simple control. The controller can be used to create up to 8 users with different access rights. There is an option to remotely log on to the controller from the external network.

The revolutionary new lighting design console with hardware built to last and modular software that can be moulded to your needs.  The simple, helpful and powerful Ray Console Software makes it easy to get started, regardless if you are lighting your first show or a complex production. The Q-Ray Console series comes in two sizes to best fit your needs. All consoles come with a 10“ capacitive touch screen and the modular Ray Console software. Both consoles are built out of quality steel and are finished with a luxurious hand rest for comfort.

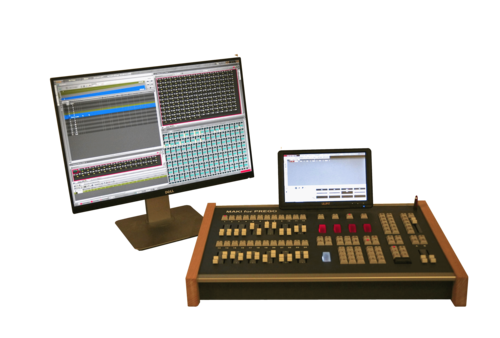

MAKI brings the power of PREGO to a compact, professional lighting control console.

MAKI features many advanced lighting control interfaces. These include: an illuminated intensity or assignable wheel, four illuminated attribute wheels, and a removable 10″ touchscreen.
Other controls include: a dedicated crossfader with GO button, numeric keypad, assigned function buttons, and 24 or 48 submasters.
DMX output is accessible via the DMX or Ethernet port. All common DMX network protocols are supported.
The selected PREGO license determines the number of available DMX universes.
PREGO lighting software has a proven track record in professional lighting. We have concentrated all the power of PREGO for practical use in theaters and studios. MAKI's rugged and portable design is ideal for dynamic and creative work environments. PREGO offers all the features needed in today's complex world of the entertainment industry.
The clear and logical structure of PREGO software is second to none. It is an easy to master but powerful tool for modern stage lighting.

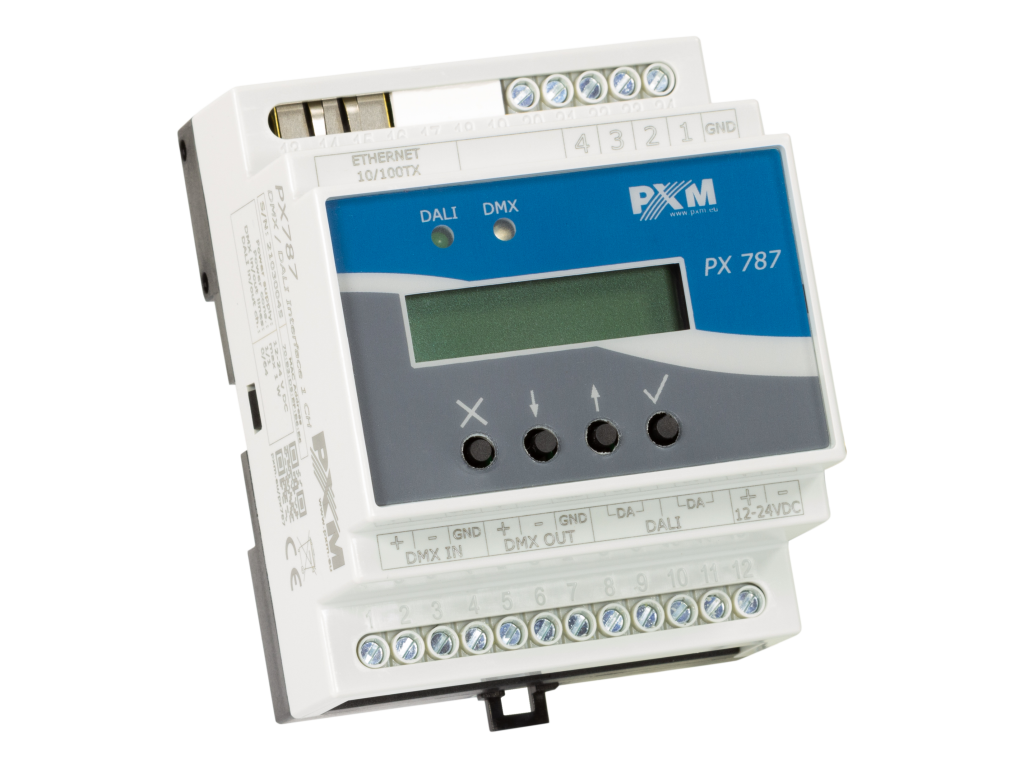

PX787 is a DMX512 control signal converter for DALI protocol and the DALI line programmer. DMX / DALI 1x is an advanced converter that allows to combine lighting installations based on the DALI protocol with DMX512 control system. Using the PX787, you can connect devices working in the DALI protocol to the controller sending the DMX512 signal. The device is equipped with two DMX (in / out) ports and one DALI port which allows to connect up to 64 devices – in accordance with the DALI standard. The converter also supports four digital inputs, from which you can set such actions as: turn on / off, set the scene or set the brightness.
Moreover, the RDM protocol was implemented in the PX787. DMX / DALI 1x has been placed in a housing adapted for mounting on a 35mm DIN rail and is supplied with 12 – 24V DC safe voltage.
