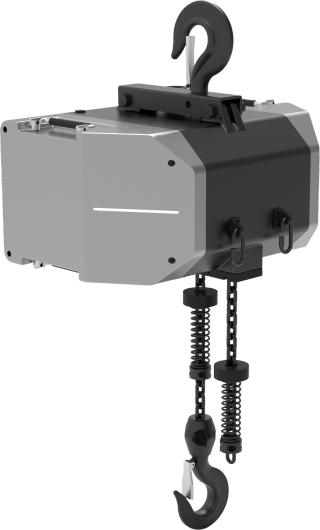

BW-01A-0.5T -- Servo Intelligent Hoist
BW-01A-0.5T is 500kg variable speed servo hoist designed to meet the latest international safety standards, including BGV C1 and the European standard EN 17206. The hoist is powered by INOVANCE absolute servo motor and can be operated by BW-console or Pando 3D software of YZ DITEC. The servo hoist has an integrated load cell, dual quiet brakes with brake monitoring.
● Black-warrior System — Precision, stability, and reliability in execution units.
● Ensures smooth operation of complex movements while maintaining the highest safety standards.

√ Has been certified by the German entertainment industry safety standard BGV-C1.
√ Complies with the European entertainment industry standard EN 17206.
√ Uses absolute value servo motors, ensuring precision, stability, and reliability even after extended operation.
√ The overall safety factor is greater than 8.
√ At a 500kg load, the speed is 25m/min; at a 300kg load, the speed is 42m/min.
√ Protection rating: IP65.

Specification
1. Safety standards: DGUV 17 (BGV C1) and the European standard EN 17206
2. Load capacity: 500kg
3. Speed: 0.45m/s，max 0.5m/s
4. Integrated load cell
5. 4-point limit switch
6. Electrical overload protection
7. Absolute value servo motor
8. Dual quiet brakes with brake monitoring
9. Configure normal or reverse hanging
10. Weight:69kg
11. Noise: 68dB
12. IP class: IP65
13. Size: 510 * 370 * 240mm
14. ISO: M5
15. Completely matches Tortoise control system
16. G80 level chain, 8 times safety factor, comply with EN818-7
17. Power: 2.9kw 8A; Voltage: 380-400v
