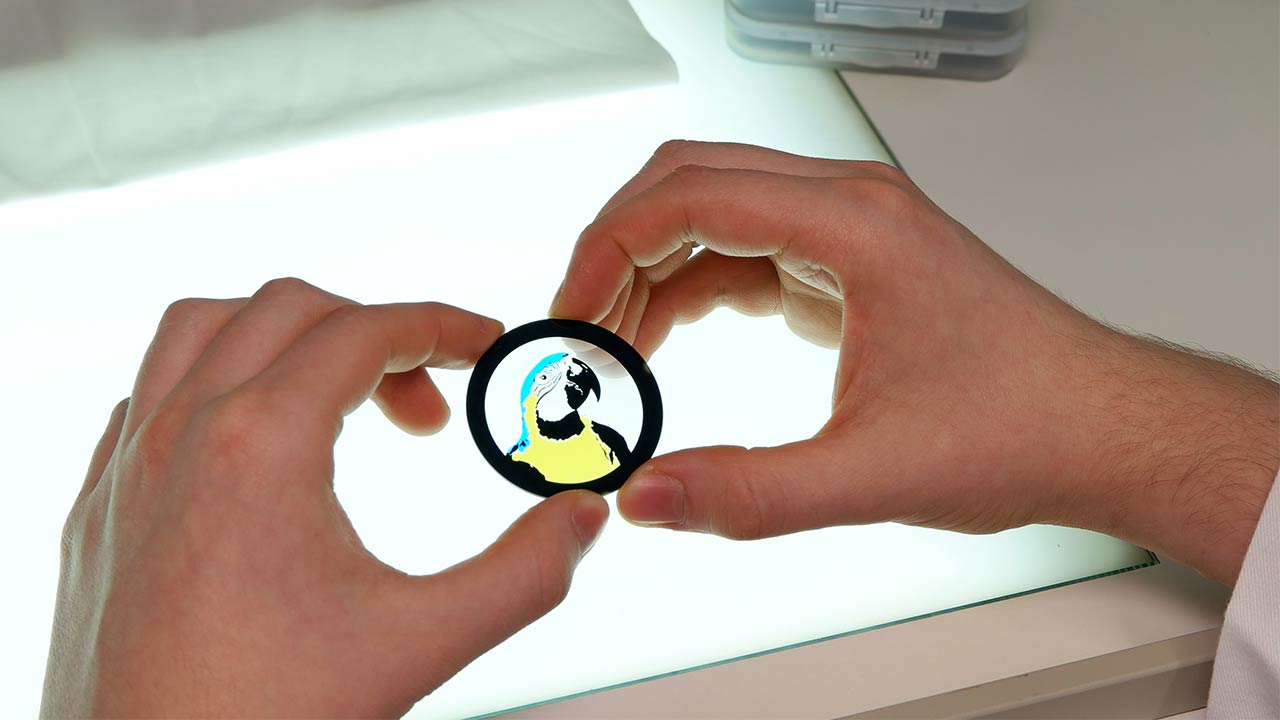

PHOS 85 downlight compact is a particularly small projector that can be installed almost invisibly in a false ceiling with a built-in diameter of only 130 mm. Setting up and focusing the projection is particularly quick thanks to the new magnetic mount and the rotating focus. PHOS 85 downlight compact is equipped with the latest LED technology and is cooled with a fan. The LED driver is supplied with the projector and is placed in the false ceiling. The projection motif (gobo) can be changed without tools.

LED Projectors for Ceiling Installation

Based on the PHOS LED projectors with its award-winning design, Derksen lighting technology has developed a stylish downlight for installation in false ceilings. The most powerful version is equipped with an 80 watts high power LED and an noise-optimized fan for sufficient cooling. The unobtrusive integration and the impressive light output open new ways for the design of ambiences, for example in shops or public buildings. The included electronic ballast is placed in the false ceiling. The projection motif can be changed without tools. Due to Derksen‘s quick installation system, the projected image can be rotated and focused easily in a single operation. Several projection lenses with different focal lengths are available.

PHOS 85 downlight

• output power: 80 W | 5,750 lumens
• recommended range: 5 – 15 m | 16 – 50 ft
• lifetime of the LED (L70): 35,000 hours
• cooling: active cooling, fan – 20 dBA
• weight: 3.9 kg | 8.6 lbs
• dimensions (w x h x d): 243 x 236 x 243 mm | 8.07 x 10.32 x 8.07 inches

Compact Projector for Lighting Tracks

PHOS 15 LT is equipped with an adapter for 3-phase standard lighting tracks. By the way, the “LT” in the product name is an acronym for “Lighting Track”. Performance and specifications correspond to the standard version PHOS 15.

PHOS 15 LT is the smallest LED projector in our product range. Its performance will astonish you with its recommended range of up to 4 meters (13 ft.) in normal room lighting. Possible locations include bars, lounges, shop windows or salesrooms. The projection motif can be changed without tools. Due to Derksen‘s quick installation system, the projected image can be rotated and focused easily in a single operation.

PHOS 15 LT

output power: 15 W | 1,200 lumens
recommended range: 2 – 4 m | 6.6 – 13 ft
projection lens: 85 mm standard, non-interchangeable
LED lifetime (L70): 35,000 hours
cooling: passive – 0 dBA
weight: 1.9 kg | 4.2 lbs
dimensions (w x h x d): 212 x 252 x 156 mm
8.35 x 9.92 x 6.14 inches


Specialist for Outdoor Use

This dust and weatherproof versions of PHOS LED projectors can be operated outdoors and in damp interiors. The lens is equipped with a special gasket, which prevents the penetration of moisture. All encapsulated electronic components are waterproof. The on / off switch was omitted. The projector is connected via a watertight connection tube. Performance and specifications correspond to the standard version of PHOS 25 – 85.

With PHOS 85 outdoor a projection distance of more than 20 m (65 ft) is achievable at night. Possible applications include outdoor projections on facades or portals, advertisements on pavements or surfaces in pedestrian zones. The projection motif (gobo) can be changed without tools. Due to Derksen‘s quick installation system, the projected image can be rotated and focused easily in a single operation. Several projection lenses with different focal lengths are available.

PHOS 85 outdoor

• output power: 80 W | 5,750 lumens
• recommended range: 5 – 15 m | 16 – 50 ft
• LED lifetime (L70): 35,000 hours
• cooling: active cooling, fan – 25 dBA
• weight: 3.9 kg | 8.6 lbs
• dimensions (w x h x d): 283 x 266 x 193 mm | 11.14 x 10.47 x 7.60 inches

Rotating Images Attract More Attention

PHOS 25 – 85 rotator rotates the projection motif permanently around its own axis. Rotational speed and direction are adjustable. A moving image attracts more attention than a static projection.

The projector offers an uncompromising brightness with its air-cooled 80 watts high-performance LED, which guarantees brilliant and high-contrast projections. Maximum projection distance is 8 meters (26 feet) for room lighting and 20 meters (65 feet) for twilight or at night. The motif (gobo) can be changed without tools. Several projection lenses with various focal lengths are available.

PHOS 85 rotator

• output power: 80 W | 5,750 lumens
• recommended range: 5 – 15 m | 16 – 50 ft
• lifetime of the LED (L70): 35,000 hours
• cooling: active cooling, fan – 28 dBA
• weight: 7.4 kg | 16.3 lbs
• dimensions (w x h x d): 293 x 331 x 278 mm | 11.54 x 13.03 x 10.94 inches
