Compulite Systems (2000) Ltd

Networking

Networking

Compulite Systems (2000) Ltd
Supplier profileAll products
Contact supplier

Description

The company that laid the foundation stones of Ethernet networking system accessories in the entertainment lighting industry, serving as a platform for other manufactures. The Compulite Ethernet consists of Virtual Connectors (VC’s), which are DMX-512 universes uploaded to Ethernet-network with a unique name. The integration of Ethernet-network in the lighting consoles, Dimmers, Wi-Fi Remotes, Workstations etc. launched the fast data highway crossing on all levels.

In the networking products you will find:

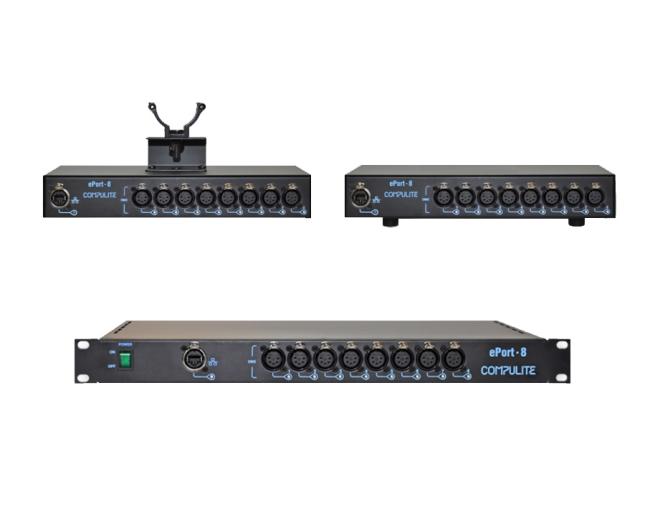

  • ePort-8, ePort- 41 and ePort-2 - converts Ethernet-to-DMX-512 and vice versa. It expands DMX-512 universes on clighting consoles and other products that transmit / receive standard protocols supported in the industry. They all support VC's, Artnet and sACN protocols. Optional POE.
  • eSync - converts SMPTE and Midi signals to Ethernet. eSync in its Desktop configuration, expands the input/output triggering for clighting consoles.

In addition, there is a remote PC software for monitoring, managing and controlling the network products called "C-Net Manager".

To learn more about the Networking solutions follow the link:
https://www.Compulite.com/products/ethernet

More from us

Our product

More products by Compulite Systems (2000) Ltd

Vibe LX

The Vibe family is an advanced line of intuitive and flexible lighting control consoles.
These consoles utilize multi-touch screen technology and provide lighting operators with a virtually unlimited number of touch controller buttons and faders.
Using a keypad and motorized faders for fast fixture selection and control, they enable quick access and are very powerful.
Designed using the latest technologies available, the Vibe family is optimized for graphical speed and network connectivity, providing lighting professionals all the tools needed to realize even the largest production.

Features:

  • 2 External DisplayPorts 1.4 (can split to 8 FHD Monitors)
  • Multi-color illuminated keypad
  • 8 RGB Backlit high-resolution wheels, 4 general purpose, 4 interactive. 1 vertical wheel for intensity control
  • A backlit XY trackball with 3 dedicate multi-use buttons
  • Dedicated A/B theatre style cross faders
  • Fully customizable and swipable drag and drop Workspace layouts
  • Virtually unlimited multi-touch controllers
  • Multi-angle control surface
  • Full tracking backup
  • 2D topo and graphical on screen editing
  • Up to 32-bit parameters and virtual parameters
  • RDM support
  • Comprehensive effects engine accessed via graphical editor with multiple primitives, patterns and parameters (*)
  • Up to 256 DMX universes directly from console via network ports (64 as a standard)
  • PC and Smartphone software
  • Multi language support
  • More than 40,000 Fixtures provided by AtlaBase Ltd
  • 131,072 Parameters (256 universes)
  • Over 9,000 Playbacks: 30 pages of 100 Slider controllers, 30 pages of 100 Q-Key controllers and 30 pages of 100 Auxiliary Key controllers
  • Unlimited # of Cues / Functions / Curves: Q-Lists, Scenes, Sub-masters, Sets, Groups, Presets, Macros, Matrix, Snaps and Timelines
  • 8 parameters wheel encoders with toggle
  • Integrated 21.5” LCD Multi-touch screen.
  • Integrated 11.6” LCD Multi-touch screen
  • 3 additional external video outputs
  • Audio port

Connectivity:

  • 8 x DMX 512 Inputs / outputs, XLR5
  • 2 x External DisplayPort 1.4
  • 4 x Gigabit Ethernet ports RJ45
  • 4 x USB 3.0, 2 x USB 2.0 ports
  • SMPTE, Combo XLR
  • MIDI in/thru, 5-pin DIN
  • 2 x dimmable RGB LED desk light, XLR3
  • AC input, powerCON
  • Power switch

Hardware:

  • 4th Generation intel Quad Core i7
  • Windows 10 Operat ing System
  • SSD for OS
  • SSD for data storage
  • 32GB RAM
  • Dedicated Graphics NVidia Processor Unit (GPU) card
  • Show backup to internal SSD, USB
  • Compulite VCs, sACN, Art-Net & RDM protocols
  • 8 physical DMX ports expandable to 256 universes via DMX over Ethernet gateways

To learn more about the Vibe Family follow the link:
https://compulite.com/products/consoles/vibe-family/vibe

Vibe M

The Vibe family is an advanced line of intuitive and flexible lighting control consoles.
These consoles utilize multi-touch screen technology and provide lighting operators with a virtually unlimited number of touch controller buttons and faders.
Using a keypad and motorized faders for fast fixture selection and control, they enable quick access and are very powerful.
Designed using the latest technologies available, the Vibe family is optimized for graphical speed and network connectivity, providing lighting professionals all the tools needed to realize even the largest production.

Features:

  • 2 External DisplayPorts 1.4 (can split to 8 FHD Monitors)
  • Multi-color illuminated keypad
  • 8 RGB Backlit high-resolution wheels, 4 general purpose, 4 interactive. 1 vertical wheel for intensity control
  • A backlit XY trackball with 3 dedicate multi-use buttons
  • Dedicated A/B theatre style cross faders
  • Fully customizable and swipable drag and drop Workspace layouts
  • Virtually unlimited multi-touch controllers
  • Multi-angle control surface
  • Full tracking backup
  • 2D topo and graphical on screen editing
  • Up to 32-bit parameters and virtual parameters
  • RDM support
  • Comprehensive effects engine accessed via graphical editor with multiple primitives, patterns and parameters (*)
  • Up to 256 DMX universes directly from console via network ports (64 as a standard)
  • PC and Smartphone software
  • Multi language support
  • More than 40,000 Fixtures provided by AtlaBase Ltd
  • 131,072 Parameters (256 universes)
  • Over 9,000 Playbacks: 30 pages of 100 Slider controllers, 30 pages of 100 Q-Key controllers and 30 pages of 100 Auxiliary Key controllers
  • Unlimited # of Cues / Functions / Curves: Q-Lists, Scenes, Sub-masters, Sets, Groups, Presets, Macros, Matrix, Snaps and Timelines
  • 8 parameters wheel encoders with toggle
  • Integrated 15.6” LCD Multi-touch screen.
  • Integrated 11.6” LCD Multi-touch screen
  • 3 additional external video outputs
  • Audio port

Connectivity:

  • 8 x DMX 512 Inputs / outputs, XLR5
  • 2 x External DisplayPort 1.4
  • 4 x Gigabit Ethernet ports RJ45
  • 4 x USB 3.0, 2 x USB 2.0 ports
  • SMPTE, Combo XLR
  • MIDI in/thru, 5-pin DIN
  • 2 x dimmable RGB LED desk light, XLR3
  • AC input, powerCON
  • Power switch

Hardware:

  • 4th Generation intel Quad Core i7
  • Windows 10 Operat ing System
  • SSD for OS
  • SSD for data storage
  • 32GB RAM
  • Dedicated Graphics NVidia Processor Unit (GPU) card
  • Show backup to internal SSD, USB
  • Compulite VCs, sACN, Art-Net & RDM protocols
  • 8 physical DMX ports expandable to 256 universes via DMX over Ethernet gateways

To learn more about the Vibe Family follow the link:
https://compulite.com/products/consoles/vibe-family/vibe-m

Vector

The Vector family is a line of lighting control consoles, based on the most advanced computer networking, software & hardware technologies.
Vector delivers unmatched performances, high level functionality, reliability and sophistication.
Vector consoles are designed for use in Theaters, Opera Houses, Ballet, TV Studios, Production Touring, Theme Parks, Clubs and more.

Features:

  • Embedded high speed hardware technology
  • Latest Windows 10
  • Rich GUI capabilities of Windows
  • Multitude screen & touch capabilities
  • Real-time performances with high stability
  • Seamless media files integration
  • Three independent backbone Networks
  • Expandability for additional panels via Ethernet
  • Expandability for additional DMX universes via Ethernet
  • Operation uniformity of all models
  • Show files compatibility between all models
  • Simplicity of synchronization between the models
  • Master / Slave and Multi-user capabilities
  • Media Server connectivity via Ethernet
  • Up to 32 DMX-Universes

Connectivity:

  • 8 x DMX 512 Inputs / outputs, XLR5 (depends on the model)
  • 3 x Gigabit Ethernet ports RJ45
  • 2 x USB 3.1, 2 x USB 3.0, 7 x USB 2.0 ports
  • SMPTE, Combo XLR
  • MIDI in/thru, 5-pin DIN
  • 2 x dimmable RGB LED desk light, XLR3
  • AC input
  • Power switch

To learn more about the Vector Family follow the link:
https://www.compulite.com/products/consoles/vector-family
