DOMINO LT
Beschreibung

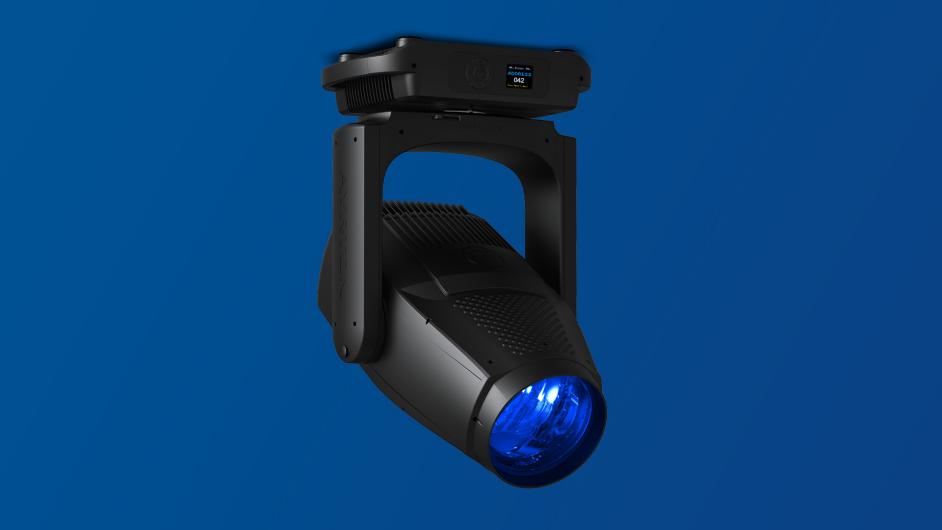

DOMINO-LT is the first all-terrain LED luminaire in the "LT" (Long Throw) range designed for intensive outdoor use in long-distance applications requiring high precision. To create this extreme luminaire unrivalled on the market, AYRTON has used “XXL” 225 mm-diameter frontal optics weighing 7 kg that can obtain an ultra-intensive beam. The proprietary optical system has 13 lenses, delivering a 15:1 zoom ratio and a zoom range of 3.5° to 53°. DOMINO-LT was developed to cope with the most extreme conditions, able to acclimate to all types of environments and endure rapid climate change. For this purpose, DOMINO-LT has borrowed from the style and minimalist design of DOMINO PROFILE, incorporating full weather-proofing features while ensuring total accessibility to the luminaire's internal functions. With its new die-cast aluminium frame, the luminaire uses the same base, reducing its visual footprint to a minimum. For greater efficiency, DOMINO-LT has a highly effective next-generation, oversized cooling system fitted with six submersible fans outside its weatherproof enclosure.
Equipped with an all-new high-efficiency 1,000-watt LED module, DOMINO-LT delivers a record luminous flux of 51,000 lumens at a colour temperature of 6700 K. DOMINO-LT adopts the complex colour mixing system of HURACÁN PROFILE, offering a double level of CMY saturation that can obtain 281 trillion colours (patent pending) and a triple corrector for variable colour temperature that allows subtle adjustment from 2700 K to 15000 K and significant CRI improvement. Fitted with multiple optical tools for shaping light, DOMINO-LT is factory-equipped with a linear progressive frost system, a lightweight frost filter, and two image-multiplying rotating prisms: one is linear with four facets and the other is circular with five facets. The framing section enables precise positioning of each shutter blade on a 100% surface area. The effects section includes two superimposed rotating gobo wheels each with seven gobos, a 15-blade iris diaphragm, a monochromatic multi-position effects wheel, and an RGB and CMY effects wheel for unique multicolour effects. DOMINO-LT is a unique luminaire designed to face the most extreme conditions... It is the ultimate tool for stadiums and large arenas.
