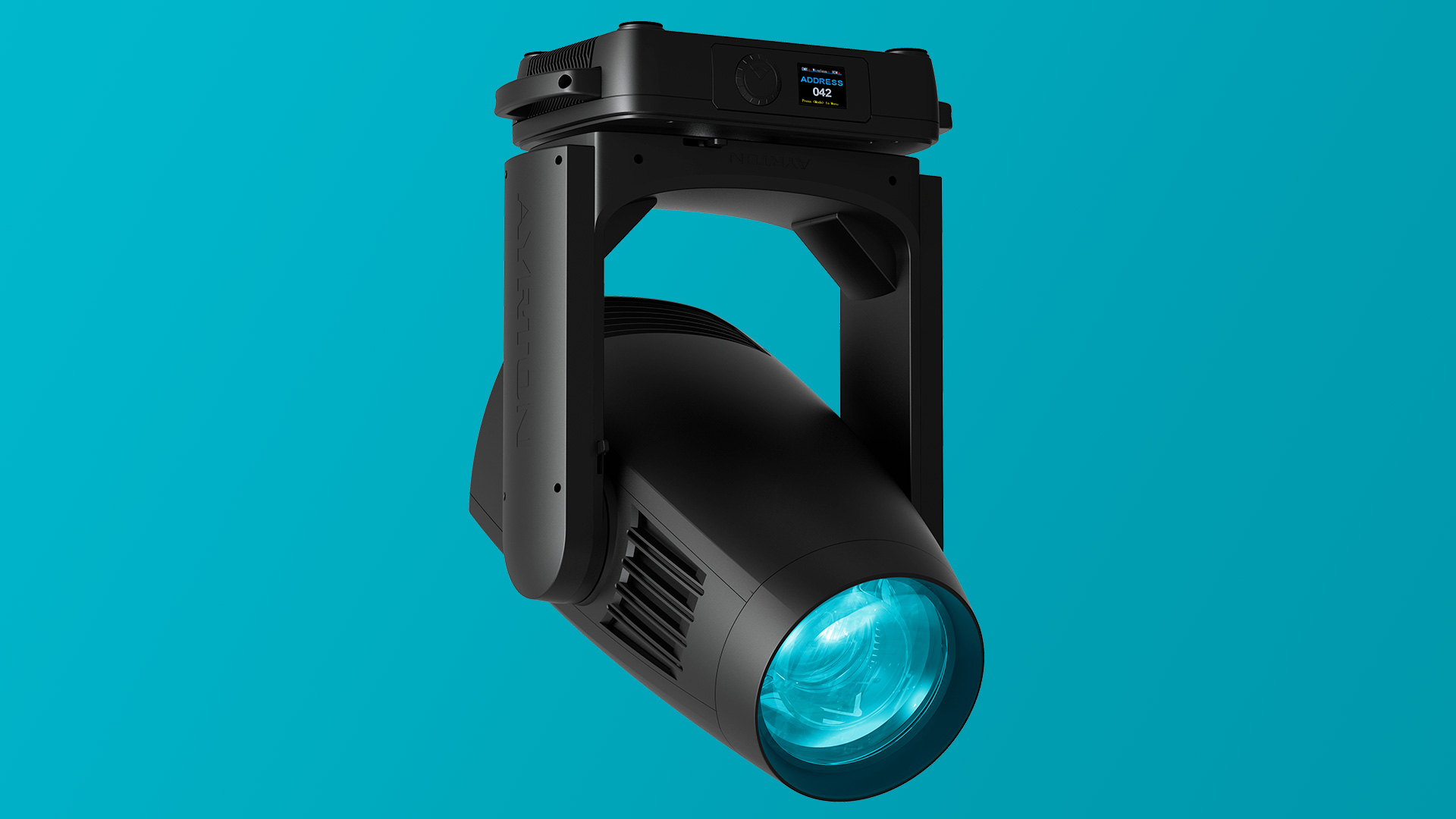

HURACÁN LT is the first LED luminaire in the brand new line of “LT” (Long Throw) products dedicated to long-range applications.To achieve an ultra-intense beam from a LED source, AYRTON has added 225 mm-diameter, extra-large frontal optics weighing 7 kg. The proprietary optical system has 13 lenses, delivering a 15:1 zoom ratio and a zoom range of 3.5° to 53°. Fitted with a next-generation, oversized liquid phase-change cooling system and a new high-efficiency 1000 W LED module, HURACÁN LT delivers record light output of 51,000 lumens at a colour temperature of 6700 Kelvin when operating at a steady state. Provided with multiple optical tools designed for shaping light, HURACÁN LT is factory-equipped with a removable high-transmission diffusion filter to erase the edge of the beam without changing its angle; a progressive linear frost system for precision adjustment of the desired diffusion level for creating artificial wash effects; and two combinable image-multiplying rotating prisms – one linear with four facets, and the other circular with five facets.

HURACÁN LT has adopted the same revolutionary complex colour mixing system as HURACÁN PROFILEoffering a double saturation level that can obtain over a billion colours (patent pending) and a triple variable colour temperature corrector that allows subtle adjustment from 2700 K to 15000 K and offers noticable CRI improvement. HURACÁN LT features an advanced framing section, which enables accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. The effects section includes two superimposed rotating gobo wheels each with seven HD glass gobos; a 15-blade iris diaphragm; a monochromatic multi-position effects wheel for horizontal, vertical or axial scrolling for creating flame, water or radiant effects (patent pending) and a CMY and RGB effects wheel for unique multicolour effects. HURACÁN LT, which combines exceptional light power and an ultra-intense beam with standard equipment in a class by itself, is a formidable tool for large venues, such as arenas and stadiums dedicated to major events.

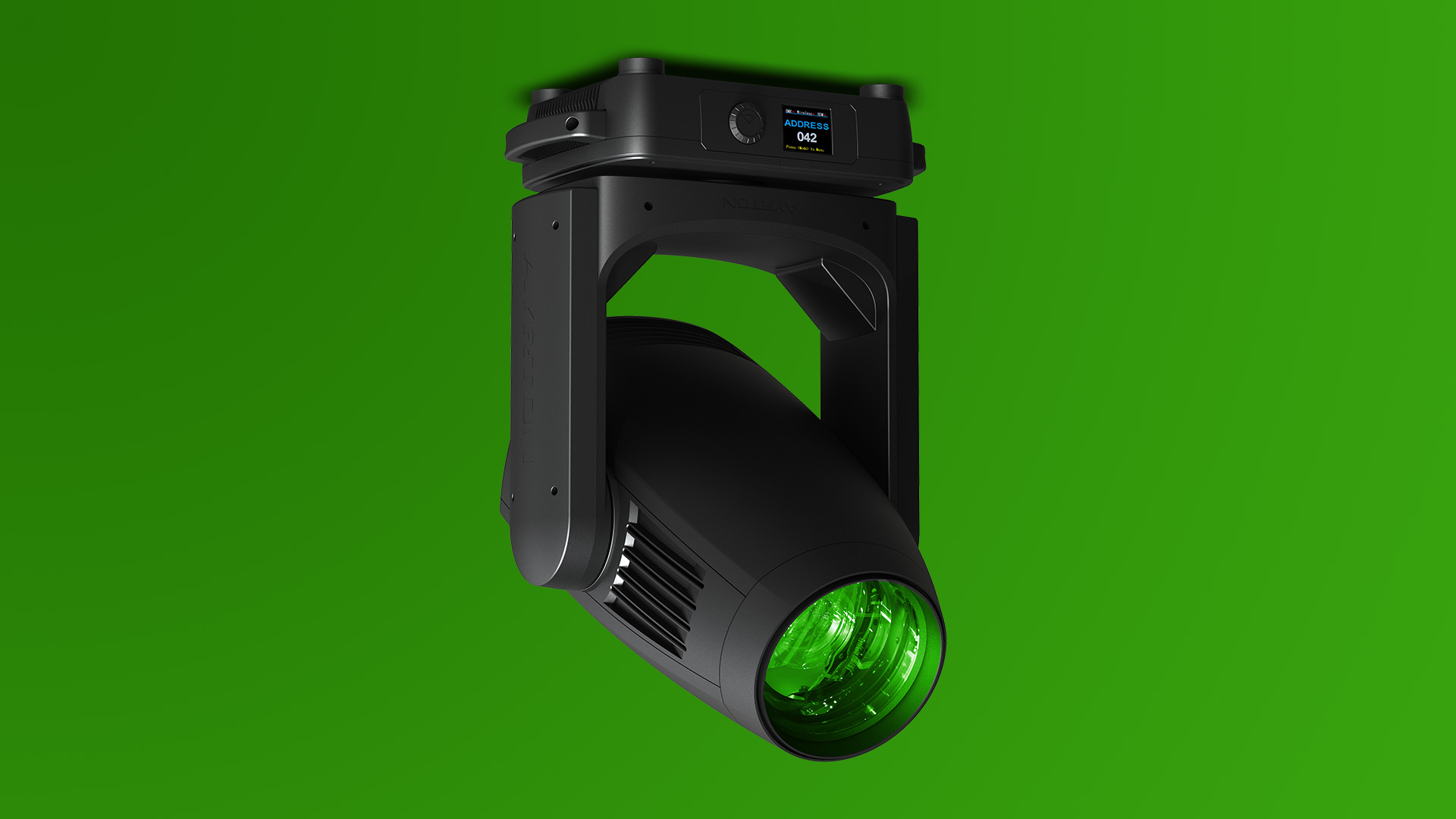

A new addition to the 5 Series, EURUS is the first multi-function profile luminaire launched under the new SLIM-21 programme for miniaturising fixtures and reducing their weight.AYRTON has developed a new high-efficiency power supply in an entirely new die-cast aluminium base that takes up 33% less volume than in other luminaires of the same category. A lighter internal structure and all-new miniaturised stepper motors add to the final result. This new luminaire boasts optics specifically developed for applications requiring perfect image reproduction and significantly reduced distortion caused by the shutter blades in wide zoom. Fitted with a 170 mm frontal lens, the proprietary optical system uses 13 lenses, producing an 11:1 zoom ratio and a zoom range of 4.5° to 50°. EURUS is available in two versions: S and TC. EURUS-S, specially designed for stage applications, is equipped with a new 650 W ultra-compact monochromatic LED emitter calibrated at 8000 K, it can deliver metallic white light with an output of 32,000 lumens at a colour temperature of 6700 K. EURUS-TC is geared for applications that require perfect colour rendition, using a monochromatic light source with a native colour rendering index greater than 90, at a colour temperature of 6000 K.

Feature-packed from the factory, EURUS includes a subtractive CMY colour mixing system combined with a variable CTO and a seven-position complementary colour wheel for displaying an infinite palette of vivid pastels and saturated colours.In addition, the colour section contains two additional filters for optimising the colour rendering index and TM30 readings. The framing section allows accurate positioning of each shutter blade on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. The image section includes 18 interchangeable HD glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eleven positions. The effects section includes one continuous dynamic effect-wheel, 15-blade iris diaphragm, two frost filters (one for light and one for heavy diffusion), two combinable rotating prisms (one circular with 5 facets and one linear with 4 facets). EURUS has a highly efficient phase-change liquid cooling system using a heat pipe that includes a particularly effective ultra-silent ventilation mode, designed for stage and studio applications.

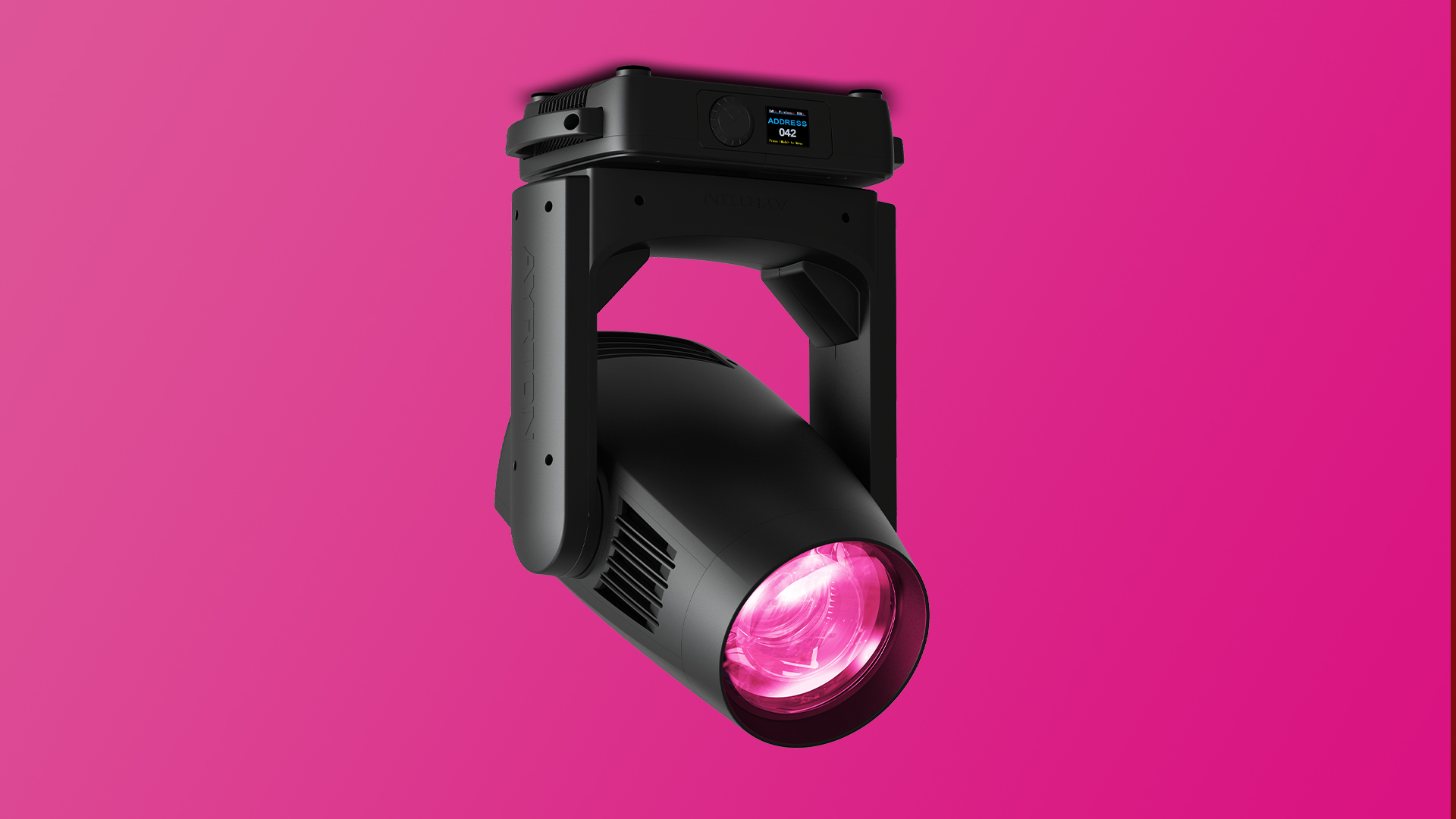

KARIF is a versatile new fixture in the «LT» (Long Throw) series, adding to the AYRTON product offering for long-distance applications.This is a machine with phenomenal powers capable of delivering stunning visual effects. An ultra-compact 300 W beam-spot luminaire equipped with a 168 mm frontal lens, KARIF offers an astronomical zoom ratio of 17:1 and a zoom range of 2.8° to 47°. To achieve an ultra-intense beam with an LED source, AYRTON uses an entirely new miniaturised high-efficiency low-etendue compact LED module. Calibrated at 8000 K, it can generate powerful metallic white light and deep, vivid colours suitable for this type of application. KARIF provides overall output of 14,000 lumens at a colour temperature of 6500 K. In this first hybrid LED luminaire, AYRTON has added continuous rotation to its panoramic movement to expand the possibilities for creating complex special effects.

KARIF offers full-featured standard equipment including a CMY colour mixing system and a multi-position colour wheel with a variable CTO,four colour-temperature correction filters, and nine complementary colour filters on two concentric circles (patent pending). The effect section includes one wheel with nine interchangeable rotating HD glass gobos. For KARIF-LT to reproduce multiple images, AYRTON has developed a totally new wheel of fixed multi-position gobos with instant access to 19 HD glass gobos and 20 metal gobos on three concentric circles (patent pending). KARIF is also equipped with a bi-directional continuous dynamic effects wheel. The prism effect system comprising four individually combinable prisms, coupled with 48 fixed and rotating gobos and an ultra-intense beam, can create unusual and spectacular kaleidoscopic effects.

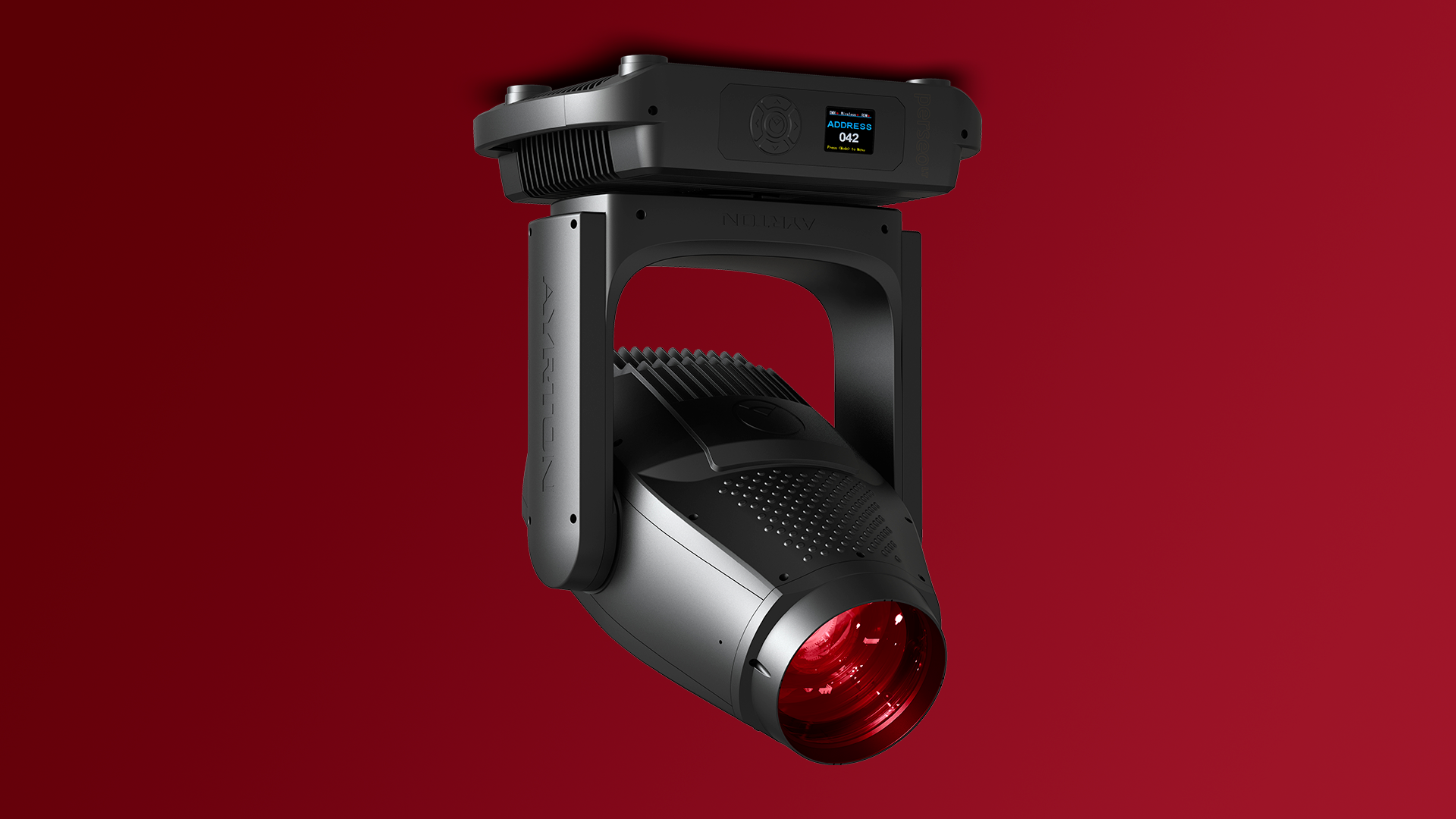

PERSEO BEAM is the first compact, waterproof multi-function beam effect LED luminaire.Well-suited for use indoors as well as outdoors, the fixture is equipped with an ultra-intensive 2° beam and 21x zoom ratio, making it an extraordinary tool that will help you achieve some incredibly exciting effects. PERSEO BEAM is endowed with unprecedented graphic capability, offering a wide choice of 48 fixed and rotating gobos distributed on two wheels, including 28 glass gobos for the projection of high-definition images and 20 metal gobos specifically created to sculpt light in “beam” mode. These gobos can be blended with four individually combinable rotating prisms that allow you to produce a multitude of volumetric lighting effects. An RGB/CMY multi-layer gobo lets you generate dynamic multicolour effects. An effect-wheel with continuous rotation in both directions and two frost filters complete the PERSEO BEAM tool palette. Continuous rotation of the pan movement multiplies the possibilities for creating complex effects.

PERSEO BEAM is equipped with a highly innovative colour section including a CMY colour mixing system, a progressive linear CTO,an instant-access multi-position colour wheel supplied with four colour-temperature correction filters, and 13 complementary-colour filters on two concentric circles (patent pending). Fitted with a 168 mm frontal lens, the proprietary optical system uses 13 lenses, producing a zoom range of 2° to 42°. A brand new ultra-compact 450 W monochromatic LED emitter specially developed for long-distance applications can obtain a luminous flux of 18,000 lumens at a colour temperature of 6800 K operating at a steady state. PERSEO BEAM borrows from the same minimalist design as PERSEO PROFILE, incorporating all the waterproof features while being easily accessible and lightweight. The luminaire was designed and developed to operate in the most extreme conditions and resist hot or cold temperatures, rain, sand, dust. This new creation by AYRTON allows you full expression without constraints or limits in a style that is your own.

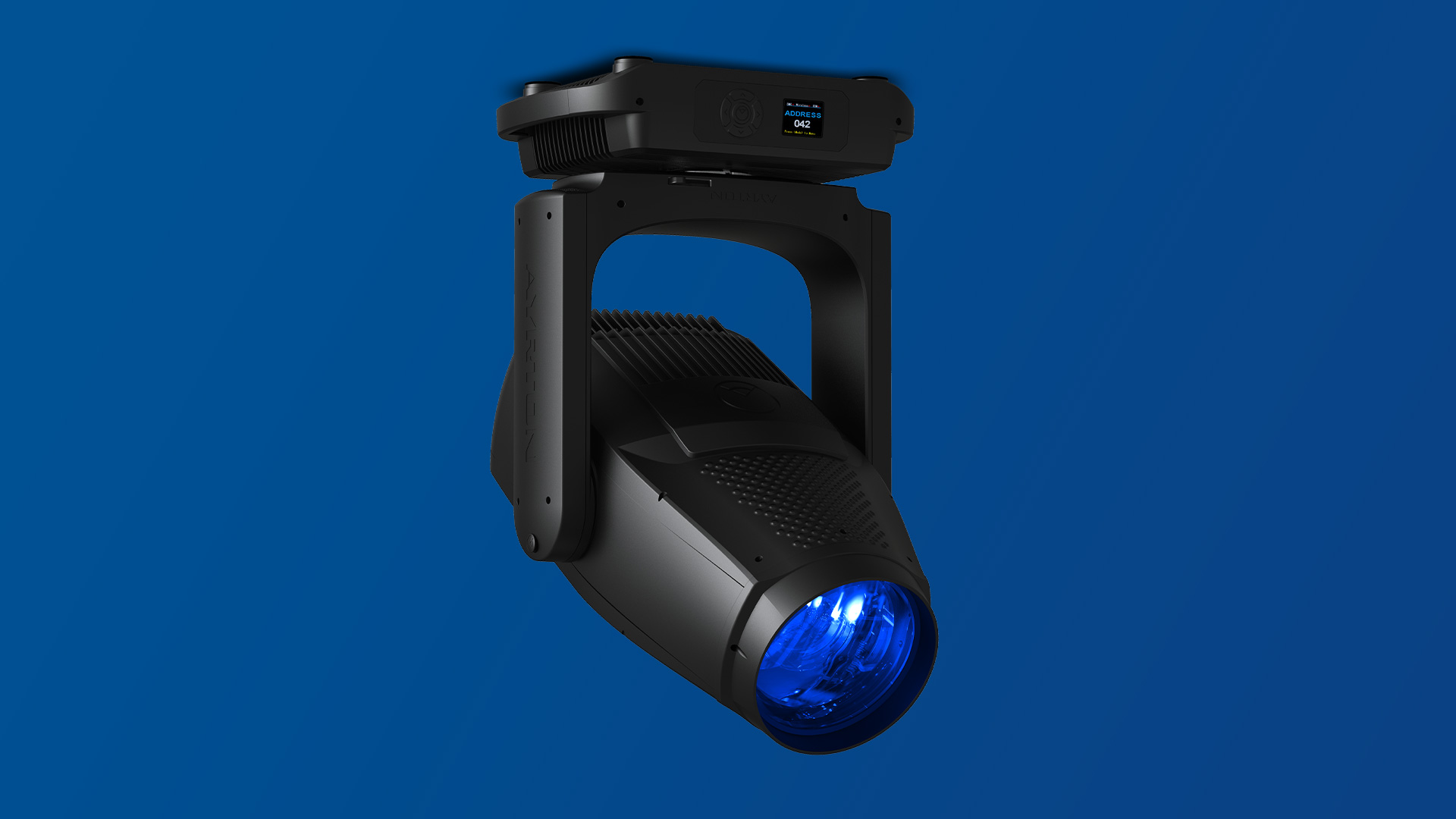

DOMINO-LT is the first all-terrain LED luminaire in the "LT" (Long Throw) range designed for intensive outdoor use in long-distance applications requiring high precision. To create this extreme luminaire unrivalled on the market, AYRTON has used “XXL” 225 mm-diameter frontal optics weighing 7 kg that can obtain an ultra-intensive beam. The proprietary optical system has 13 lenses, delivering a 15:1 zoom ratio and a zoom range of 3.5° to 53°. DOMINO-LT was developed to cope with the most extreme conditions, able to acclimate to all types of environments and endure rapid climate change. For this purpose, DOMINO-LT has borrowed from the style and minimalist design of DOMINO PROFILE, incorporating full weather-proofing features while ensuring total accessibility to the luminaire's internal functions. With its new die-cast aluminium frame, the luminaire uses the same base, reducing its visual footprint to a minimum. For greater efficiency, DOMINO-LT has a highly effective next-generation, oversized cooling system fitted with six submersible fans outside its weatherproof enclosure.

Equipped with an all-new high-efficiency 1,000-watt LED module, DOMINO-LT delivers a record luminous flux of 51,000 lumens at a colour temperature of 6700 K. DOMINO-LT adopts the complex colour mixing system of HURACÁN PROFILE, offering a double level of CMY saturation that can obtain 281 trillion colours (patent pending) and a triple corrector for variable colour temperature that allows subtle adjustment from 2700 K to 15000 K and significant CRI improvement. Fitted with multiple optical tools for shaping light, DOMINO-LT is factory-equipped with a linear progressive frost system, a lightweight frost filter, and two image-multiplying rotating prisms: one is linear with four facets and the other is circular with five facets. The framing section enables precise positioning of each shutter blade on a 100% surface area. The effects section includes two superimposed rotating gobo wheels each with seven gobos, a 15-blade iris diaphragm, a monochromatic multi-position effects wheel, and an RGB and CMY effects wheel for unique multicolour effects. DOMINO-LT is a unique luminaire designed to face the most extreme conditions... It is the ultimate tool for stadiums and large arenas.
