alfasystem S.r.l.

Understage machinery

Beschreibung

Understage machinery is the plus giving the possibility to a theatre not only to perform a scene change but sometimes also to really re-configure the stage.

We offer stage and orchestra lifts, revolving stages and turntables, trap elevators, engineering them to meet any performance required.


LINK: https://www.stagesystem.it/en/theatre-and-stage-machinery/




STAGE LIFTS

Stage lifts can find their use in the stage for many different purposes: as orchestra or stage lifts, as compensating platforms or trap lifts, etc…

Specification in terms of size, shape, load capacity, travel, guiding system, control, etc… can be very different, making stage lifts a complex piece of engineering.

Whatever the requirements, we are experienced with the many technologies needed to deliver almost any type of lifting platform: Spiralifts, LinkLifts, rack and pinions, winches, spindles, scissors, side guides, telescopic guides, etc…

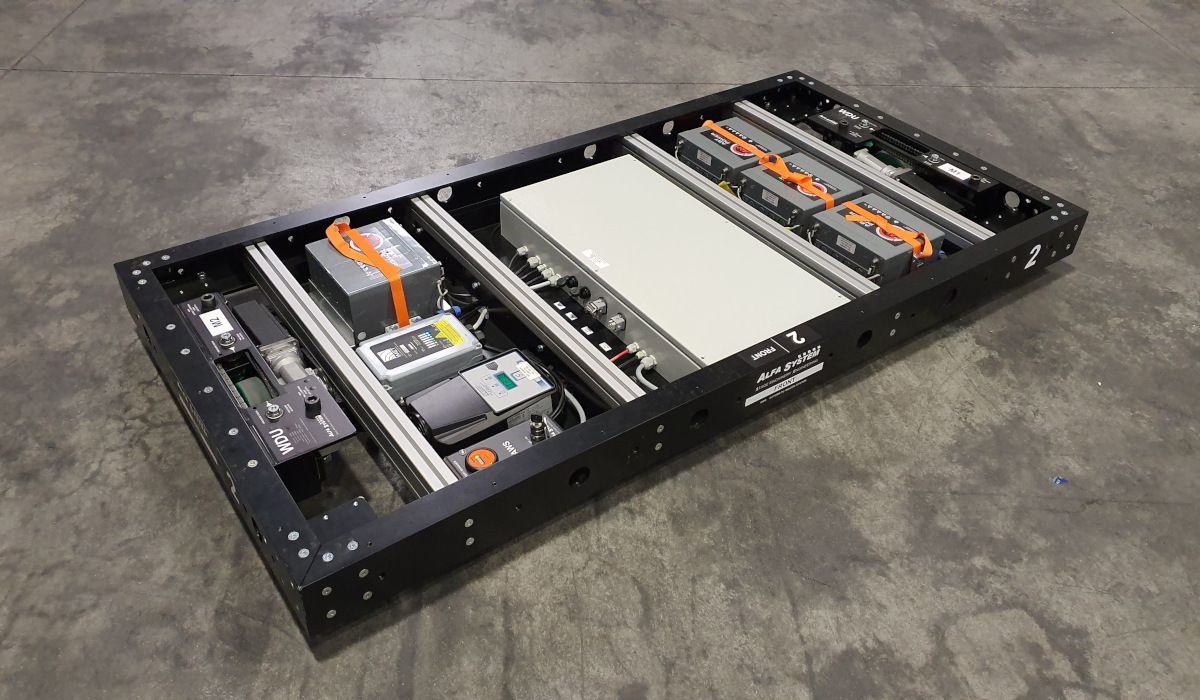

WAGONS

Getting a large scene change in a short time by simply sliding in front of the audience pieces of a scene built side or back stage is absolutely an amazing effect.

Our stage wagons can be developed implementing many technical solutions: they can run above a stage or along recessed areas; be pushed by external devices or incorporate drives delivering the movement; be battery operated and radiocontrolled; move freely, along straight tracks or follow curved paths.

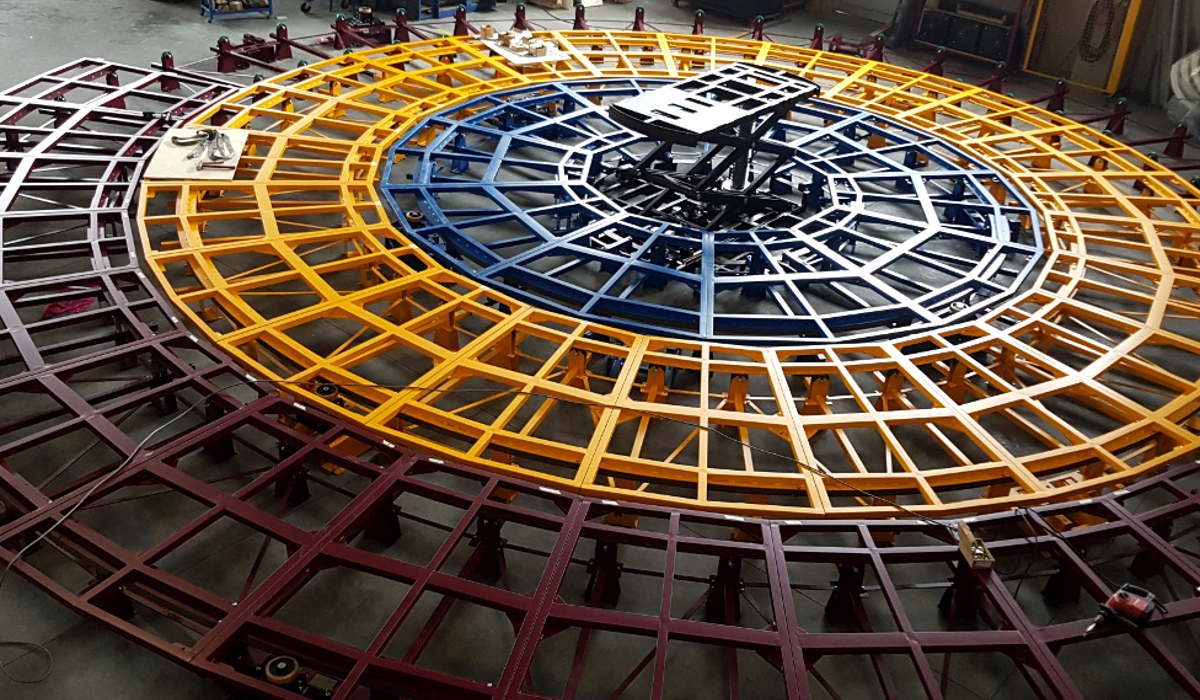

TURNTABLES

We can build them as stand-alone systems, to be assembled where needed or as permanent installations, integrated in stage wagons or integrating lifting platforms. We can build circles, rings and concentric independent rings.

Our preferred design is based on a well tried modular solution, using drive units pushing the turntable by friction, and allowing to work with small installation height.

Engineering allows us to customize any detail of our revolving stages: from diameter to load capacity, from speed to installation height, including power integration and precise positioning systems.




Adresse

alfasystem S.r.l.
Via Marco Bressan 14
35042 Este Padova
Italien

Telefon+39 0429 2820

Fax+39 0429 603386
