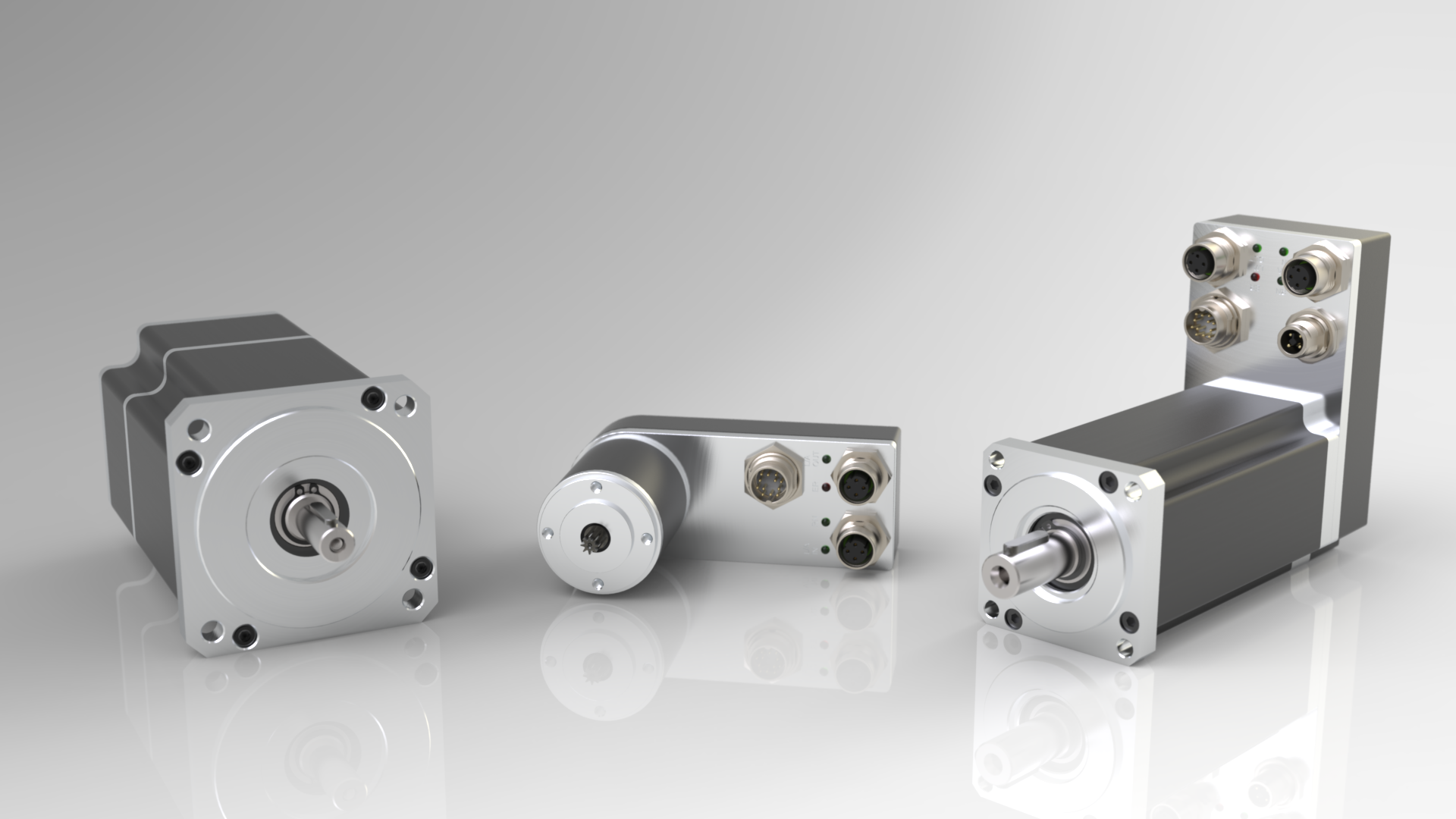

INTECs drive controllers of the PCS-series address the continuously increasing demands for miniaturisation and decentralised intelligence in automation and process control.

They are applied where high flexibility and integration level, effiectiveness and reliability are required.

Expensive cabling and control cabinets can be avoided in many applications by using INTEC drives. The consequent integration of drive controller, motor, gear reducer and fieldbus interface into a compact drive unit faciliates the implementation of an efficient, versatile drive solution.

Typical applications of INTEC drive controllers:

• Wood processing machines
• Printing machines
• Packaging machines
• Welding machines
• Soldering systems
• Folding and cutting machines
• Grinding and polishing machines
• Mobile satellilte communication
• Automatic handling machines
• Transport systems
• Pharmaceutical machines

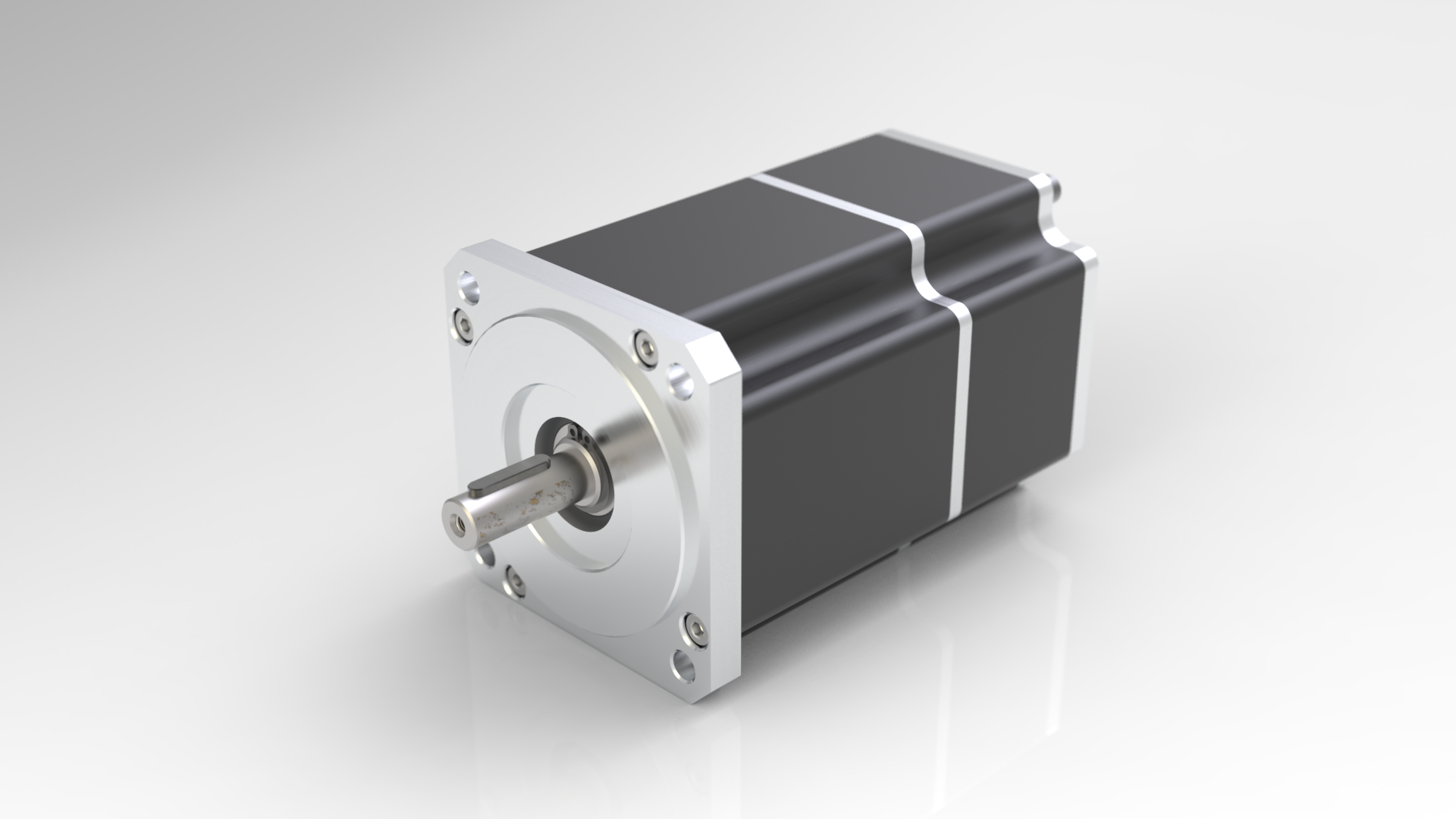

Using the latest innovative technology INTEC has been able to combine high performance with high dynamics in a small package. With continuous power up to 650 watts PCSi 600x ECAT drives are one of the smallest with integrated EtherCAT interface in its performance class. INTEC provides high quality drive solutions from a single source. Developed for demanding applications, such as for CNC woodworking centres, INTEC drives from the PCSi 600x ECAT series can be used in a wide variety of applications. The modular systems allows the usage of various gears and brakes. We actively support in design, planning and implementation to provide the optimal solution for our customers drive application.


Features include:

• High quality brushless servomotors
• Integrated single-turn absolute encoder
• Power range up to 650 W
• Sinusoidal commutation with Field-Oriented-Control (FOC)
• High accuracy of speed and position control loops (< 0,1°)
• Multi-turn absolute encoder as option
• Certified Safety Stop (STO, SBC)
• Separate power supplies for logic and power

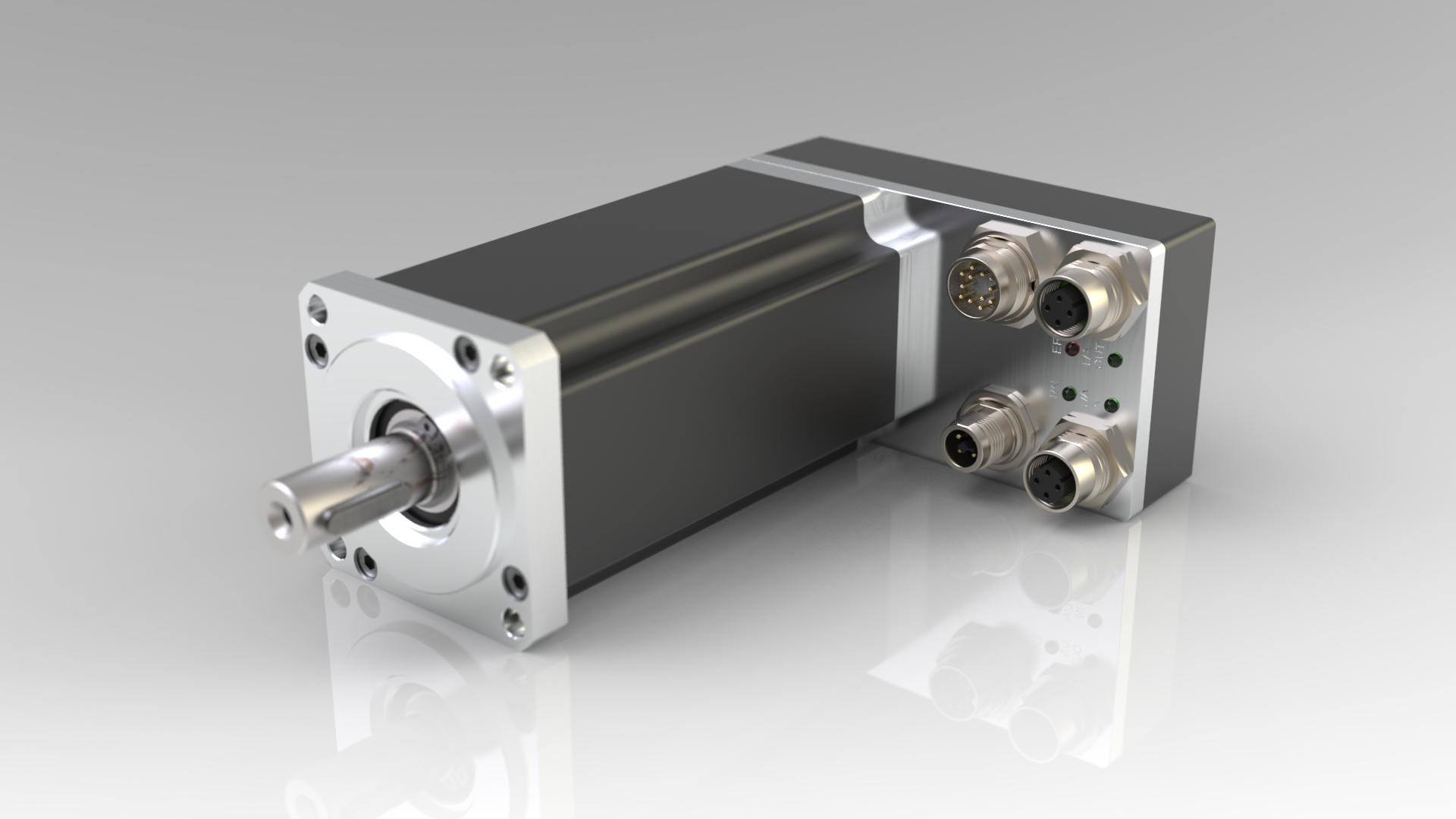

To close the gap in INTEC integrated EtherCAT drives series, INTEC has developed the PCSi 300 ECAT drives. It combines high performance with high dynamics in a small package. Developed for demanding applications, such as for CNC applications, INTEC drives from the PCSi 300 ECAT series can be used in a wide variety of applications. The modular systems allows the usage of various gears and brakes. We actively support in design, planning and implementation to provide the optimal solution for our customers drive application.

Features include:

• High quality brushless servomotors
• Integrated single-turn absolute encoder
• Power range up to 350 W
• Sinusoidal commutation with Field-Oriented-Control (FOC)
• High accuracy of speed and position control loops (< 0,1°)
• Multi-turn absolute encoder as option
• Certified Safety Stop (STO, SBC)
• Separate power supplies for logic and power

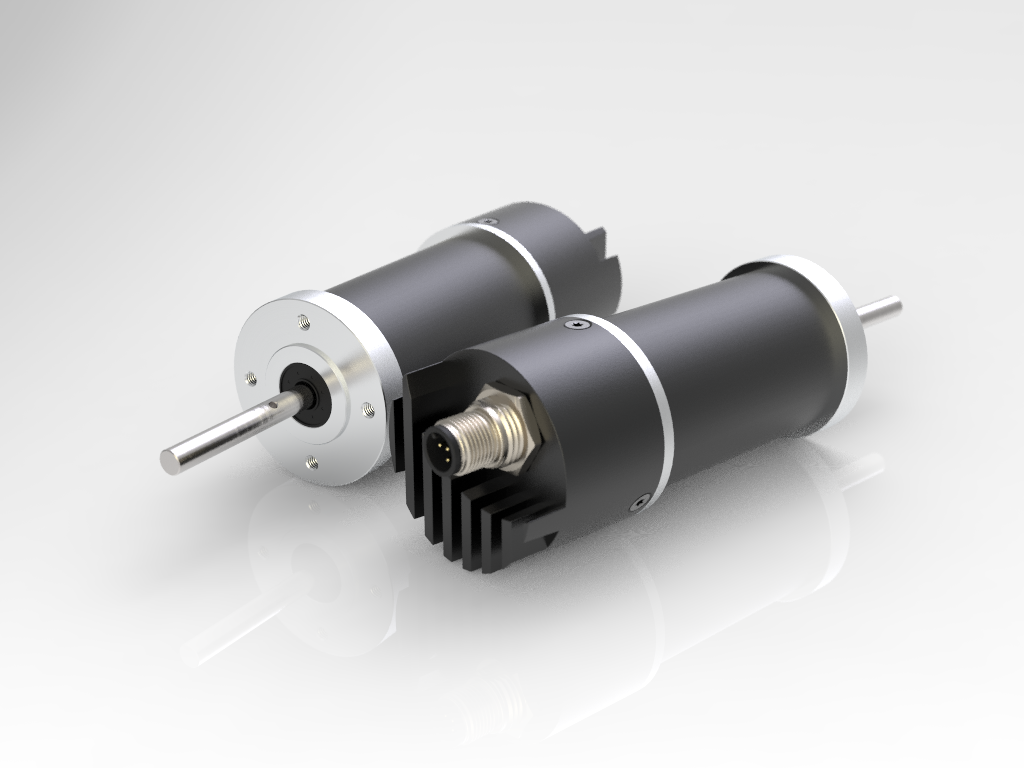

The BLDC drives of the PCSi 60 series have integrated speed control electronics for 4-quadrant operation. Control is via a 0-10V analog input. Direction of rotation, stop and a holding torque can be specified via digital inputs. Pulse and direction of rotation information can be output via digital outputs. The drive can be combined with a variety of different planetary and worm gear units.

The drive optionally has an integrated CANopen fieldbus as an interface.

• Rated power up to 70 W
• Rated torque up to 0.20 Nm
• Rated speed up to 4000 rpm
• Optional integrated CANopen interface

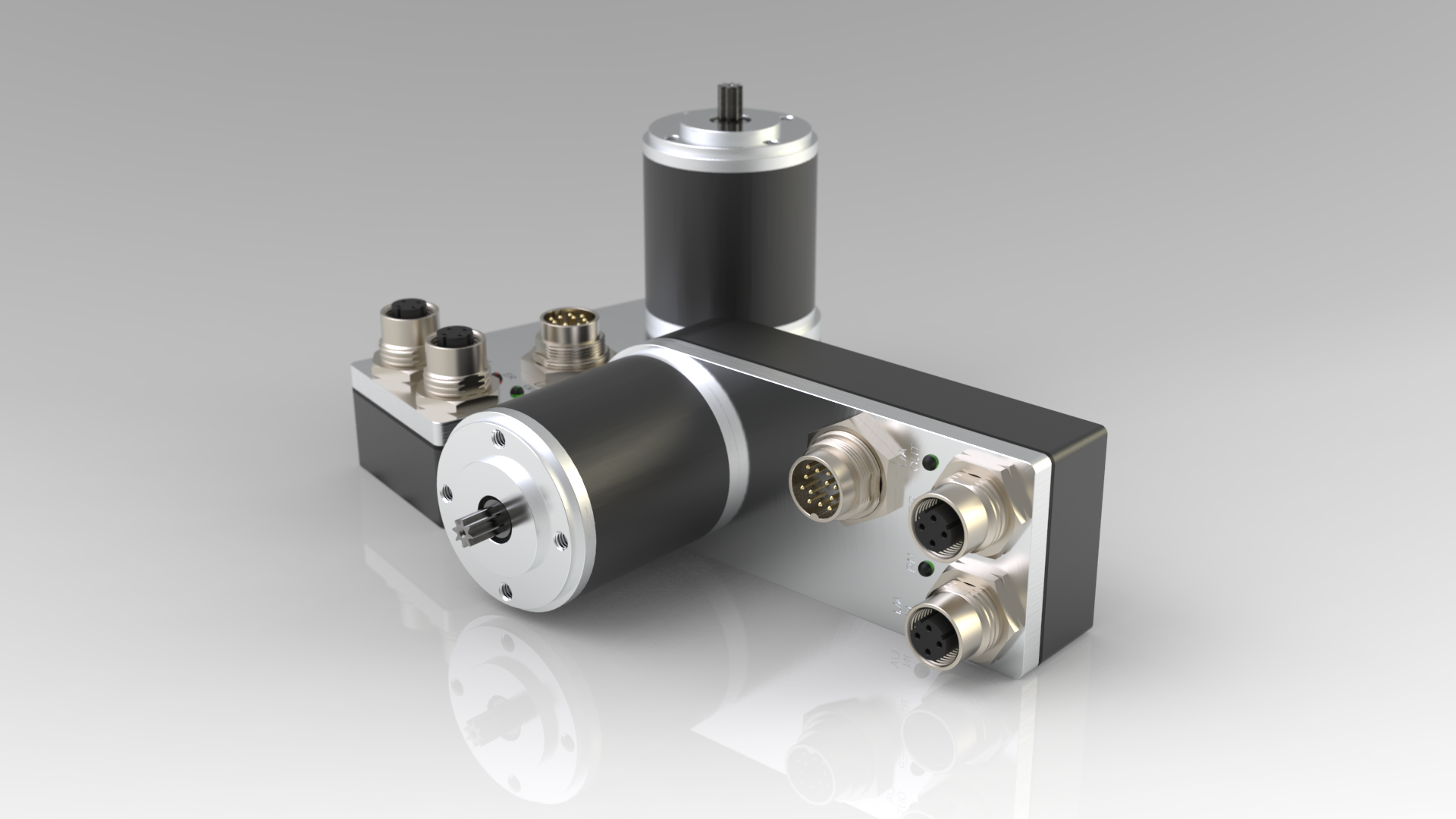

Using latest technology INTEC – Motion Systems has succeeded in realizing a compact drive with numerous features. With continuous power up to 150 W it is one of the smallest drives with an integrated EtherCAT interface in its performance class. INTEC delivers high-quality complete solutions from a single source. For the demanding use, such as in CNC woodworking centers, INTEC drives of the PCSi 150x ECAT series can be used in a versatile way due to modular components. Further information on this and other innovative drive solutions can be found on www.intec-motion.de or at the SPS in Hall 4 Stand 114.


Highlights are:

• EtherCAT interface
• Integrated single-turn absolute encoder with a resolution of 4096 increments/turn
• Integrated, certified Safety Stop module including STO, SS1 and SBC functionality
• Optional contactless multi-turn absolute encoder
