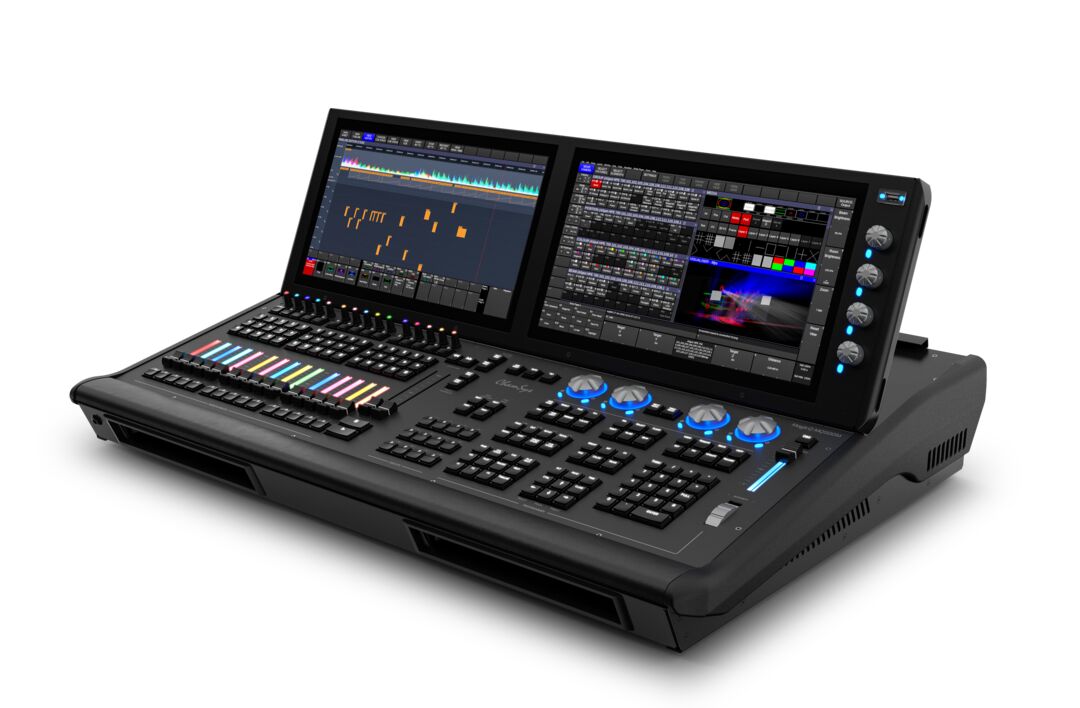

At home on the largest of shows, MagicQ MQ500M+ Stadium supports 400 universes direct from the console without the need for external processing. MQ500M+ introduces the ability to expand screen real estate via its two Display Port++ External Monitor ports, and adds inbuilt Wi-Fi for connection of Remote Focus application and an inbuilt 4-port Gigabit Network Switch.

MQ500M+ features RGB-illuminated faders and encoder playbacks, with 15 fully-motorised fader playbacks, 15 encoder playbacks and 12 backlit multi-purpose Macro/Execute/Playbacks/Palette keys, giving the console a total of 42 playbacks and providing programmers with a powerful work station well-suited for Concert & Touring, TV & Broadcast, Live Events, House of Worship and Theatre applications.

MQ500M+ also features dual HD resolution multi-touch 15” displays with adjustable viewing angles and multi-touch gesture support, for a more intuitive workflow. For additional control, connect a MagicQ MQ500M Stadium Wing and get even more playbacks and another touchscreen display as well.

MQ500M+ Stadium has inbuilt MagicVis 3D visualiser with high quality beam and gobo rendering, enabling you to pre-program shows offline and save time onsite. This versatile console comes with 4 DMX ports, an intensity wheel and 100-mm split crossfaders for theatre control.

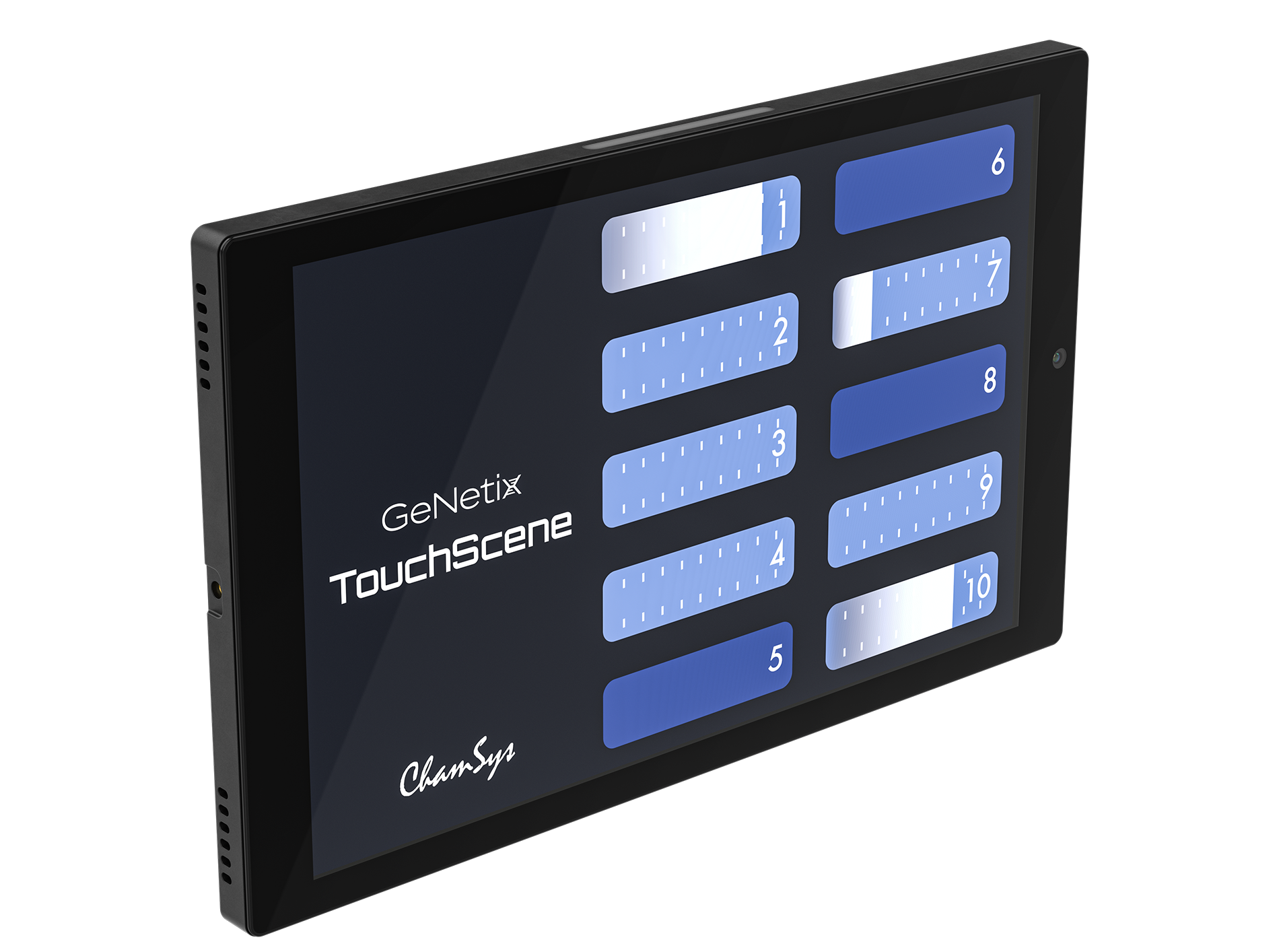

GeNetix TouchScene elegantly integrates with MagicQ or QuickQ systems and GeNetix nodes for remote Scene activation.

When connected to GeNetix Nodes, TouchScenes can be used to toggle on/off Scenes stored on GeNetix Nodes. When TouchScenes are used with MagicQ or QuickQ controllers, additional Scene level control is available. Connecting to a MagicQ control system allows for complete interface customisation, including custom icons and images as well as fully customising the items on the display.

Whether pairing with GeNetix Nodes or ChamSys controllers, TouchScene includes inbuilt layouts that allow its 8″ touchscreen to become a surface suitable for any installation. Along with the practical advantages and aesthetic appeal of graphic display customization, GeNetix TouchScene is PoE-powered, allowing integrators to easily add remote control to installations using standard Ethernet cable for connectivity.

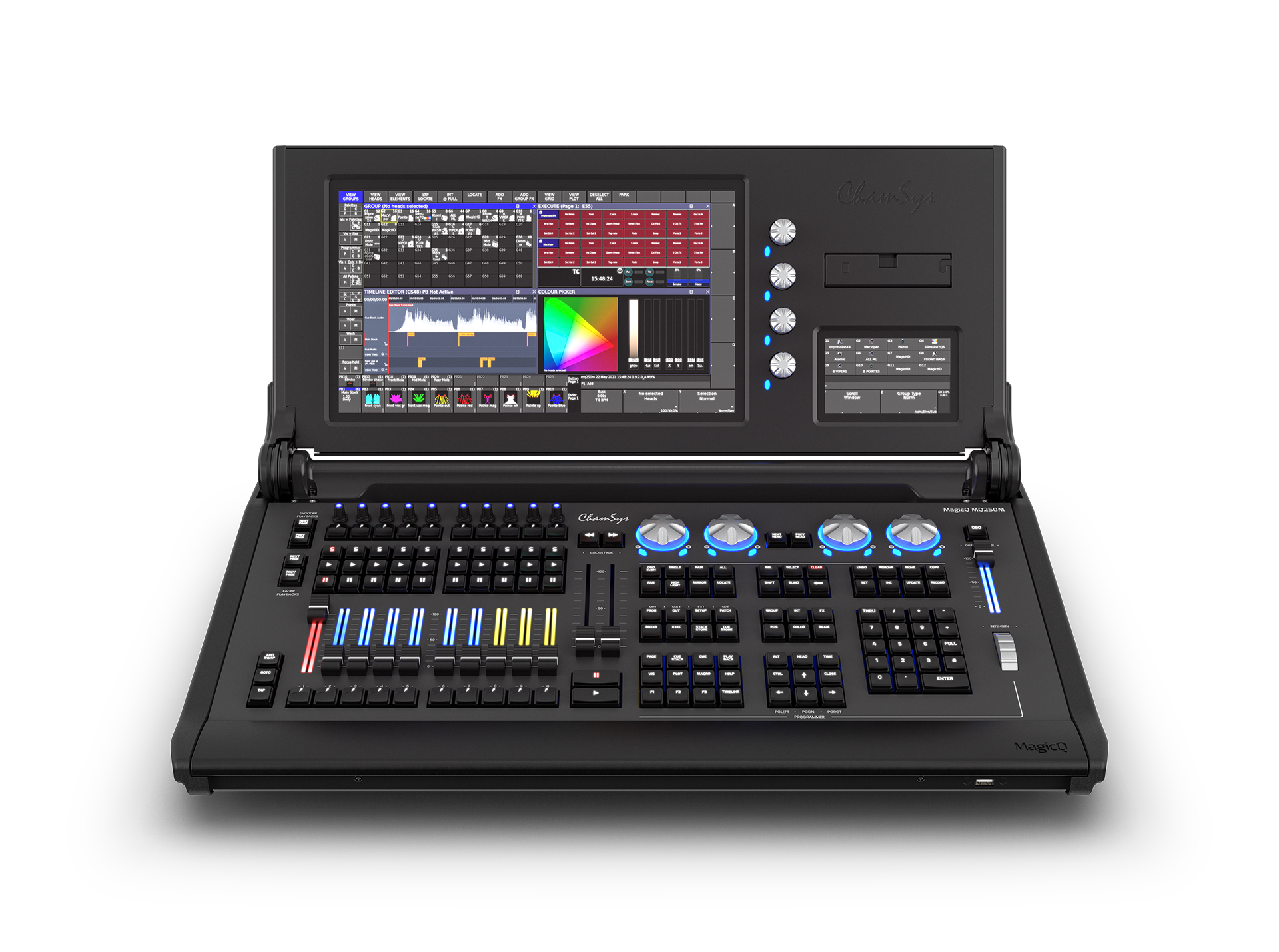

MagicQ MQ250M Stadium combines a high capacity of show control with portability for a complete on-the-go console solution. MQ250M has the ability to control up to 128 universes without any additional processing equipment with the ready-to-go MagicQ software you are already familiar with. 10 backlit and motorised faders and 10 backlit playback encoders with executors give you a lot of programming real estate in the small frame MQ250M is designed in.

• 64 universes direct from the console, with 128 universe upgrade option
• 10 fully motorised fader playbacks
• 10 encoder playbacks
• RGB illumination of playbacks
• Backlit buttons
• Inbuilt 15″ Multi HD touch display
• Dedicated 5″ Attribute/Encoder touch display
• Dual 100mm Manual Cross Faders
• 2 dedicated high power USBs for charging of phones/tablets
• Inbuilt Wi-Fi connects to MagicQ Remote control app

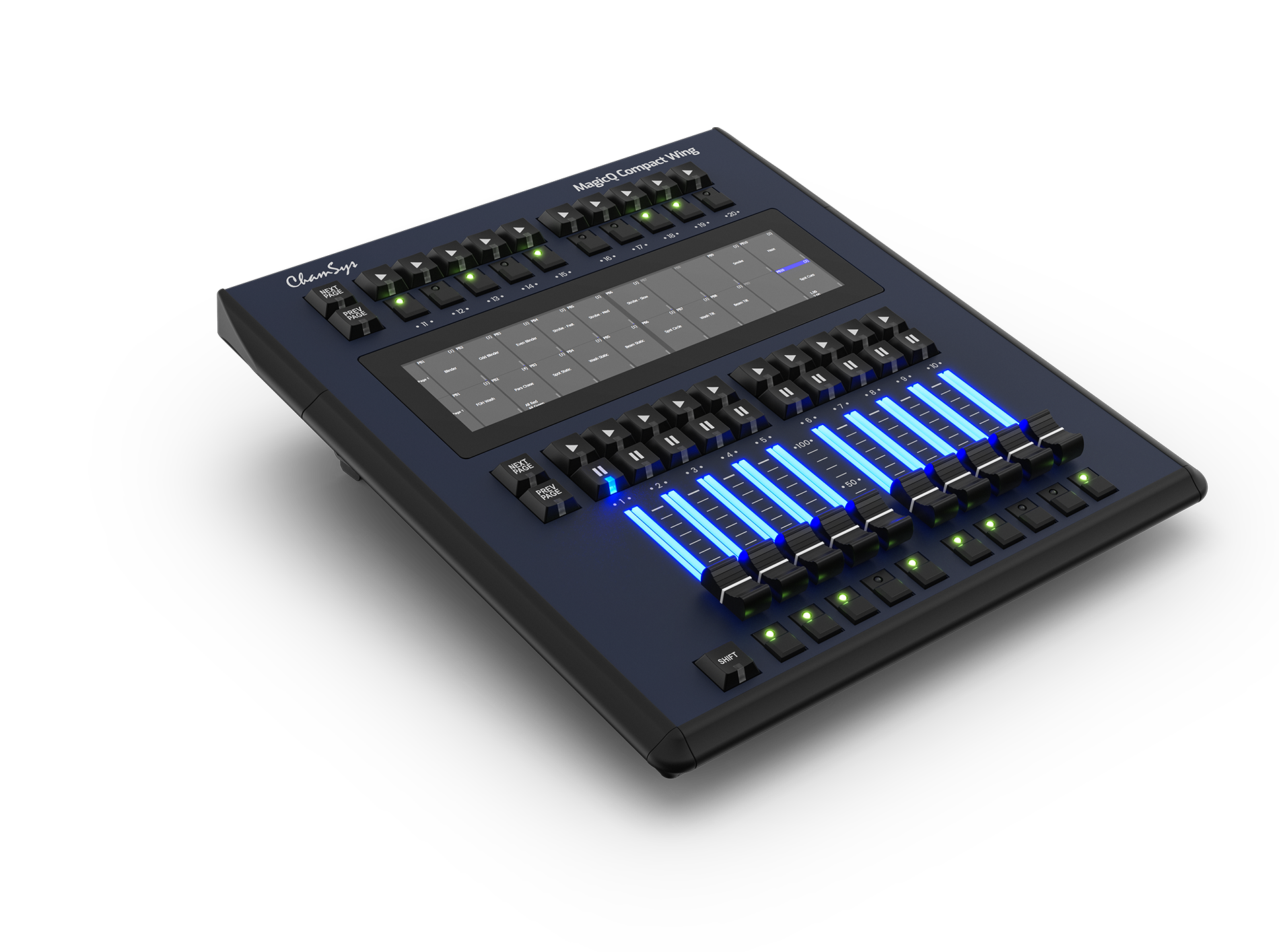

The new MagicQ Compact Wing enables MagicQ users to elegantly and efficiently expand their number of available physical playbacks.
Styled to pair with MagicQ Compact consoles, this versatile expansion wing is compatible with all current MagicQ Console and PC Systems.
Feature highlights include:

• 20 Playbacks with 10 Fader and 10 Executor playbacks
• Large full-colour high-resolution display for fully electronic playback legending
• Scalable system expansion via integrated USB hub for connecting multiple wings

In the fader section, each playback features Flash, Go and Pause buttons. The executor playback section includes Select and Flash buttons for each playback. Both playback sections can independently page through multiple playback pages.

In addition to the USB connections found on the rear panel are a dimmable working light socket and a Neutrik Powercon connector that locks securely into the wing’s built-in power supply.

With illuminated fader tracks, dual playback sections, and a balanced, portable form factor, MagicQ Compact Wing adds tactile playback control to any MagicQ system while perfectly matching the visual appeal of our MagicQ Compact series. Ideal for use in touring and events, as well as installation into theatres, schools, clubs, broadcast studios or any venue looking for modular expansion of existing MagicQ systems.

GeNetix Node 4 IP is a compact IP65-rated 4-port Ethernet-to-DMX Node that comes with multiple rigging options for easily mounting in your rig. Featuring 1 Network Port and 4 DMX Outputs that can be used as either DMX In or Out, Port Status LEDs, and the ability to be powered either via PoE or via Mains power to its PowerCon True1 Mains Input connector. This rugged and versatile device can be configured remotely over network via either its inbuilt Webserver, Art-Net or a ChamSys Console.

• 4 RDM DMX Ports supporting Input and Output
• Supports Art-Net & sACN
• IP65 Rated
• Webserver for remote configuration
• Can be Mains or PoE powered
• Webserver for remote configuration
• Core Mode Unlock of up to 2 MagicQ Instances when connected via Network
• M12 Threaded Insert for Clamp Mounting
• Built in Rail for secondary Safety bond when rigged
